| ₹ 260.94 includes GST and import duties. | |
| B2B customers can avail ₹ 39.79 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

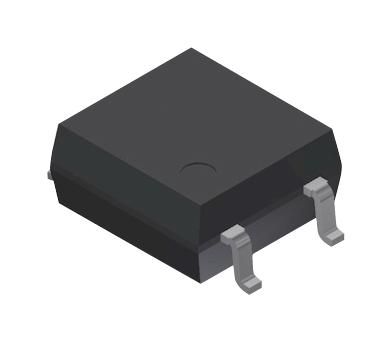

VOR1060M4T is an optically isolated 1 form A solid-state relay. This 1 form A opto-isolated relay comes in a low profile SOP-4 package making it suitable for space constrained high voltage designs. Applications include hybrid / electric vehicle applications, battery management, security systems, instrumentation, industrial controls.
- LED forward current, switch turn-on is 2mA typical at (IL = 50mA, delay = 10ms)
- LED forward current, switch turn-off is 0.2mA typical at (IL = 1?A)
- LED reverse current is 0.04?A typical at (VR = 5V)
- LED forward voltage is 1.4V typical at (IF = 10mA)
- LED reverse voltage is 10V typical at (IR = 10?A)
- Turn-on time is 0.3ms typical at (IF = 10mA, RL = 200 ohm, IL = 50mA)
- Turn-off time is 0.15ms typical at (IF = 10mA, RL = 200 ohm, IL = 50mA)
- Isolation voltage of 3750VRMS, low on resistance RON is 40 ohm typical
- Ambient temperature range from -40 to +125°C
- 4-pin SOP package
Product details
Other details
| Brand | VISHAY |
| Part Number | VOR1060M4T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 255.72 |
| 3-5 | ₹ 253.11 |
| 5-10 | ₹ 247.89 |
| 10+ | ₹ 242.67 |
Bulk discount will be automatically applied during checkout based on quantity.
