| ₹ 33853.32 includes GST and import duties. | |
| B2B customers can avail ₹ 5162.63 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

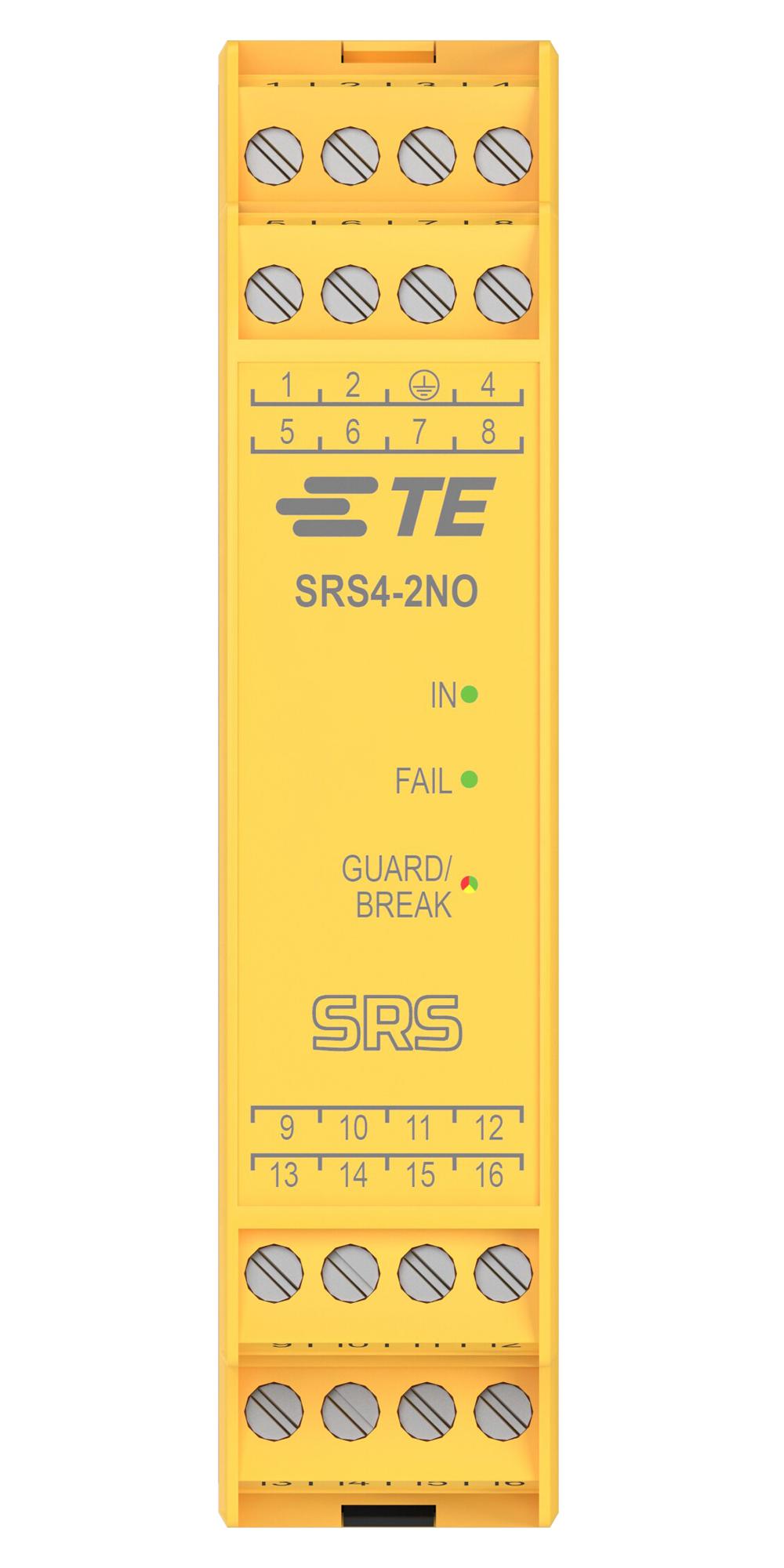

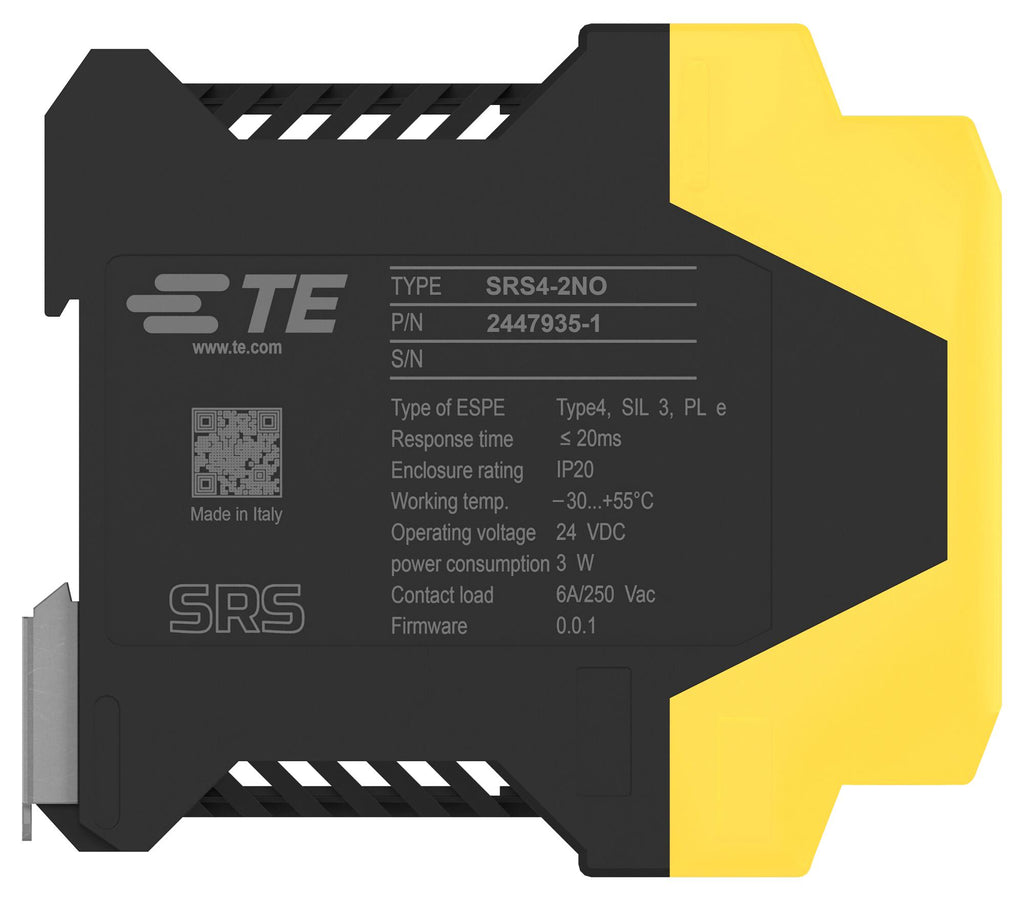

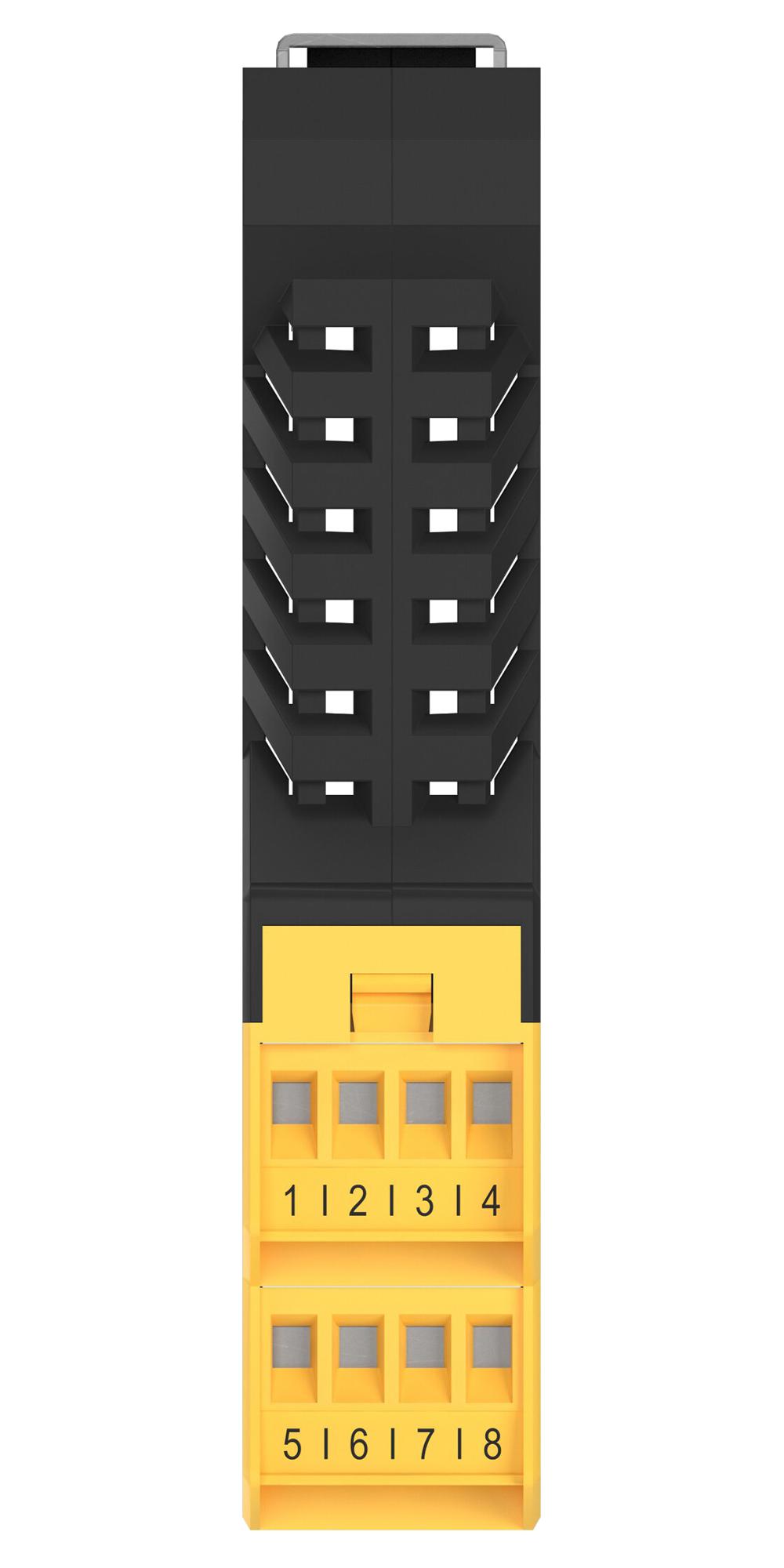

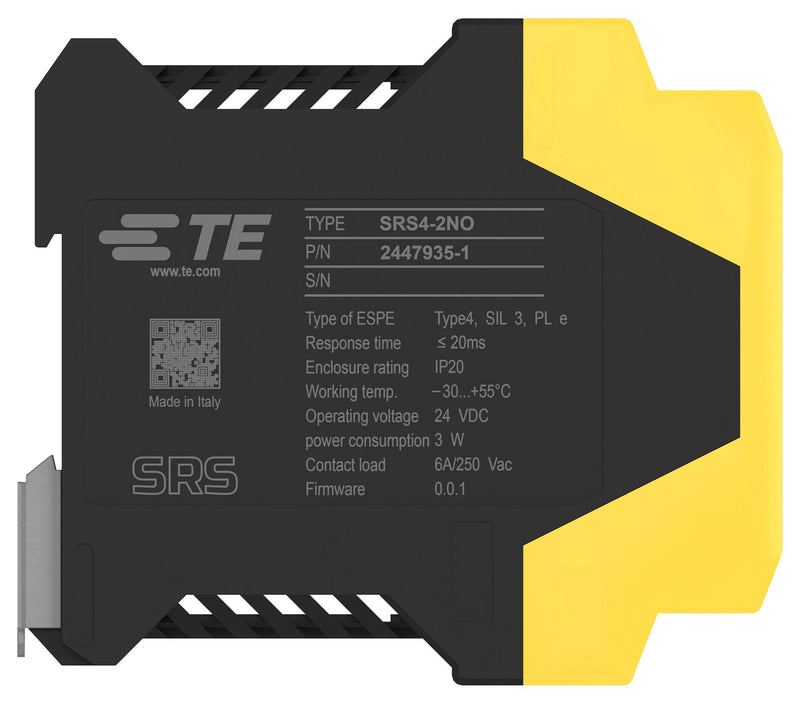

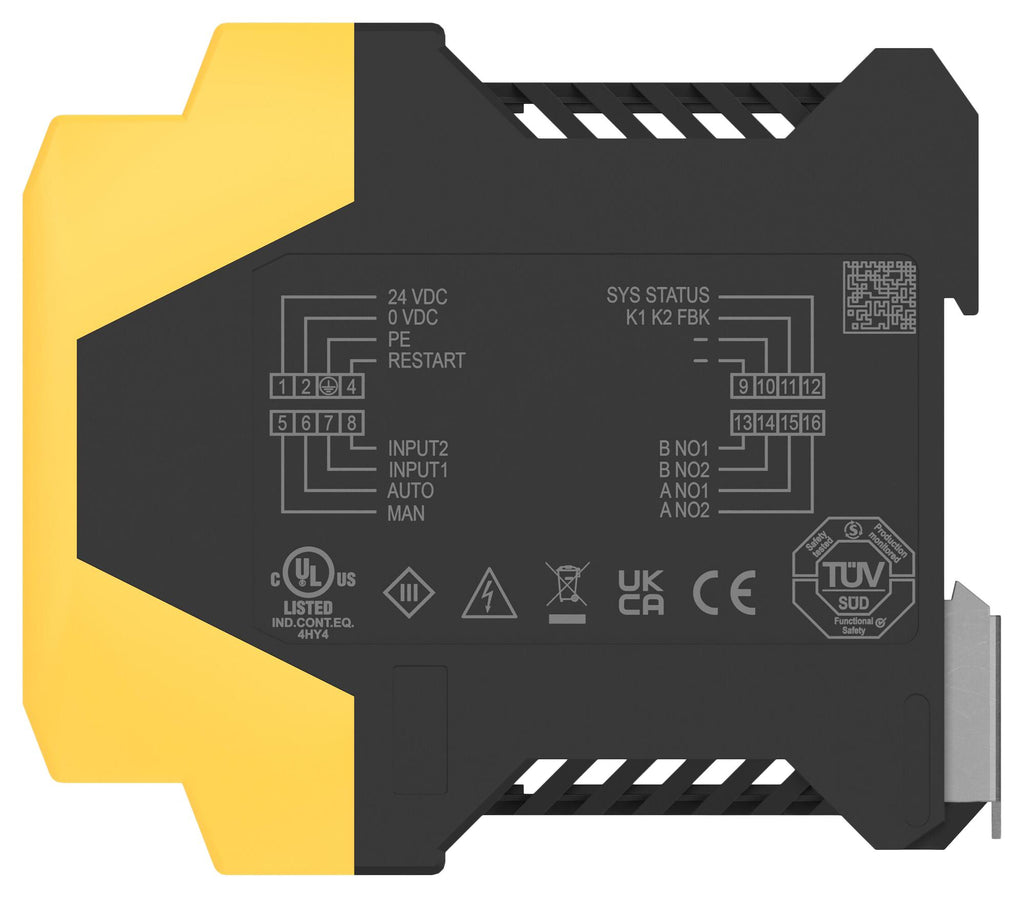

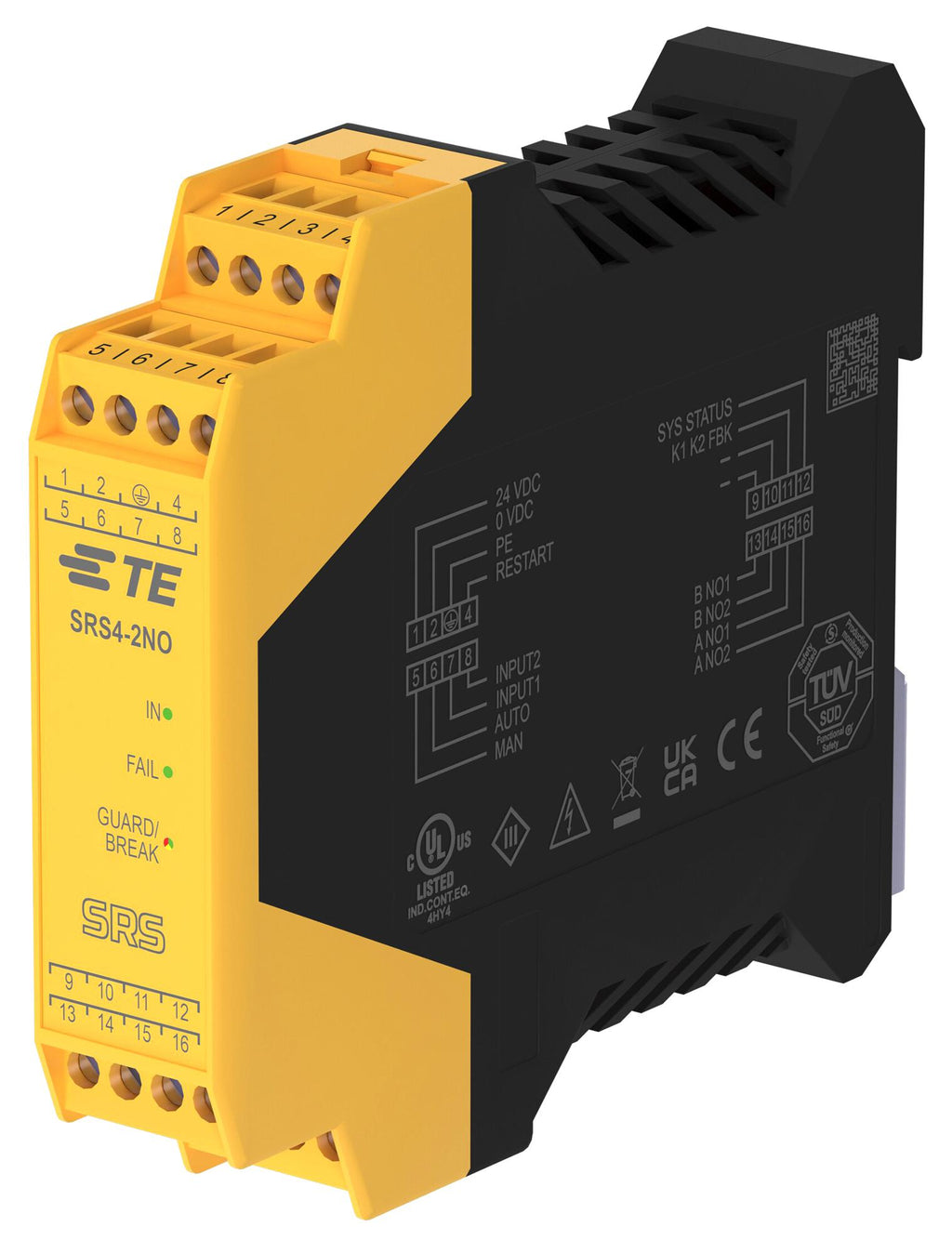

SRS4-2NO is a SRS series safety interface, single function relay. It is device used to control the safety-related part of control systems in such a way that machine operation is only allowed when safety is confirmed. It helps ensure safety by controlling signals coming from inputs like safety light curtains, emergency stop switches and locking switches and control equipment of the machine such as contactors and other devices connected to the outputs according to the results of this detection. It is a safety interface for 1 OSSD device (like SLC2 and SLC4 safety light curtains) and devices equipped with 2 solid state outputs.
- Two-hand controls, E-stops, safety photocells and speed monitoring
- 2 connection technologies screw clamp
- Pluggable connections, IP20 for housing, IP 2X for terminal block
- Rail fastening according to EN 50022-35
- 16 terminals blocks connections type, 250VAC/125VDC max contact switching voltage
- 24 ± 20%VDC power supply voltage, 15G's, 10 to 2000Hz vibration resistance range
- 6AC/DC max switching current, DIN rail product mount type
- 66 nylon housing material
- 99mm height, .89mm width, 113.5mm depth
- 20 years shell life, operating temperature range from -30 to 55°C
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | SRS4-2NO |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 33176.25 |
| 3-5 | ₹ 32837.72 |
| 5-10 | ₹ 32160.65 |
| 10+ | ₹ 31483.59 |
Bulk discount will be automatically applied during checkout based on quantity.
