| ₹ 5543.61 includes GST and import duties. | |
| B2B customers can avail ₹ 845.4 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

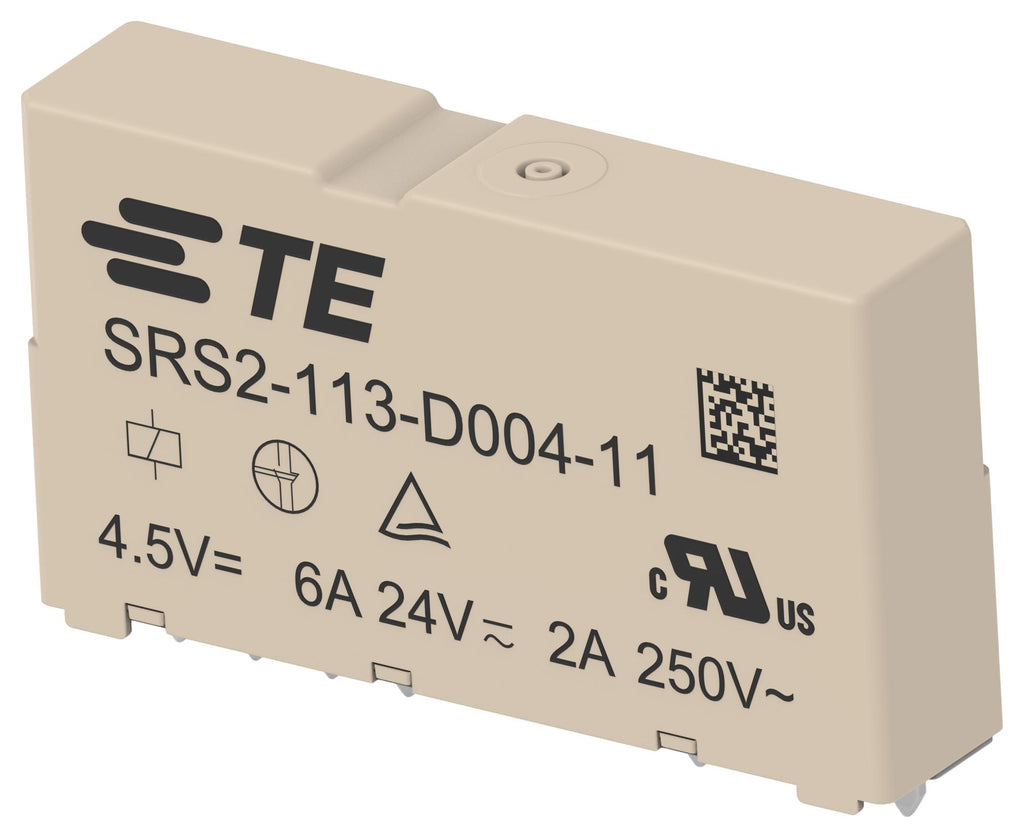

SRS2-113-D004-11 is a SRS2 force guided relay (IEC/EN61810-3 type A) for safety applications with limited space. The just 210mW coil power consumption helps allow a dense arrangement in hot environments. The NO contact can switch 2A/ 250V AC or 6A/ 24V AC/DC and is linked to a monitoring NC contact with a diagnostic coverage of 99% (IEC 61508-2). Applications include safety relay modules, safety controllers, programmable logic controllers (PLC�s), machines, presses, robots, emergency shut-off, light barriers, elevator and escalator safety control, railway level crossings and signalling.
- Slim 2 pole relay with force guided relay according to type A of IEC/EN 61810-3 (EN50205)
- 1 form A (NO) + 1 form B (NC) contacts
- 28 x 6 x 15.5mm small size
- Polarized magnet system with small coil power consumption (210mW)
- Reinforced insulation between NO and NC�circuit and between NO and relay coil
- Vertical - pin straight
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | SRS2-113-D004-11 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5432.74 |
| 3-5 | ₹ 5377.3 |
| 5-10 | ₹ 5266.43 |
| 10+ | ₹ 5155.56 |
Bulk discount will be automatically applied during checkout based on quantity.
