| ₹ 601.51 includes GST and import duties. | |
| B2B customers can avail ₹ 91.73 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

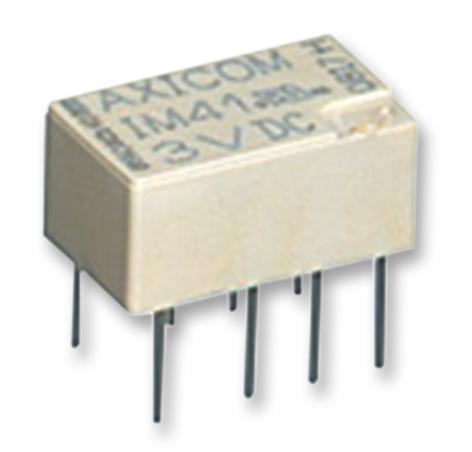

The IM07NS is a 2-pole Signal Relay with DC coil, IM series. 2 form-C (2CO) contact configuration, PdRu+Au covered contact. THT narrow terminal, slim line 10 x 6mm, low profile 5.65mm and minimum board-space 60mm². 2/5A switching current, 60W/62.5VA switching power and 220VDC/250VAC switching voltage. High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts. High mechanical shock resistance up to 50g functional.
- Mono-stable coil
- THT version
- Standard version
- RT V Environmental protection rating
- UL standard approved
- High mechanical shock resistance up to 300g functional
- Low coil power consumption
Industrial, Power Management, Automation & Process Control, Consumer Electronics, Medical, HVAC, Automotive
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | TE CONNECTIVITY |
| Part Number | IM07NS |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 589.48 |
| 3-5 | ₹ 583.46 |
| 5-10 | ₹ 571.43 |
| 10+ | ₹ 559.4 |
Bulk discount will be automatically applied during checkout based on quantity.
