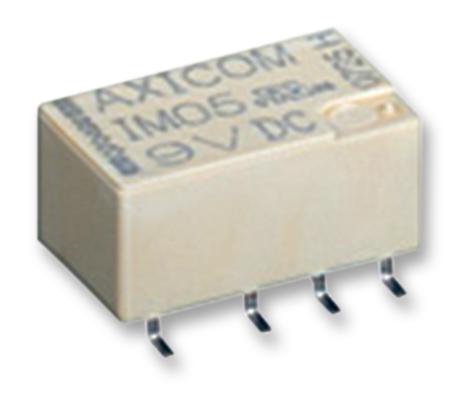

The IM series from TE Connectivity are signal relays. These are slim line, low profile, electromechanical power relay with 5.65mm height and typically used in miniature equipments. The IM series relays are available in several models such as standard and high dielectric, high current and high contact stability relays. It offers high dielectric and surge capability up to 2500Vrms between open contacts and 3000Vrms between coil and contacts.
- DPDT contact form
- Switching capacity of 2A, 5A at 220VDC and 250VAC based on models
- Switching power is 60W
- Monostable, bistable versions available
- Coil voltage ranges from 1.5 to 24VDC
- UL standard approved
- High mechanical shock resistance up to 300g functional
- Low coil power consumption
- Through hole and SMD terminals available
Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics, Test & Measurement, Automotive, Portable Devices
Product details
| Coil Voltage |
5VDC |
| Contact Configuration |
DPDT |
| Contact Current |
2A |
| Product Range |
IM Series |
| Relay Mounting |
SMD |
| Coil Type |
Non Latching |
| Relay Terminals |
Solder |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
220V |
| Contact Material |
Palladium Ruthenium |
| Coil Resistance |
178ohm |
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
IM03PGR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
