Description
Product Overview

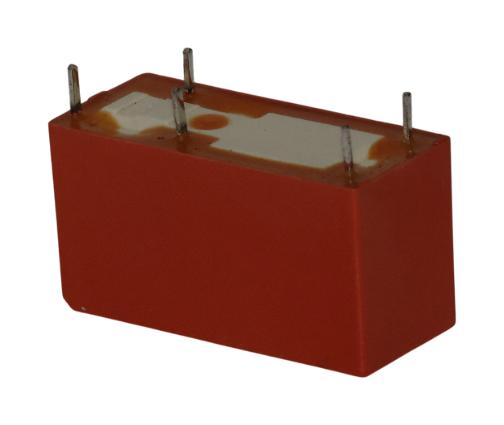

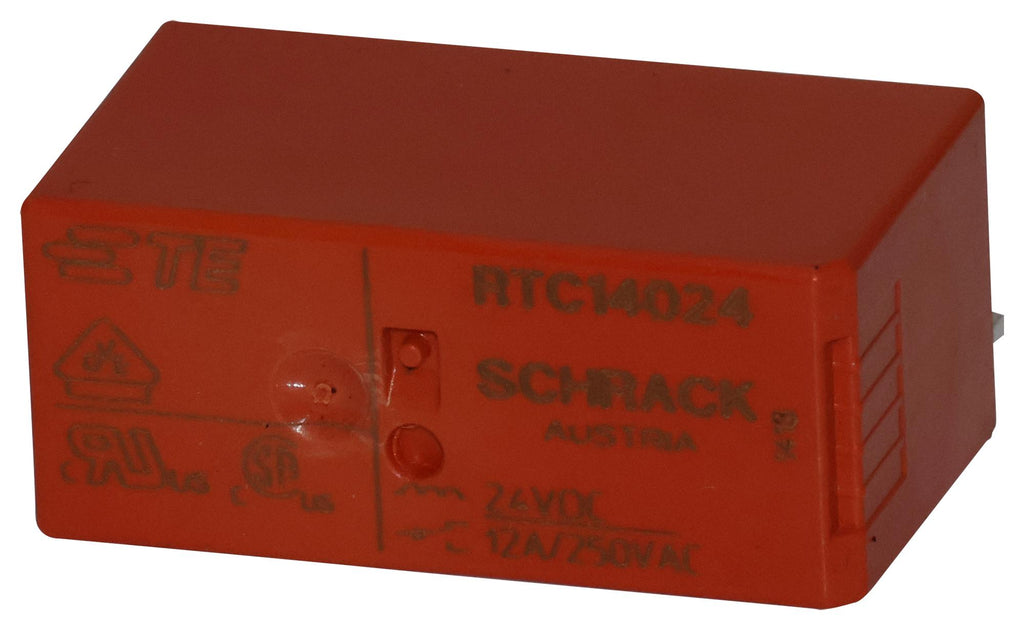

5-1393238-0 is a general-purpose, power PCB relay. It is approved by VDE Cert. No. 40007571, cULus E214025, cCSAus 1142018 CQC 20002275223 (China production), CQC 08001027262 (China production), CQC 18002197247 (monostable). Typical applications include boiler control, timers, garage door control, POS automation, interface modules.
- 5KV/10mm coil-contact, reinforced insulation
- Product in accordance to IEC 60335-1
- SPDT contact configuration
- 12A contact current
- 250VAC contact voltage
- 1.44Kohm coil resistance
- 20VDC coil voltage
- Ambient temperature range from -40 to +70°C AC coil
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 5-1393238-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
