Description
Product Overview

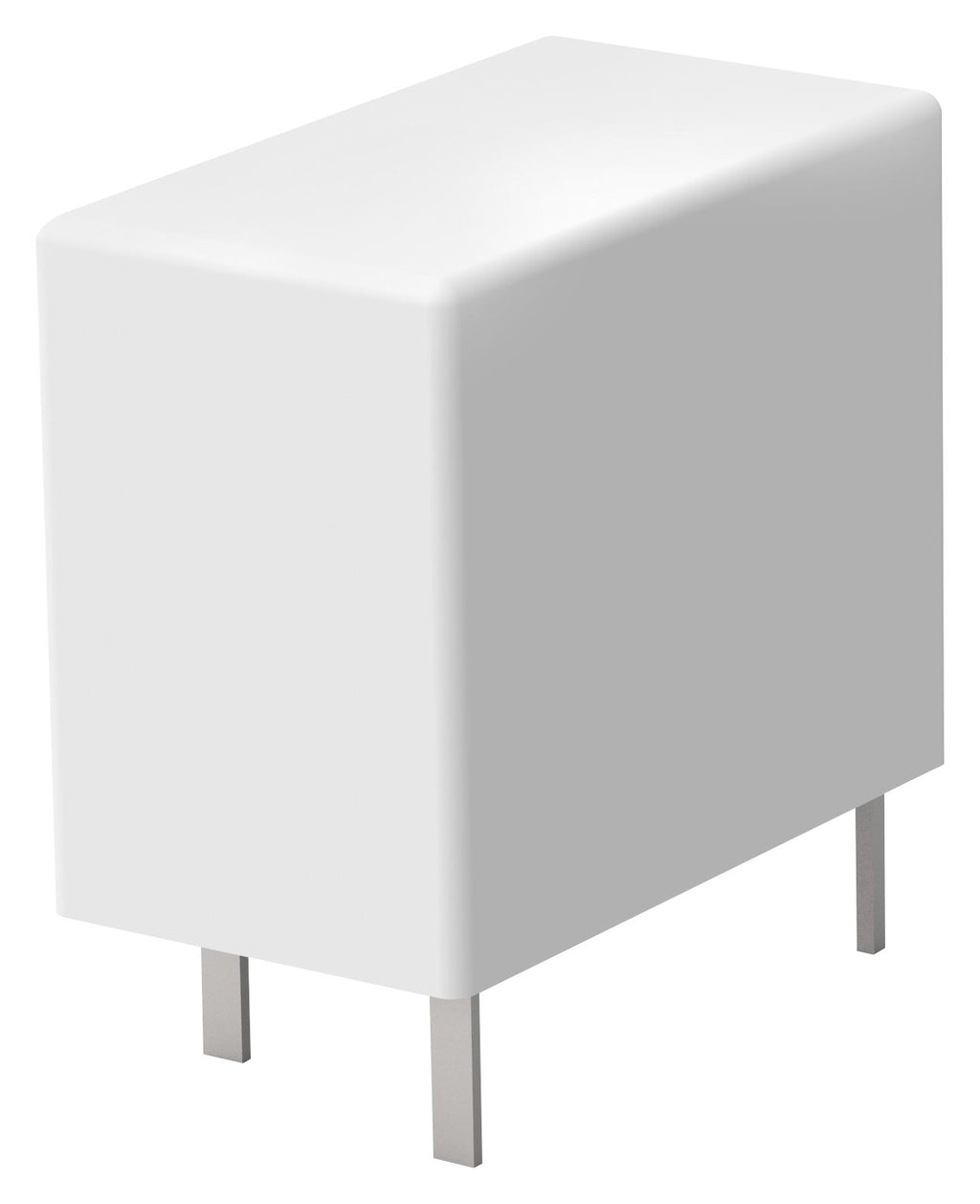

1721874-4 is a general-purpose, miniature PCB relay. It is approved by VDE 40007630, cULus E82292, CQC03001007764, TUV R 501391660014-0015. Typical applications include major home appliances, small appliances, HVAC, industrial control.
- 1-pole, 1 form A SPST-NO contact arrangement
- 405ohm coil resistance, 100mA at 5V minimum contact switching load
- 277VAC/30VDC maximum contact switching voltage
- 750Vrms insulation initial dielectric between open contacts
- 8A contact limiting breaking/continuous/making/short-time current
- 8A contact current rating, 9VDC coil voltage rating, 250VAC/30VDC contact voltage rating
- AgSnOInO contact, RTII environmental category of protection
- 0.2W coil power rating DC
- Maximum environmental ambient temperature is 70°C
- 14.7mm height, 18.2mm length, 10.2mm width
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 1721874-4 |
| Quantity | Each |
| Technical Data Sheet EN |  |
