Description
Product Overview

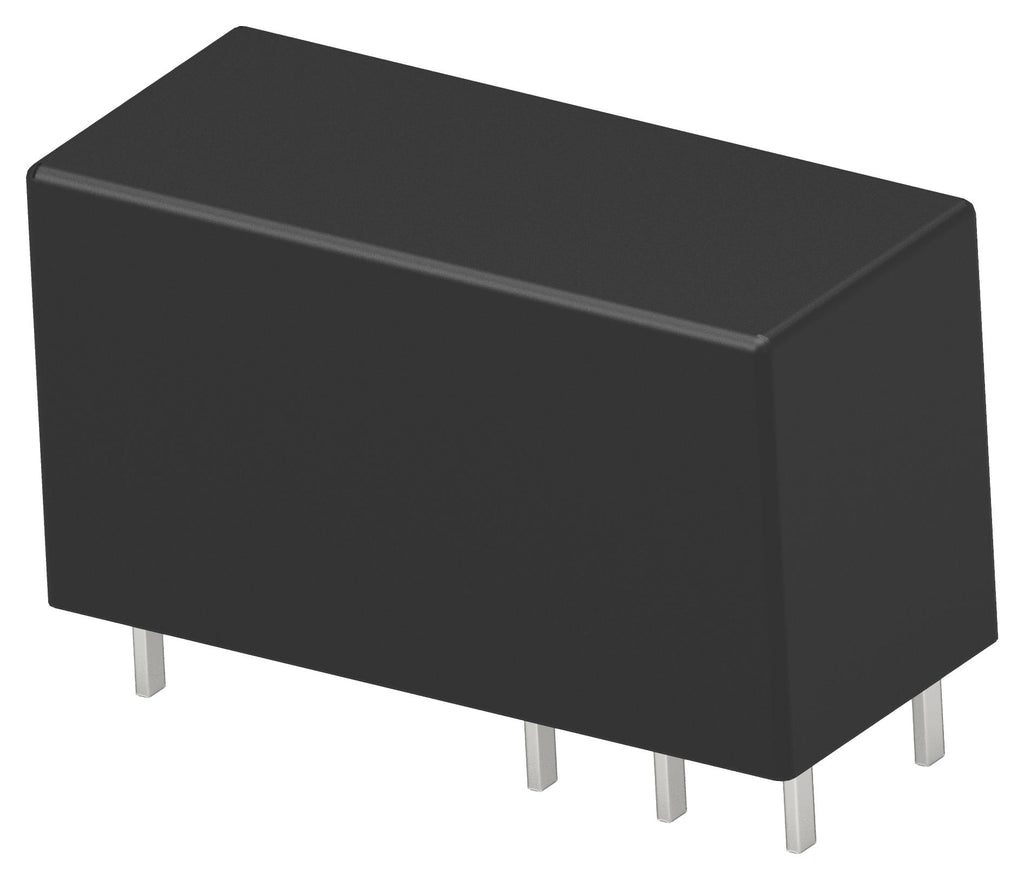

1-1393242-0 is a monostable, general purpose power relay.
- 1 Form C SPDT-CO contact arrangement, 1 contact number of pole
- 16A contact limiting breaking current, 4W coil power rating DC
- 200 ohm coil resistance, 9VDC coil voltage rating, 16A contact current rating
- 400VAC max contact switching voltage, 250VAC contact voltage rating
- AgNi90/10 contact material, printed circuit board mount type
- Dimension is (H x L x W) 15.7 x 29 x 12.7mm
- Max environmental ambient temperature is 85°C
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 1-1393242-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
