| ₹ 2795.59 includes GST and import duties. | |
| B2B customers can avail ₹ 426.33 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

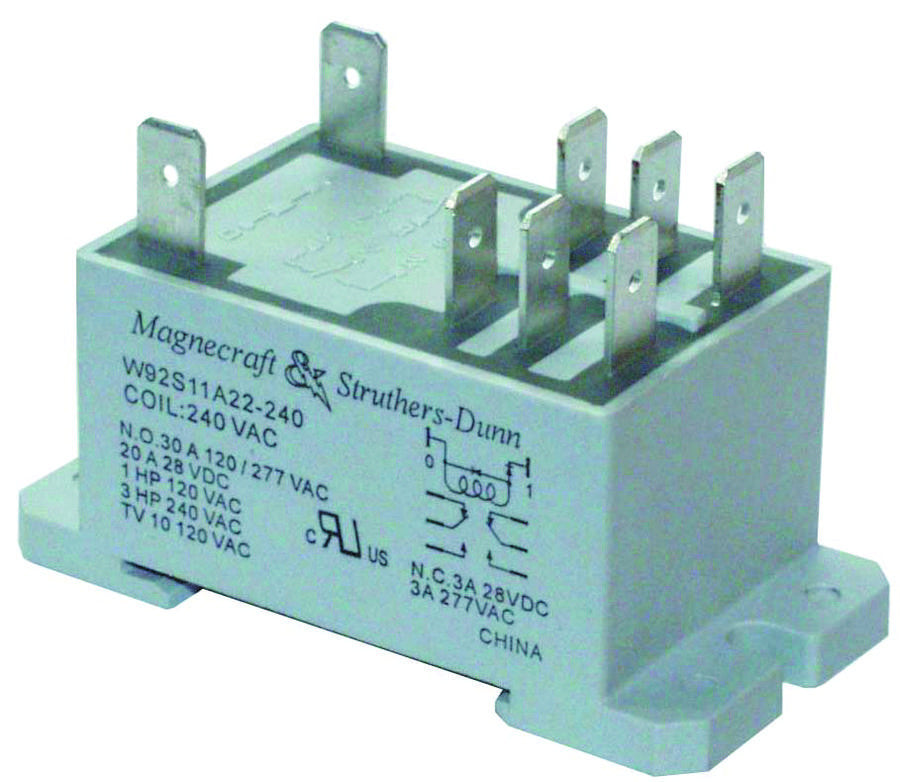

This is a RELAY, DPDT, 250VAC, 28VDC, 30A product from SCHNEIDER ELECTRIC/MAGNECRAFT with the model number 92S11A22D-120
Product details
| Contact Material | Silver Alloy |
| Relay Mounting | DIN Rail, Panel |
| Coil Type | - |
| Coil Resistance | 1.6kohm |
| Product Range | W92 Series |
| Relay Terminals | Quick Connect |
| Contact Current | 30A |
| Approvals & Standards | - |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 120VAC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 28VDC |
Other details
| Brand | SCHNEIDER ELECTRIC/MAGNECRAFT |
| Part Number | 92S11A22D-120 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2739.68 |
| 3-5 | ₹ 2711.72 |
| 5-10 | ₹ 2655.81 |
| 10+ | ₹ 2599.9 |
Bulk discount will be automatically applied during checkout based on quantity.
