| ₹ 3876.78 includes GST and import duties. | |
| B2B customers can avail ₹ 591.21 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

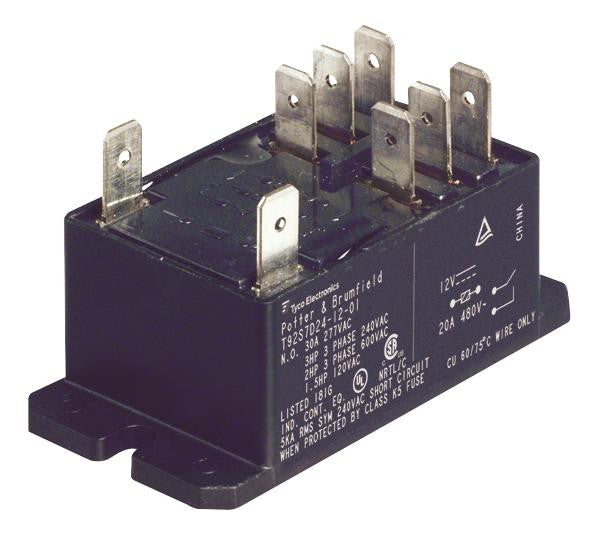

This is a General Purpose Relay, T92 Series, Power, Non Latching, DPST-NO, 12 VDC, 40 A product from POTTER&BRUMFIELD - TE CONNECTIVITY with the model number T92P7D12-12
Product details
| Contact Configuration | DPST-NO |
| Coil Voltage | 12VDC |
| Contact Current | 40A |
| Product Range | T92 Series |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Contact Voltage VAC | 277VAC |
| Relay Terminals | Solder |
| Contact Voltage VDC | 28VDC |
| Contact Material | Silver Cadmium Oxide |
| Coil Resistance | 86ohm |
| Approvals & Standards | CSA, UL, VDE |
Other details
| Brand | POTTER&BRUMFIELD - TE CONNECTIVITY |
| Part Number | T92P7D12-12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3799.24 |
| 3-5 | ₹ 3760.48 |
| 5-10 | ₹ 3682.94 |
| 10+ | ₹ 3605.41 |
Bulk discount will be automatically applied during checkout based on quantity.
