Description
Product Overview

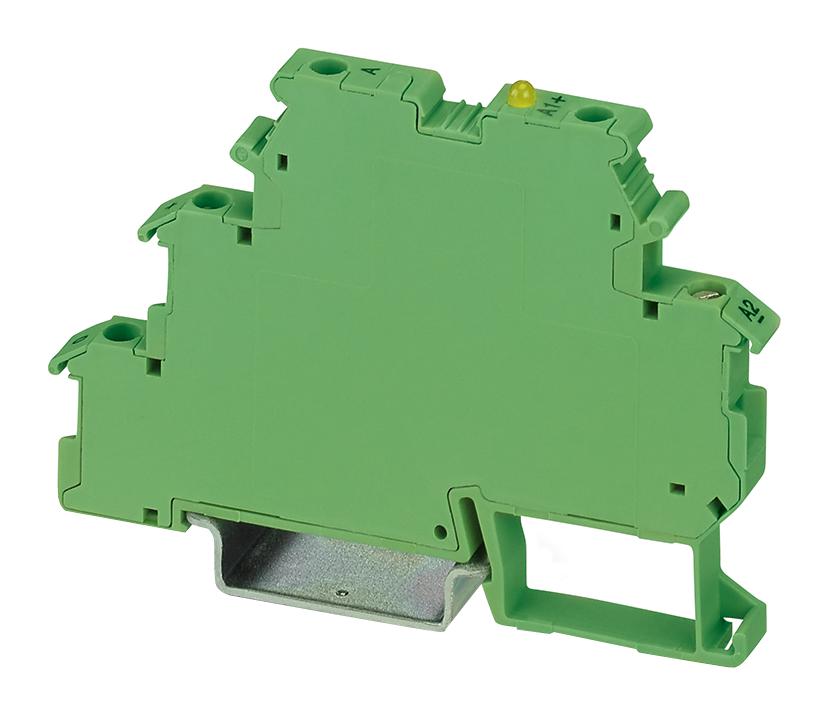

The 2940207 is a Solid State Relay Terminal Block with zero voltage switching mode and screw terminals. This DIN-rail-mount terminal block features EB-DIK insertion bridges, protection against polarity reversal and free-wheeling diode, integrated output protective circuit and input circuit. Labelling and mounting with user-friendly modular terminal blocks.
- Actuator version
- Wear-free switching
- Green LED status indicator
- 2.5mm² Maximum conductor cross section
- ?0.9V Maximum voltage drop
- 10mW Power dissipation
- 20µs Response and 200µs turn-off typical time
- -20 to 60°C Ambient operating temperature range
Applications
Industrial
Product details
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 2940207 |
| Quantity | Each |
| Technical Data Sheet EN |  |
