Description

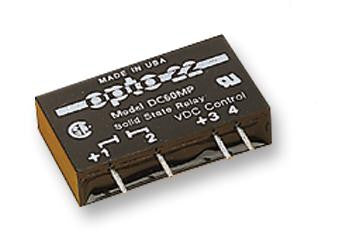

The DC60MP is a low profile DC control Solid-state Relay. The MP series SSRs provide 4000 VRMS of optical isolation and provide a wide operating temperature range of -40°C to +100°C.
- Rugged, Epoxy Encapsulation Construction
- 4000V of Optical Isolation
- Unique Heat-spreader Technology
- 1VDC Signal Dropout Voltage
- 1000R Signal Input Impedance
Applications
Automation & Process Control
Product details
| Relay Mounting | PCB |
| Control Voltage Max | 32VDC |
| Load Current | 3A |
| Control Voltage Min | 3VDC |
| Product Range | - |
| Relay Terminals | Through Hole |
| Operating Voltage Min | 5VDC |
| Switching Mode | DC Switch |
| Contact Configuration | - |
| Operating Voltage Max | 60VDC |
Other details
| Brand | OPTO 22 |
| Part Number | DC60MP |
| Quantity | Each |
| Technical Data Sheet EN |  |
