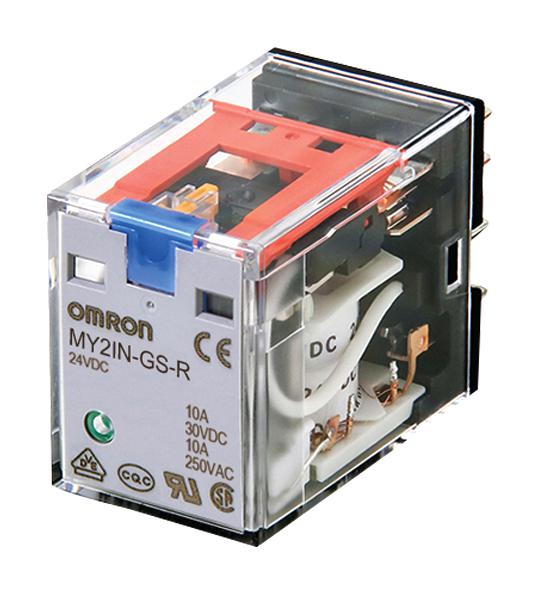

OMRON INDUSTRIAL AUTOMATION MY2IN-GS-R DC100/110 Power Relay, Miniature, DPDT, 110 VDC, 10 A, MY-GS-R Series, Socket, Latching

MY2IN-GS-R DC100/110 is a MY-GS-R series miniature power relay. Mechanical indicators added as a standard feature. Reduces wiring work by 60% when combined with the PYF-PU Push-In Plus Socket (according to actual OMRON measurements).

• A line-up of model with latching levers added for easier circuit checking
• Relays with AC and DC coils have different colours of operating indicators (LEDs)
• UL, CSA, IEC (VDE certification), and CQC
• 2 poles, DPDT contact configuration, with latching lever
• LED operation indicator and built-in mechanical indicators
• Standard model
• 100/110VDC operating coil voltage
• 10A at 250VAC, 10A at 30VDC rated load (resistive), 2500VA/300W max switching capacity (resistive)
• Ambient operating temperature range from -40 to 70°C (with no icing or condensation)
• 8.7 (9.0)/9.6 (9.9)mA rated current, 11440 (11,100)ohm coil resistance
