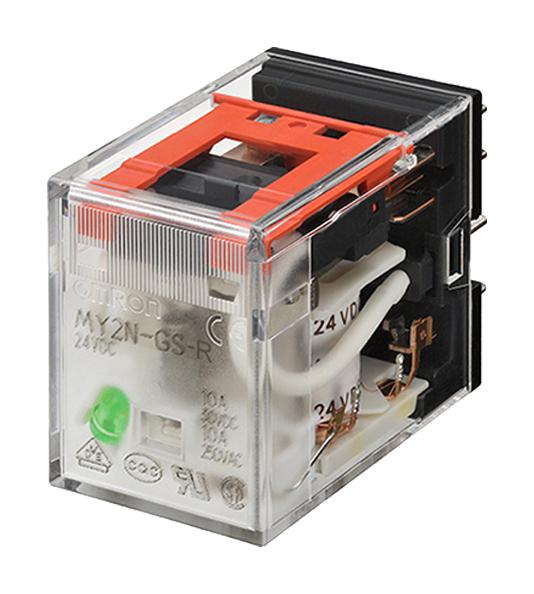

OMRON INDUSTRIAL AUTOMATION MY2-GS-R DC48 Power Relay, Miniature, DPDT, 48 VDC, 10 A, MY-GS-R Series, Socket, Non Latching

MY2-GS-R DC48 is a MY-GS-R series miniature power relay. Mechanical indicators added as a standard feature. Reduces wiring work by 60% when combined with the PYF-PU Push-In Plus Socket (according to actual OMRON measurements).

• A line-up of model with latching levers added for easier circuit checking
• Relays with AC and DC coils have different colours of operating indicators (LEDs)
• UL, CSA, IEC (VDE certification), and CQC
• 2 poles, DPDT contact configuration, without latching lever
• Built-in mechanical indicators
• Standard model
• 48VDC operating coil voltage
• 10A at 250VAC, 10A at 30VDC rated load (resistive), 2500VA/300W max switching capacity (resistive)
• Ambient operating temperature range from -55 to 70°C (with no icing or condensation)
• 17.6 (18.8)mA rated current, 2725 (2560) ohm coil resistance, 10.6H coil inductance (armature OFF)
