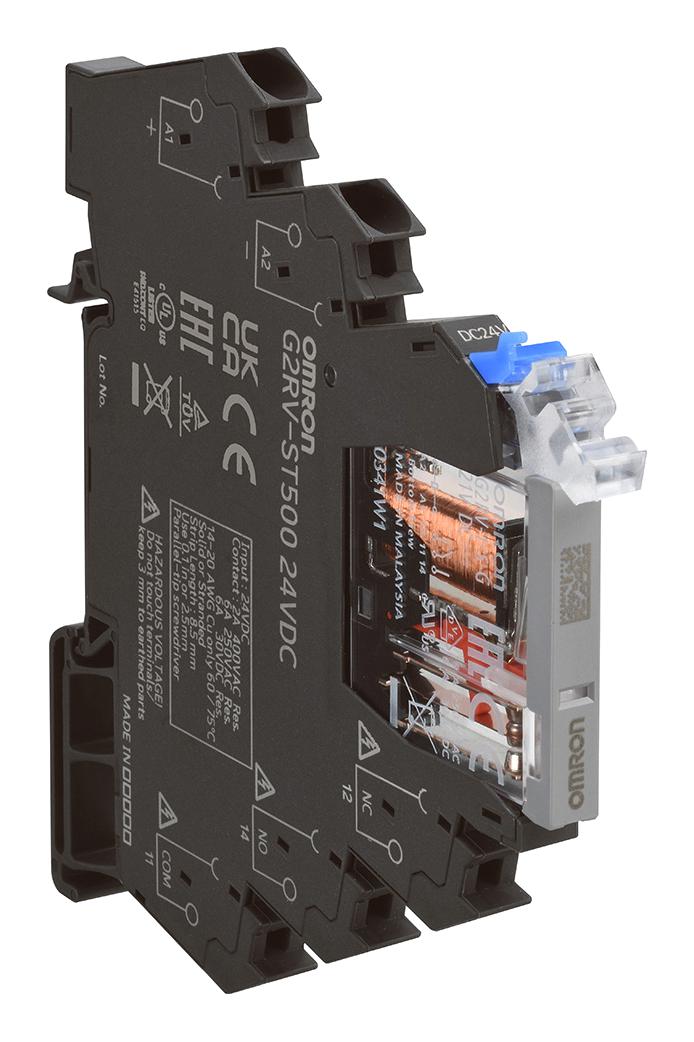

OMRON INDUSTRIAL AUTOMATION G2RV-ST500 24VDC Power Relay, Ultra Slim, SPDT, 24 VDC, 6 A, G2RV-ST Series, DIN Rail, Non Latching

G2RV-ST500 24VDC is a G2RV-ST series slim I/O solid state relay with integrated low profile socket. Slim I/O relay realizes space saving due to its high-density mounting and ultra-slim body. 60% reduction in wiring time and user-friendly with a low insertion force thanks to push-in plus technology. Complies with UL (File No.E41515), TÜV (File No.R50559210, EN61810-1), Lloyd�s (File No.LR23158192TA).

• 60% space saving from G2R series with 6.2 mm width technology
• Maximum 6A realized even with close-contact mounting
• Au-plated contacts suitable for micro loads with a failure rate P value of 1mA at 100mVDC
• Transparent case that allows for easy on-site visual checks of contact state abnormalities
• SPDT contact configuration, easy relay replacement with terminal structure that does not bend easily
• Operation check by test switch reduce inspection time, coil surge absorption circuit equipped as std
• Push-in plus terminal (wire connection)
• Without latching lever, standard contact structure, 6A at 250VAC/6A at 30VDC rated load (resistive)
• 24VDC rated input voltage, 13.5mA rated DC current
• IP20 rated, -40 to +55°C ambient operating temperature

Warnings

Do not touch the terminal section of the G2RV-ST or the surrounding area while the power is being supplied. Doing so may result in electric shock.
