Description
Product Overview

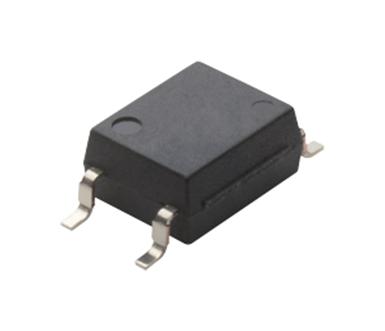

G3VM-61VR is a G3VM series, high-current and low-oN-resistance type MOSFET relay. Suitable for semiconductor test equipment, communication equipment, test & measurement equipment, security equipment, industrial equipment, power circuit, amusement equipment applications.
- SPST-NO (1 Form A) contact form
- AC / DC load type
- 60V max load voltage
- 1.4A load current
- 4 pin Special SOP package with surface-mounting terminals
- 0.8pF capacity between I/O terminals at f = 1MHz, VS = 0V, Ta = 25°C
- 3ms/1ms max turn-on/off time at IF = 5mA, RL = 200 ohm, VDD = 20V, Ta = 25°C
Product details
Other details
| Brand | OMRON |
| Part Number | G3VM-61VR |
| Quantity | Each |
| Technical Data Sheet EN |  |
