Description
Product Overview

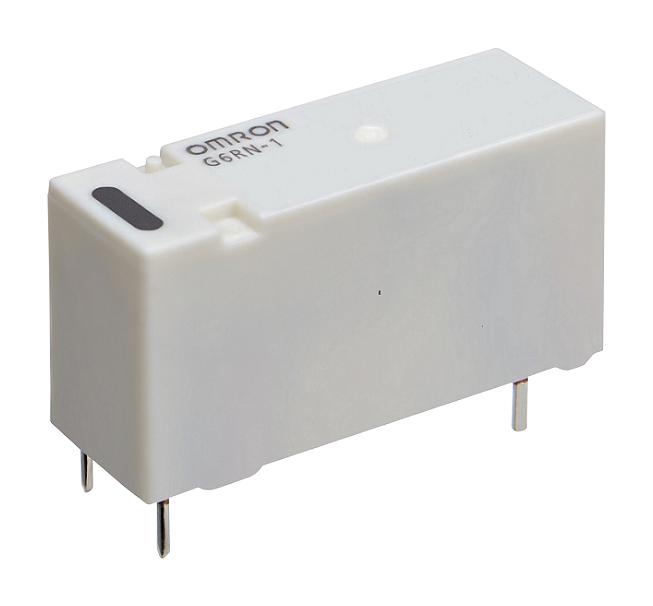

G6RN-17-E-ASI-CF-HA-DC24 is a PCB miniature power relay for 1-pole 10A switching. It offers high insulation with an insulation distance of 8mm and impulse withstand voltage of 10kV between coil and contacts. It meets the international safety standard regarding resistance to ignition. Application example includes air conditioner/HVAC (heat pump, boiler, etc.), industrial equipment (small FA controllers, inverters, servo amplifiers, temperature controllers, etc.).
- Low-profile height of 15mm
- High sensitivity with 220mW power consumption, standard model conforms to VDE standards
- 1-pole number of poles, SPDT (1c) contact form
- Flux-resistant type degree of protection, high-capacity type special functions
- AgSnIn contact material, Class F coil insulation class
- High-capacity type classification, 24VDC rated coil voltage
- 9.2mA rated current, 2.620 ohm coil resistance, Approx. 220mW power consumption
- Maximum switching voltage is 250VAC, 30VDC (resistive load)
- Maximum operate time is 15ms, maximum release time is 5ms
- Ambient operating temperature range from -40°C to 85°C
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G6RN-17-E-ASI-CF-HA-DC24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
