Description

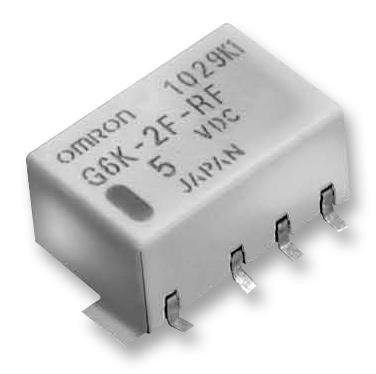

The G6K-2F-RF-DC5 is a 2-pole surface mounting High-frequency Relay with DC coil, G6K-RF series. DPDT (2CO) contact configuration, surface mounting terminals. Superior high-frequency characteristics (at 1GHz), such as an isolation of 20dB minimum between contacts of the same polarity or 30dB minimum between contacts of different polarity with an insertion loss of 0.2dB maximum. Rated power consumption of 100mW with high sensitivity.
- Single-side stable relay
- High-frequency compatible
- Plastic sealed type enclosure
Applications
Industrial, Power Management, Automation & Process Control, RF Communications
Product details
| Contact Material | Silver |
| Relay Mounting | SMD |
| Coil Type | Non Latching |
| Coil Resistance | 237ohm |
| Product Range | G6K-RF Series |
| Relay Terminals | Solder |
| Contact Current | 1A |
| Approvals & Standards | - |
| Contact Voltage VAC | - |
| Coil Voltage | 5VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 30VDC |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G6K-2F-RF DC5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
