Description
Product Overview

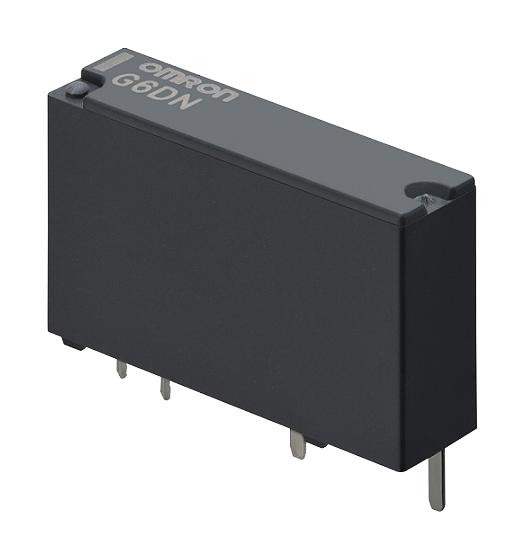

G6DN-1A-CF-DC12 is a PCB, SPST slim power relay for 5A switching. It features high switching capability 5A (250VAC and 30VDC), and high contact reliability by crossbar-twin contact. It meets application standards EN61010-1 and EN61010-2-201 for reinforced insulation (CTI 600V min. and Rated insulation voltage 300V). Application examples include programmable controller output, temperature controller, building automation, and output of control system.
- Slim 5mm width and miniature size, low power consumption 110mW
- 1 number of poles, SPST-NO (1a) contact form
- Fully sealed enclosure rating, standard (E-LIFE 80Kops) classification
- 12VDC rated coil voltage, 9.2mA rated current, 1.309ohm coil resistance
- Approximate power consumption is 110mW
- Maximum switching voltage is 277VAC, 125VDC, maximum switching current is 5A
- 100mohm maximum contact resistance, 1.000Mohm min. (at 500VDC) insulation resistance
- Cross bar twin contact type
- Maximum operate time is 10ms, maximum release time is 5ms
- Ambient operating temperature range from -40°C to +90°C
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G6DN-1A-CF-DC12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
