Description
Product Overview

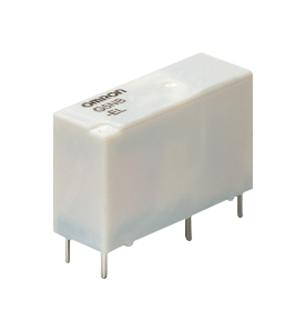

G5NB-1A4-EL-HA-CF DC24 is a slim compact PCB power relay. It features a minimum of 200,000 operations durability at 5A (250VAC) switching. This device is IEC/EN 60335-1, and IEC/EN 60079-15 conformed. Applications include home appliances, industrial equipment, and building automation.
- 1-pole, SPST-NO (1a) contact form, fully sealed enclosure rating
- High capacity and electrical durability, IEC/EN 60335-1 conformed
- 24VDC coil voltage, 8.3mA rated current
- 2880 ohm coil resistance, Ag-alloy (Cd free) contact material
- 5A at DC, 7A at AC rated carry current, 250VAC, 30VDC maximum switching voltage
- 5A at DC, 7A at AC maximum switching current
- Ambient operating temperature range from -40°C to 85°C (with no icing or condensation)
- 1,000Mohm minimum insulation resistance
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G5NB-1A4-EL-HA-CF DC24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
