Description
Product Overview

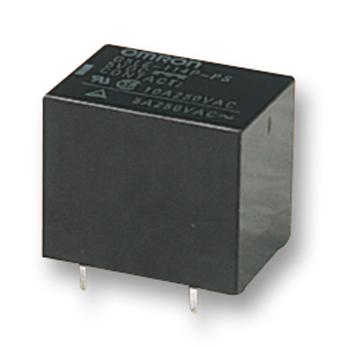

The G5LE-14 12DC is a 1-pole cubic Power PCB Relay with DC coil, G5LE series. SPDT contact configuration, PCB terminals. UL class-B coil insulation for standard model. UL, CSA, EN standards approved and conforms to Electrical Appliance and Material Safety Law (300V maximum).
- Fully sealed enclosure
- SPST-NO, SPDT contact configurations
- UL, CSA and VDE standards approved
- Switching capacity of 10A at 120VAC and 8A at 30VDC
- Selectable coil voltage of 5VDC, 12VDC, 24VDC
- Ambient operating temperature is 85°C
Applications
Industrial, Power Management, Automation & Process Control, Consumer Electronics
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G5LE-14 DC12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
