Description
Product Overview

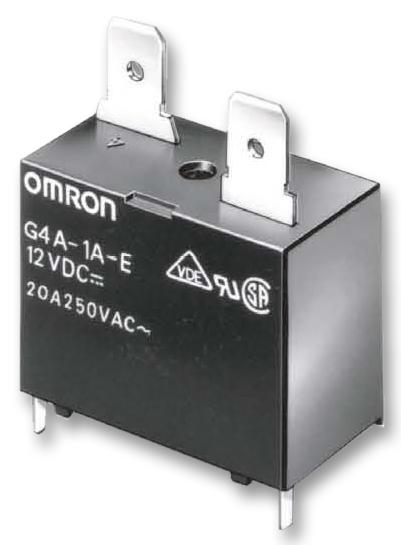

The G4A-1AE 12DC is a 1-pole Miniature Relay with high switching power and long endurance. SPST-NO (1a) Silver alloy contact. This G4A-series miniature relay features #250 quick-connect or PCB coil terminals, through hole mounting, solder relay terminal with non-latching coil.
- Highly noise-resistive insulation materials employed
- 20ms Maximum operate time
- 1000M? (at 500V DC) Insulation resistance
- 4500Vrms for one minute Dielectric strength between open contacts
- -20 to 60°C Operating temperature range
- 5 to 85% Humidity
Applications
HVAC
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G4A-1AE DC12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
