Description
Product Overview

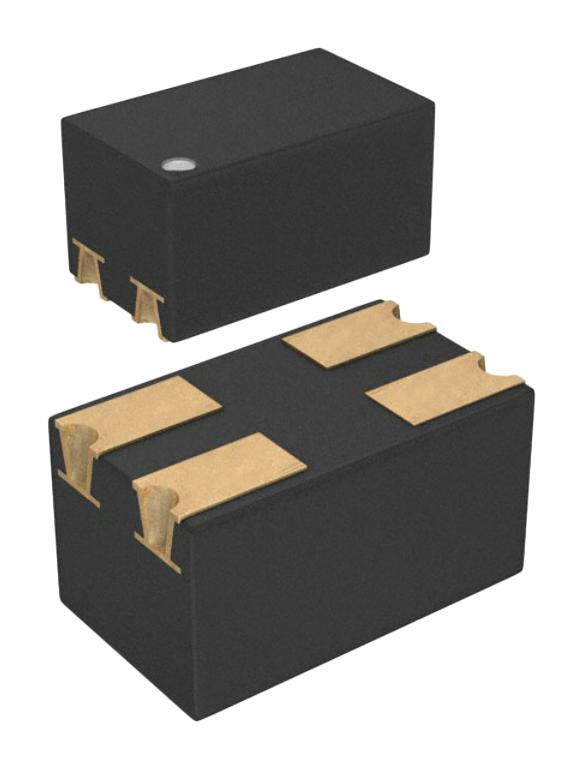

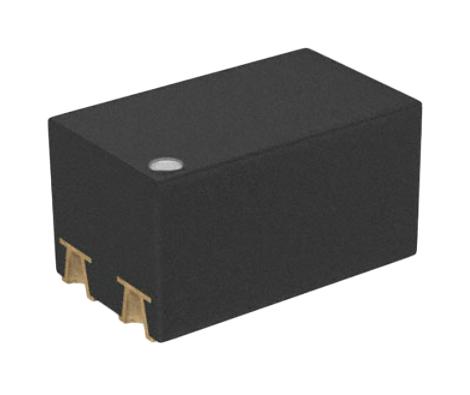

G3VM-41UR12 is a MOS FET relay with low output capacitance and ON resistance type (Low C × R). Application examples includes semiconductor test equipment, test & measurement equipment, communication equipment, data loggers.
- 40V load voltage, 1a (SPST-NO) contact form
- 100mA continuous load current
- Input LED forward voltage is 1.27V typ (IF=10mA, Ta = 25°C)
- Maximum resistance with output ON is 15ohm typ (IF=5mA, t<1s, Ta = 25°C)
- Capacity between I/O terminals is 1pF typ (f=1MHz, VS=0V, Ta = 25°C)
- Turn-ON time is 0.05ms typ (IF=5mA, RL=200 ohm, VDD=20V, Ta = 25°C)
- Turn-OFF time is 0.03ms typ (IF=5mA, RL=200 ohm, VDD=20V, Ta = 25°C)
- Surface-mounting terminals
- 4 pin VSON package, ambient operating temperature range from -40 to +85°C
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G3VM-41UR12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
