Description
Product Overview

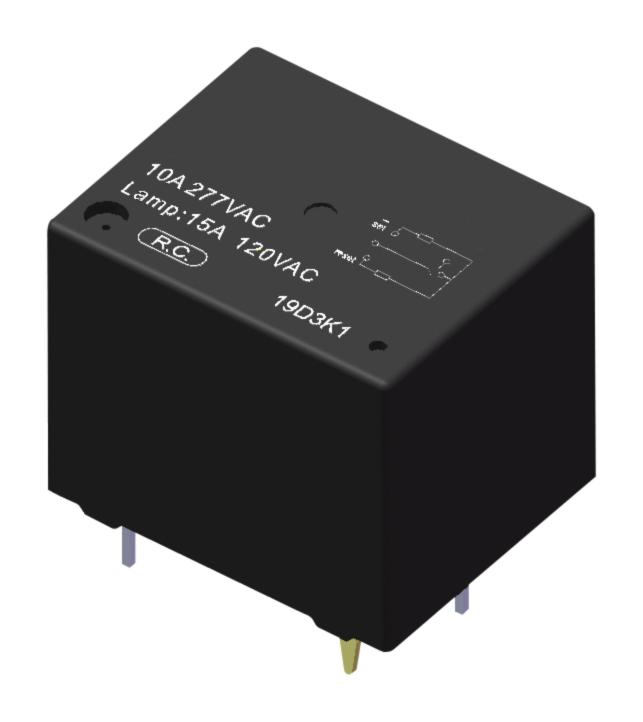

MPHKE19-S-DC5V-C-L2 is a PCB type power relay.
- Magnetic latching relay, 15A of switching capability
- SPDT contact form, Ag alloy contact material
- Dielectric strength of 2700V between coil and contacts
- 100mohm (6VDC/1A) max contact resistance, 8ms max operate time, 5ms max release time
- 100Mohm, 500VDC min insulation resistance, 5-85% RH humidity
- 1×10^7 operations mechanical life
- 5VDC coil volage, 10A contact current, 277VAC contact voltage
- 31.5ohm coil resistance, SPDT contact configuration
- Outline dimension is 19mm × 15.5mm × 15.8mm
- Operating temperature range from -40°C to +85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPHKE19-S-DC5V-C-L2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
