Description
Product Overview

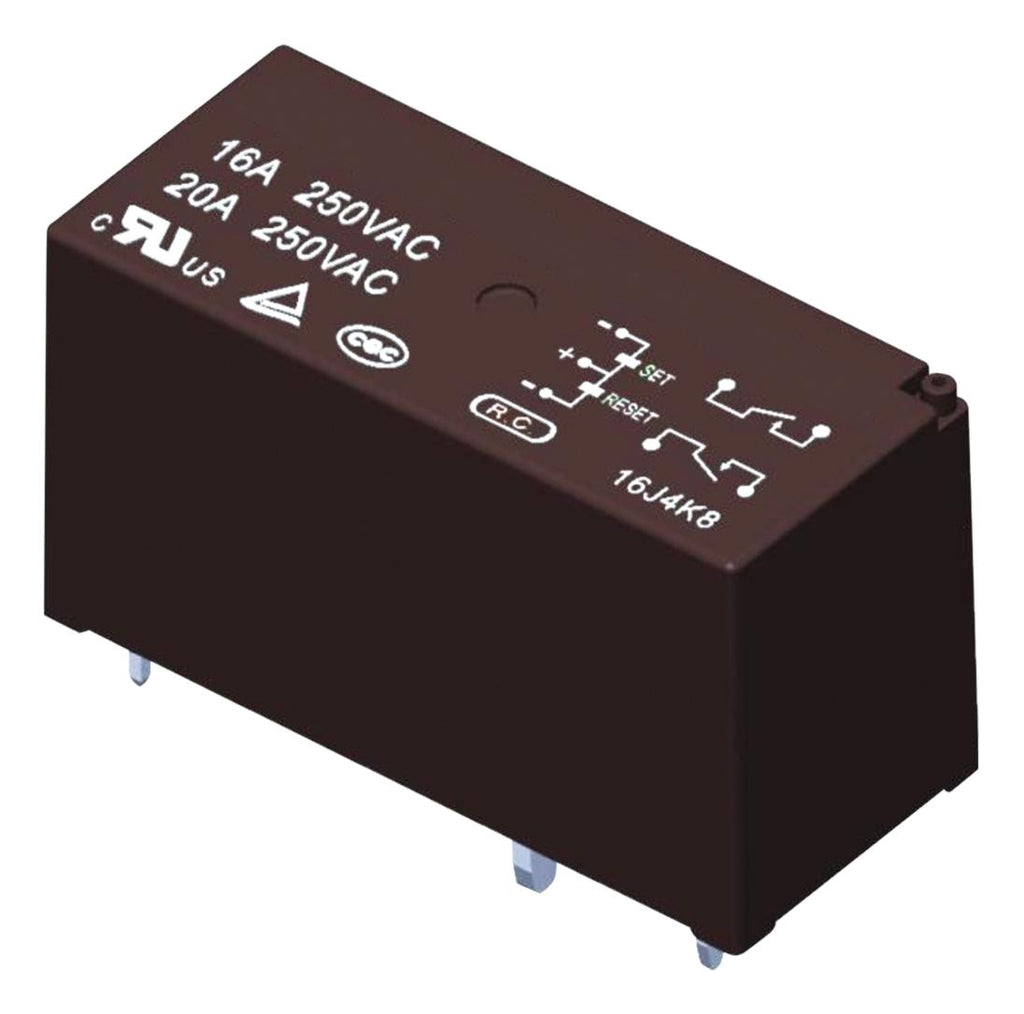

MPHKE16H-S-DC5V-2A-L1 is a PCB type power relay.
- DPST 16A magnetic latching relay, maximum surge current is 350A/2ms
- Energy-saving and environmental
- 2 Form A, 2 Form B contact form, Ag alloy contact material
- 50mohm (6VDC/1A) max contact resistance, 1000Mohm 500VDC min insulation resistance
- 15ms max operate time and release time, 5-85%RH, 40°C humidity
- 5VDC nominal voltage, 42ohm ±10% coil resistance, 4VDC operate voltage
- 4VDC reset voltage, 0.6W coil power, 30m pulse width
- Operating temperature range from -40°C to +85°C
- Outline dimension is 29mm × 12.7mm × 16.0mm
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPHKE16H-S-DC5V-2A-L1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
