Description

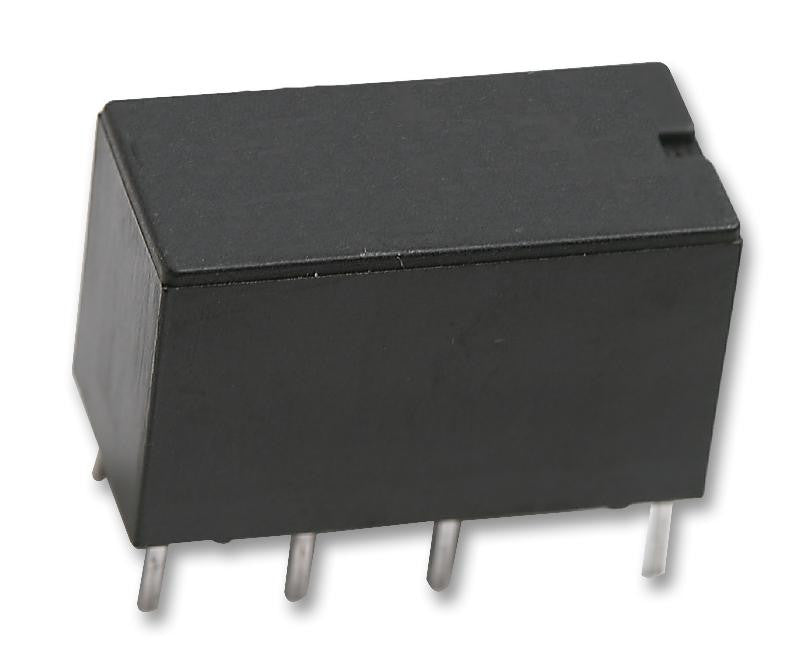

The HRS2H series from Multicomp are microminiature signal relays. These are high sensitive, plastic sealed and high switching capacity relays.
- 20.3mm x 9.9mm x 11.4mm size
- DPDT contact configuration
- Coil sensitivity of 450mW
- Coil voltage of 5VDC, 9VDC, 12VDC and 24VDC
- Contact rating of 1A and 2A at 120VAC or 24VDC
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Alloy |
| Relay Mounting | Through Hole |
| Coil Type | - |
| Coil Resistance | 1.28kohm |
| Product Range | HRS2 Series |
| Relay Terminals | Solder |
| Contact Current | 2A |
| Contact Voltage VAC | 120V |
| Coil Voltage | 24VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 24V |
Other details
| Brand | MULTICOMP |
| Part Number | HRS2H-S DC24V |
| Quantity | Each |
| Technical Data Sheet EN |  |
