Description

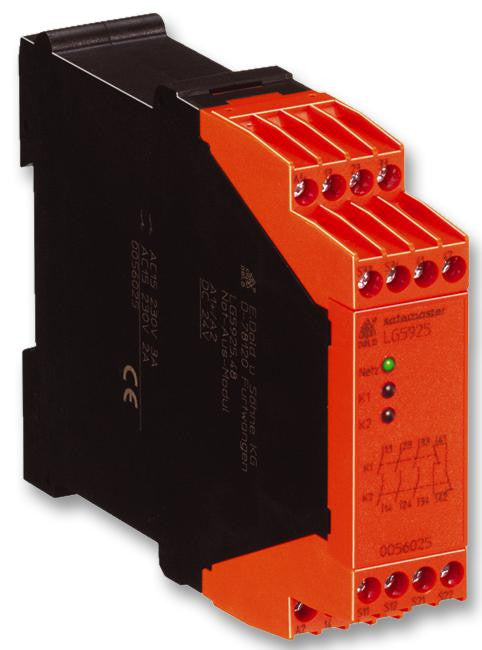

The LG 5925.48 AC/DC 24V is an Emergency Stop Module with 3PST-NO/SPST-NC contacts, DIN-rail mount and screw terminals. This LG 5925-series module features line fault detection on On-button. Manual restart or automatic restart when connecting the supply voltage, switch S2. With or without cross fault monitoring in the E-stop loop, switch S1. LED indicator for state of operation.
- Single and 2-channel operation
- Removable terminal strips
- 2 x 1.5mm² stranded ferruled (isolated) wire connection
Applications
Safety, Lighting
Warnings
According to IEC/EN 60 204-1 part 9.2.5.4.2 and 10.8.3 is not allowed to restart automatically after emergency stop. Therefore machine control has to disable the automatic start after emergency stop.
Product details
| Contact Voltage DC Nom | - |
| Contact Material | - |
| Relay Mounting | DIN Rail |
| Product Range | LG 5925 Series |
| Relay Terminals | Screw |
| Contact Current | 3A |
| Approvals & Standards | - |
| Contact Voltage AC Nom | 230V |
| IP Rating | IP20, IP40 |
| Coil Voltage | 24VDC |
| Contact Configuration | 3PST-NO, SPST-NC |
Other details
| Brand | DOLD & SOEHNE |
| Part Number | LG 5925.48 AC/DC 24V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 34959.63 |
| 3-5 | ₹ 34602.9 |
| 5-10 | ₹ 33889.44 |
| 10+ | ₹ 33175.97 |
Bulk discount will be automatically applied during checkout based on quantity.
