Description

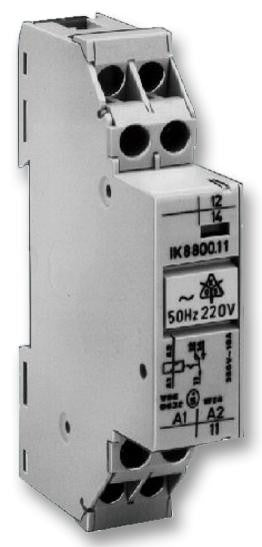

The IK 8800.11 AC 50HZ 230V from Dold & Soehne is a remote switch. The contacts are actuated with every current pulse and they stay in the operating position they have adopted in each case until the next pulse occurs. It is possible to actuate the contacts manually by pressing a pushbutton provided on the unit. The contact position is shown by an indicator.
- SPDT contact configuration
- According to IEC/EN 60 669
- Optionally contacts with up to a maximum of 4 changeover contacts
- Pushbutton for manual actuation of the contacts
- Operating position display
- Dimension is 17.5mm x 89mm x 58mm
- Nominal voltage is 230V
- Contact current is 16A
- Contact voltage is 230VAC
- Temperature range from -20�C to 45�C
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | - |
| Relay Mounting | DIN Rail |
| Coil Type | AC |
| Coil Resistance | - |
| Product Range | IK 8800 Series |
| Relay Terminals | Screw |
| Contact Current | 16A |
| Approvals & Standards | - |
| Contact Voltage VAC | 230VAC |
| Coil Voltage | 230VAC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | - |
Other details
| Brand | DOLD & SOEHNE |
| Part Number | IK 8800.11 AC 50HZ 230V |
| Quantity | Each |
| Technical Data Sheet EN |  |
