Description

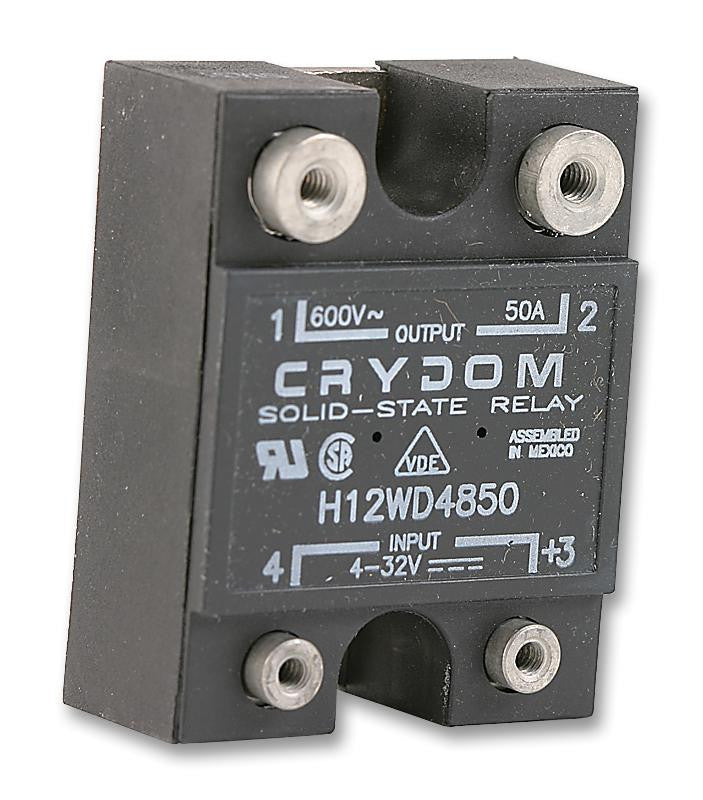

The H12WD4850 is a Solid State Relay with aluminium base plate, 94V-0 housing, SPST-NO contact, zero crossing switching mode and screw terminals. This H12WD-series panel mount relay features improved SEMS screw and washer, redesigned housing with anti-rotation barrier. Low off-state leakage current (snubberless). Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.
- Epoxy-free design
- DC control
- SCR output for heavy industrial loads
- 1.15Vrms Maximum on-state voltage drop
- Current regulated nominal input impedance
- 4000Vrms Dielectric strength
- 1/2 cycle ms Turn-on/off maximum time
- -40 to 80°C Ambient operating temperature range
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
Product details
| Relay Mounting | Panel |
| Control Voltage Max | 32VDC |
| Load Current | 50A |
| Control Voltage Min | 4VDC |
| Product Range | H12WD Series |
| Relay Terminals | Screw |
| Operating Voltage Min | 48VAC |
| Switching Mode | Zero Crossing |
| Contact Configuration | SPST-NO |
| Operating Voltage Max | 660VAC |
Other details
| Brand | CRYDOM |
| Part Number | H12WD4850 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
