Description
Product Overview

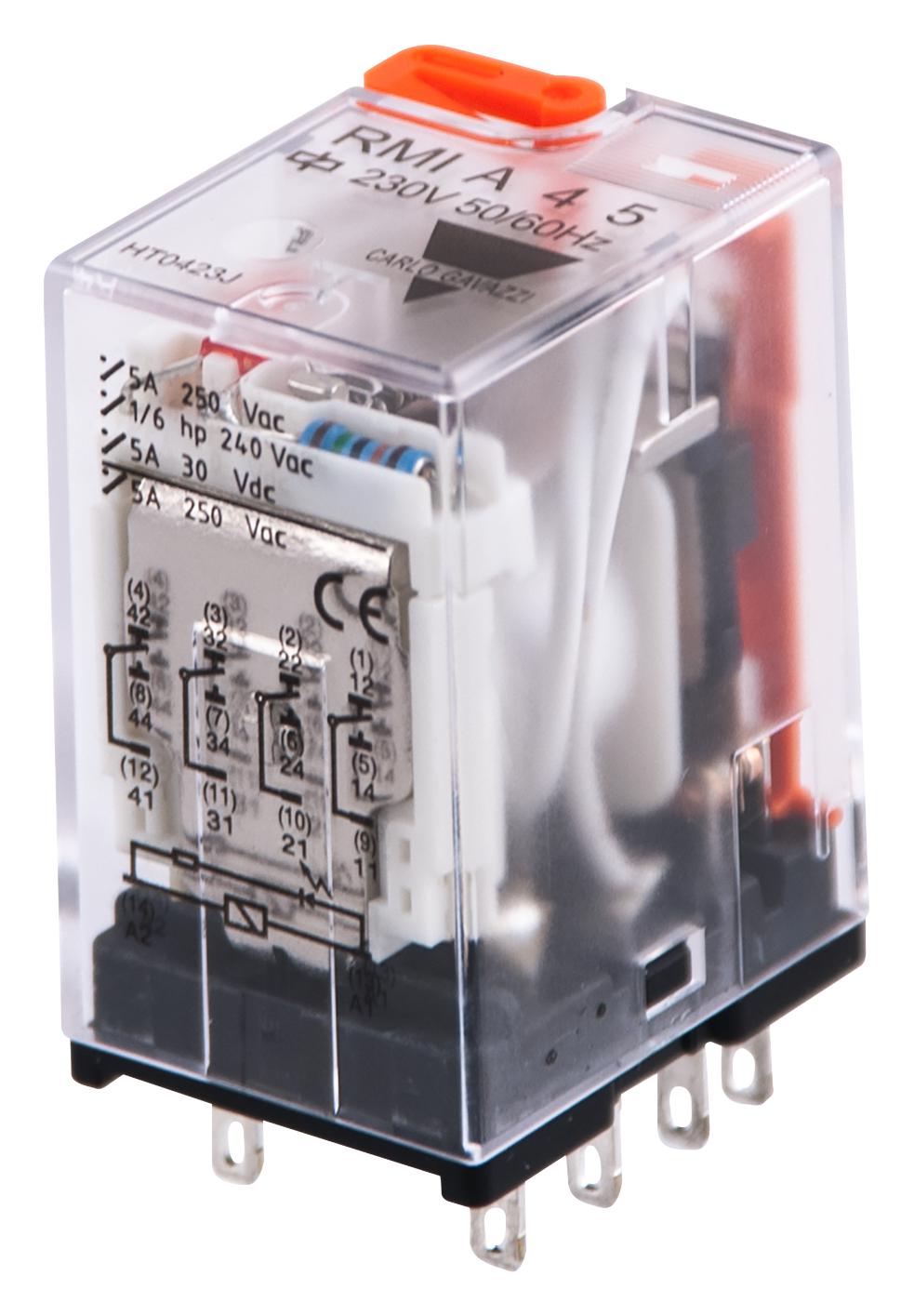

RMIA45230VAC is a RMI series monostable, type RMI, mini industrial relay. It can be used for a wide range of industrial application.
- High switching power, small size, 2 pole configuration
- Soldering terminal, standard with LED, push with arm and flag
- IP40 protection, compliant with the CE low voltage directive
- TUV, UL, CSA, IMQ approved
- DPDT 2-form C contact configuration, 10A contact rating
- 23VDC nominal voltage
- Rated control supply voltage range from 24 to 24V at DC
- Plug-in type of electric connection
- Beryllium copper material
- Ambient temperature range from -55 to 70°C
Product details
Other details
| Brand | CARLO GAVAZZI |
| Part Number | RMIA45230VAC |
| Quantity | Each |
| Technical Data Sheet EN |  |
