Description
Product Overview

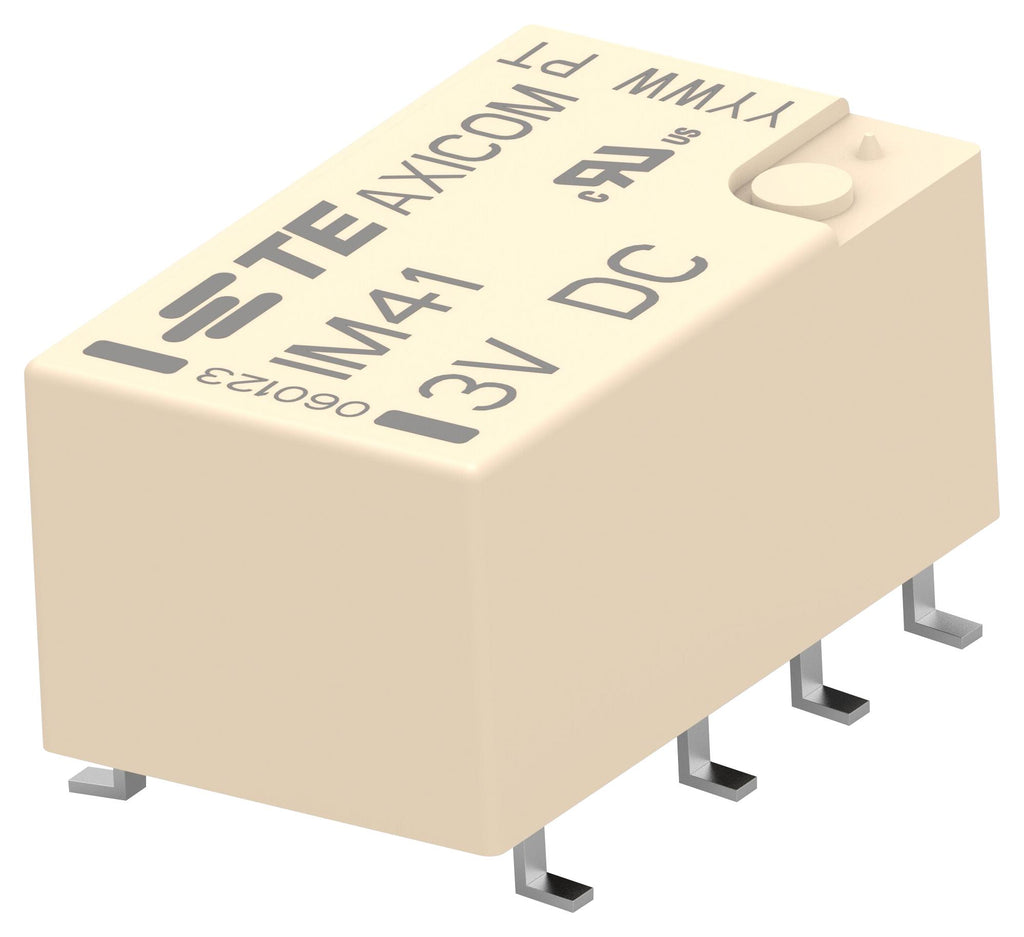

3-1462040-0 is an IM series signal relay. It features high mechanical shock resistance upto 50g functional. It is used in applications such as telecommunication, access and transmission equipment, optical network terminals, modems, office and business equipment, consumer electronics, measurement and test equipment, industrial control, medical equipment, HVAC.
- Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm²
- 100mW signal relay coil power rating (DC), 3VDC signal relay coil voltage rating?
- Bistable coil type, 2A contact limiting continuous current?
- 90 ohm coil resistance, 2A contact limiting making current?
- Coil power rating class?is 50 to 300mW, 2 form C (2 CO) signal relay contact arrangement
- PCB-SMT signal relay terminal type, 2A signal relay contact current rating
- PdRu+Au contact material, 2 contact number of poles
- Gold contact plating material, surface mount termination type
- UL 61810-1 (former UL 508) File No. E214025 approved
- Dimensions (L x W x H) is 10 x 6 x 5.65mm?
Product details
Other details
| Brand | AXICOM - TE CONNECTIVITY |
| Part Number | IM41SR |
| Quantity | Each |
| Technical Data Sheet EN |  |
