Description
Product Overview

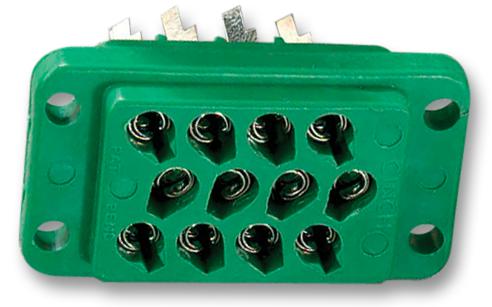

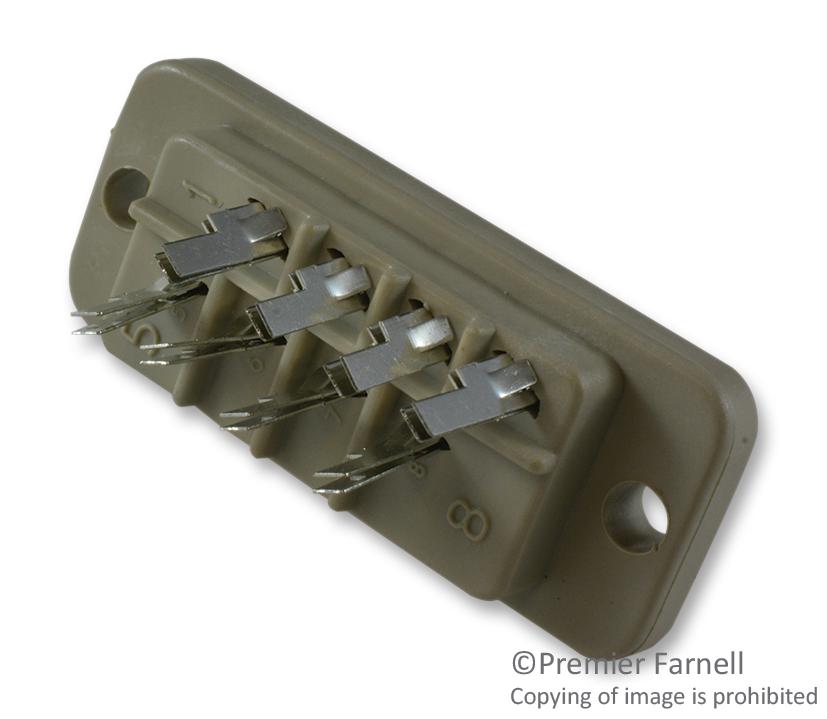

The JA7784700000L00 is a 8-pole female rectangular Power Connector with socket-type tin-plated copper alloy contacts. It has high-impact green thermoplastic mouldings and high-impact grey thermoplastic shell. It incorporate patented resilient finger contacts. Twelve fingers engage with each flat plug pin to provide low contract resistance, high current carrying capacity and minimum insertion and withdrawal forces. This special features help to provide a thoroughly reliable connector, enhanced by Mk.2 shells moulded in grey high impact thermoplastic for appearance and durability.
- 900VDC or AC Working voltage
- 5A Current rating
- 5m? Contact resistance
- 5000M? Minimum insulation resistance
Applications
Industrial
Product details
Other details
| Brand | CINCH CONNECTIVITY SOLUTIONS |
| Part Number | JA7784700000L00 |
| Quantity | Each |
| Technical Data Sheet EN |  |
