Description
- 8 x XLR-1/4" Mic/Line Inputs
- Up to 60 dB of Gain in 1 dB Increments
- Class-A Preamps & Custom Transformers
- Premium 24-Bit/192 kHz Converters
- Dante Integration with Redundant Ports

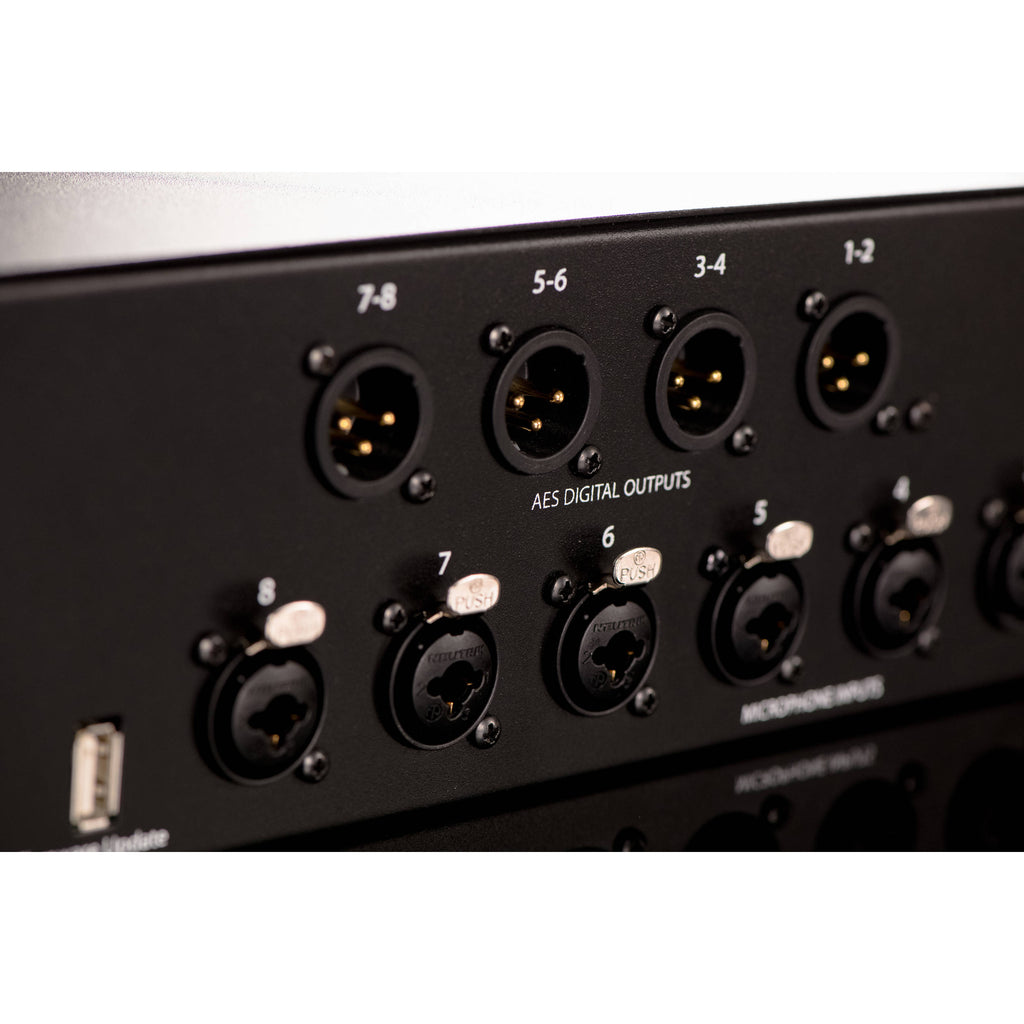

- 8-Channels of AES Outputs via XLR Jacks
- 48V, Polarity, Pad, and High-Pass Filter
- Redundant International Power Supplies
- OLED Display, Local or Remote Control
- Reinforced Steel Chassis

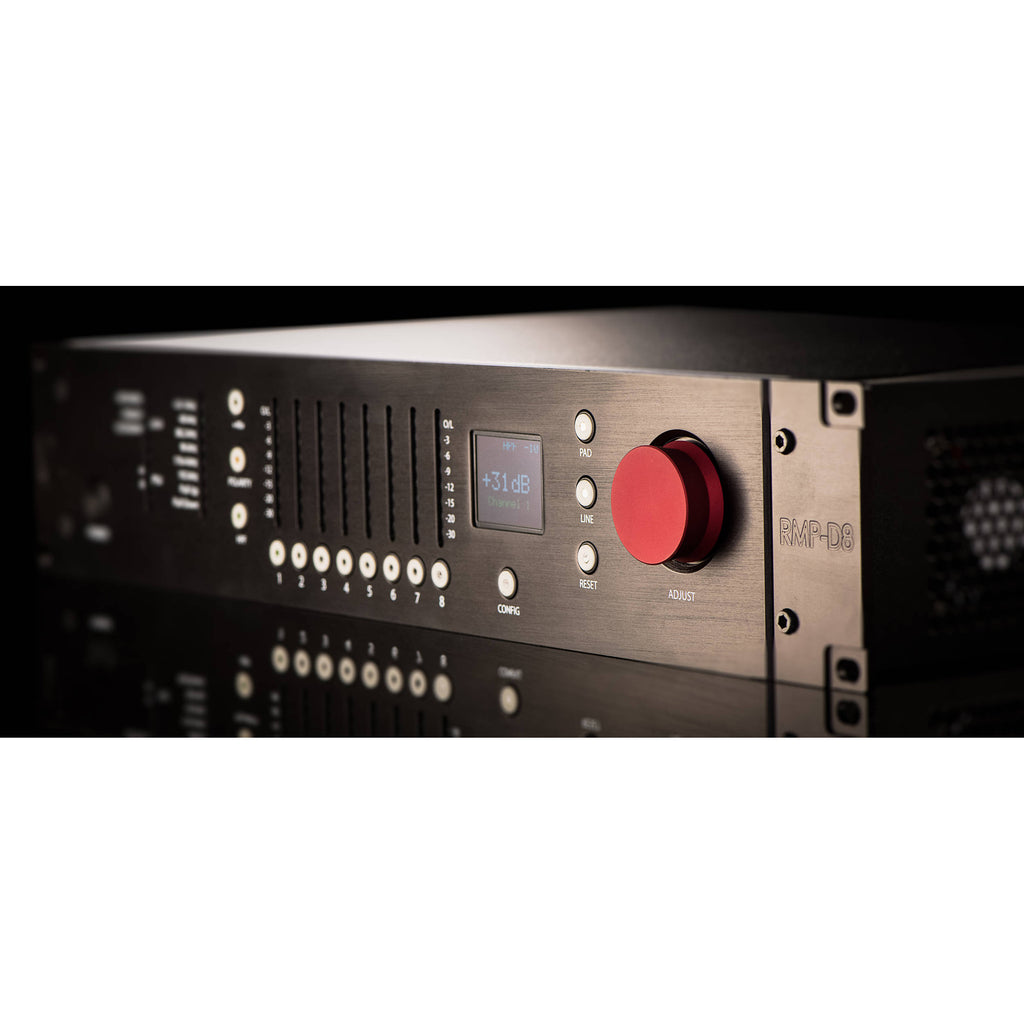

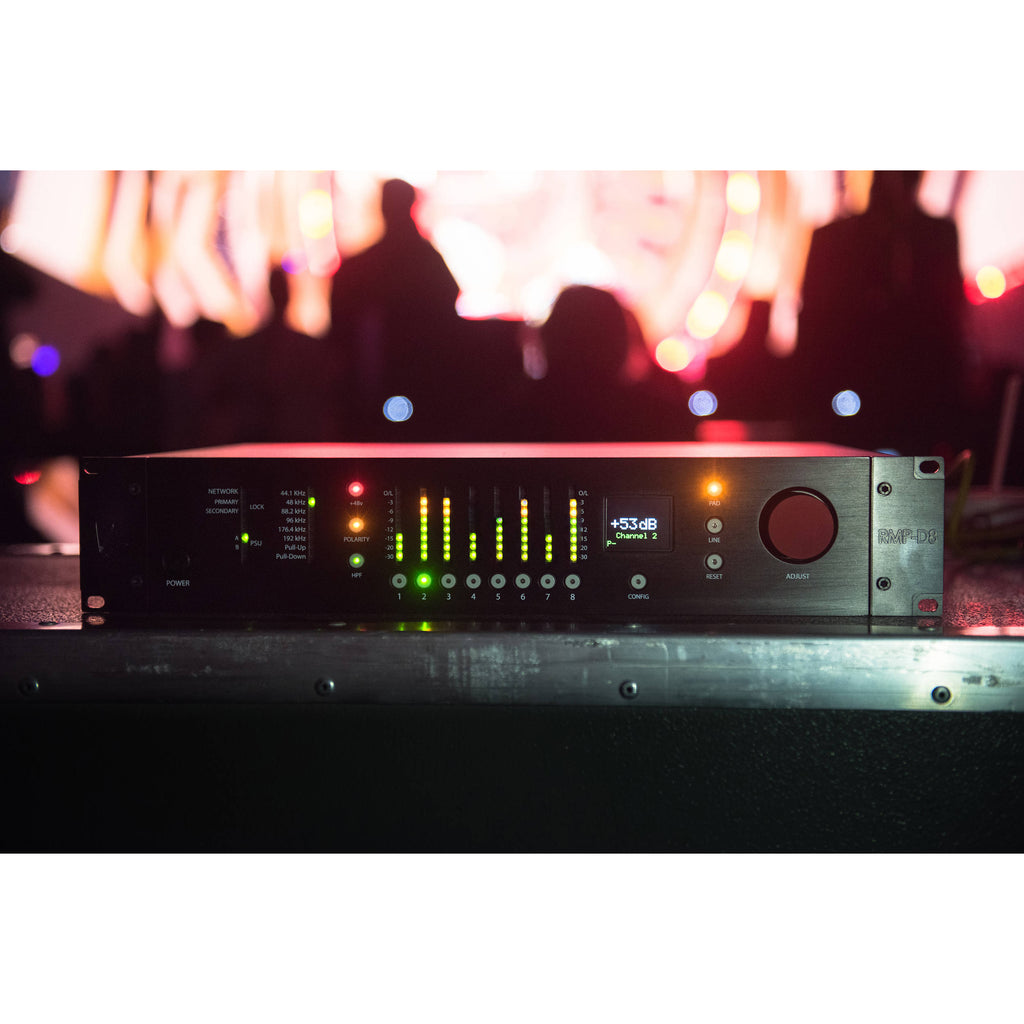

The Rupert Neve Designs RMP-D8 is an 8-channel Dante microphone preamplifier designed to deliver classic Neve tone, high-resolution A/D conversion, and reliable Dante network integration for recording and mixing engineers in broadcast, houses of worship, and live stage applications. The eight Class-A mic preamps, which offer up to 60 dB of gain in 1 dB increments, are paired with custom Rupert Neve Designs transformers. Mic or line inputs can be utilized via the eight XLR-1/4" combo jacks. Mastering-grade converters operate at up to 24-bit/192 kHz resolution and feed digital signal simultaneously to dual Dante network ports and four 2-channel AES XLR outputs.
Each channel features selectable 48 VDC phantom power, polarity, a -10 dB pad, and an 80 Hz high-pass filter. RMP-D8 parameters can be viewed and adjusted locally via the large OLED display and front-panel controls, or remotely over the network. Built with touring in mind, the RMP-D8 boasts a reinforced steel chassis, redundant international power supplies, and latching IEC power cables.
- Classic Rupert Neve Tone
- The heart of the RMP-D8 lies in the modular mic preamp cards featuring Mr. Rupert Neve's custom transformer designs. Unlike other integrated Dante mic preamp designs that rely primarily on a single IC for gain & tone, each channel on the RMP-D8 has a fully-realized class-A microphone preamplifier feeding a custom transformer, maintaining the high standards of Rupert Neve Designs' standalone preamplifiers.
- Mastering-Grade Conversion
- Where converters are often an afterthought on combination devices, the 24-bit/192 kHz converters in the RMP-D8 are a product of years of careful listening. The precision-controlled internal clocking and enhanced jitter reduction enable capture of the full breadth of performance from the mic preamplifiers. Pull-up and pull-down rates are supported in addition to standard sample rates up to 192 kHz.
- Fail-Safe Dante Integration

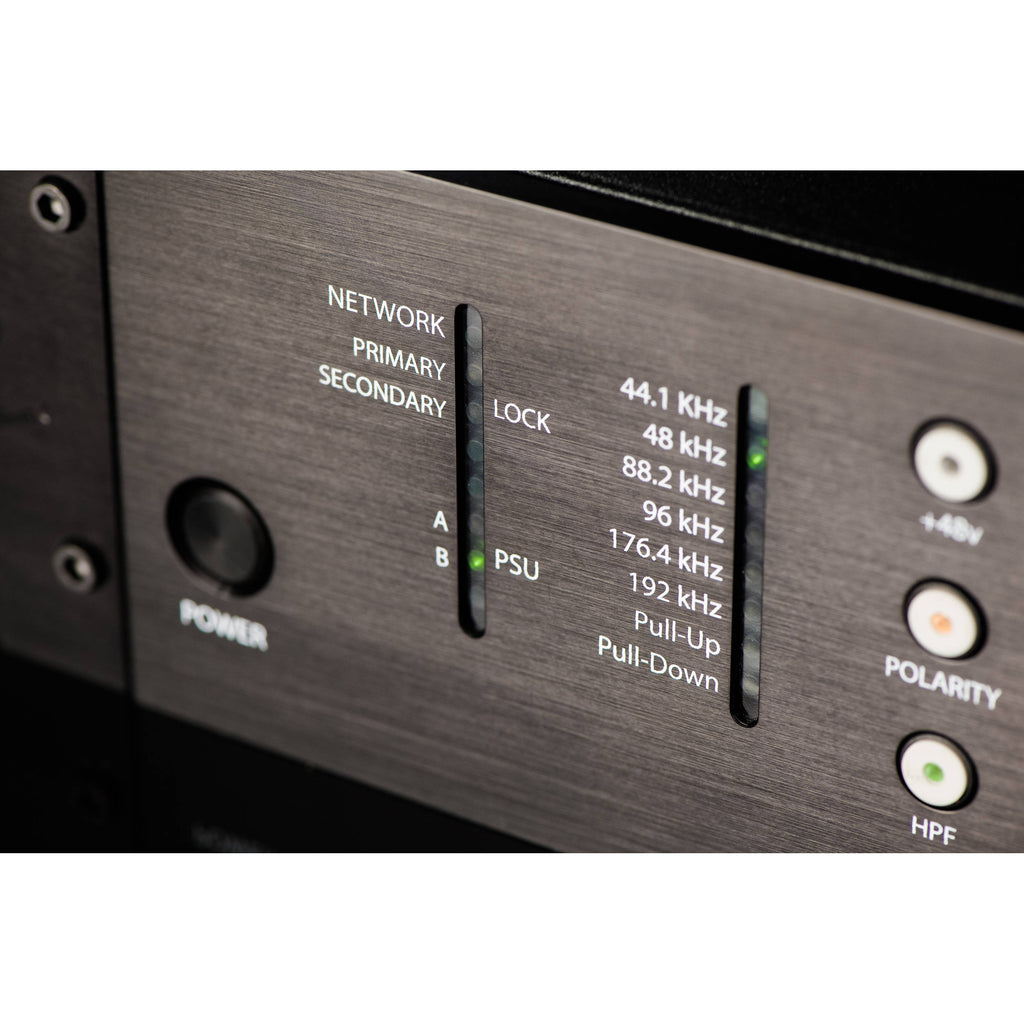

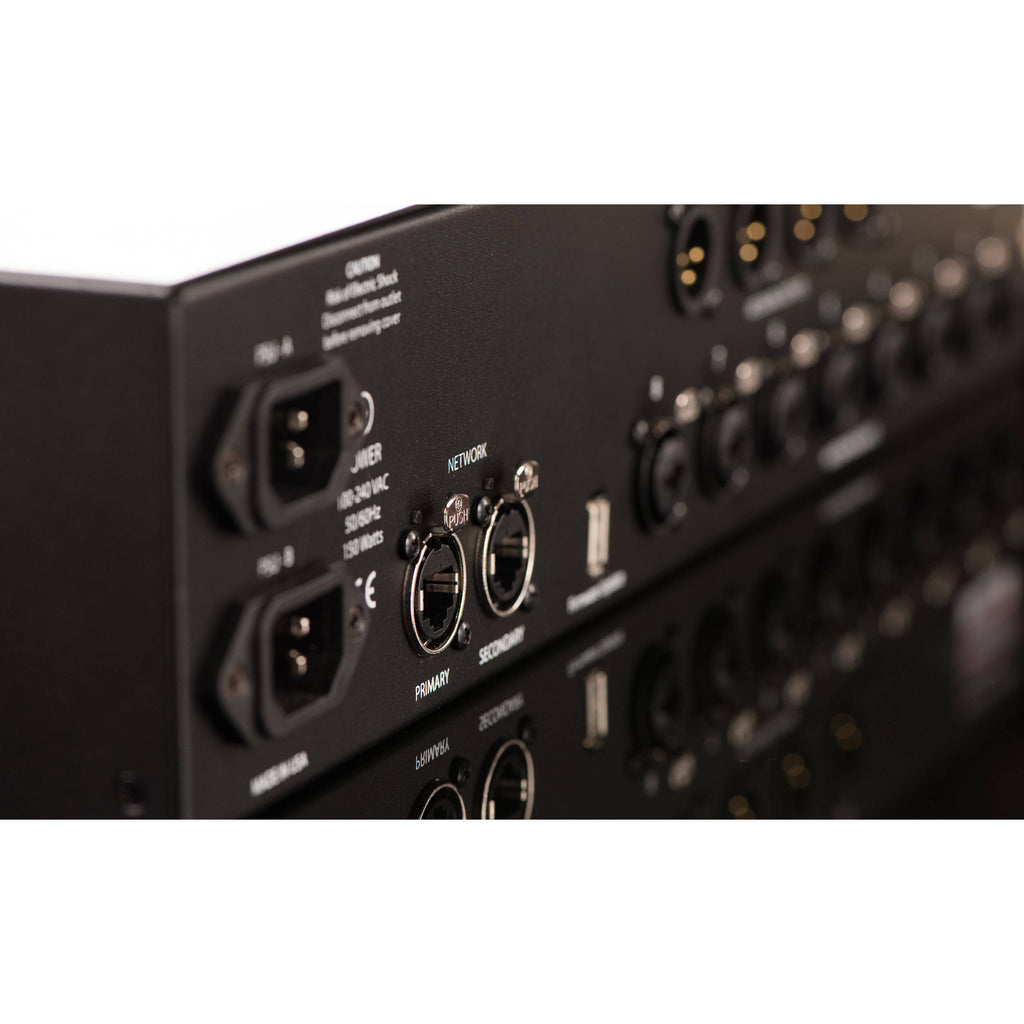

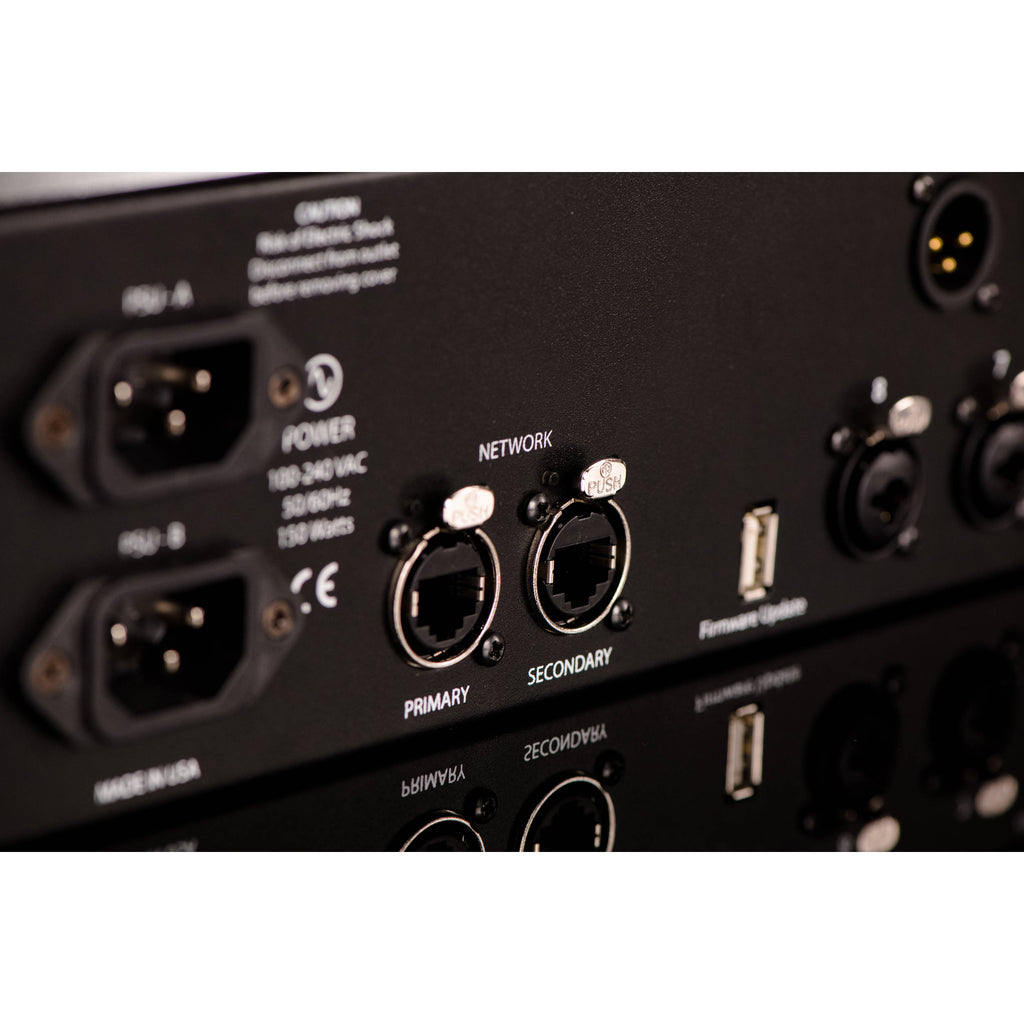

- Two rear-panel RJ45 network ports accommodate primary and secondary Dante connections. When properly configured, device operation and signal transmission will continue in the event of a primary network failure. The selectable Gain Compensation mode mirrors the primary outputs with a -6 dB offset to deliver clean safety channels in case of clipping on the main Dante outputs. Additionally, the RMP-D8 is compatible with the Dante Virtual Soundcard and Dante Via for direct computer integration.
- Redundant Power Supplies

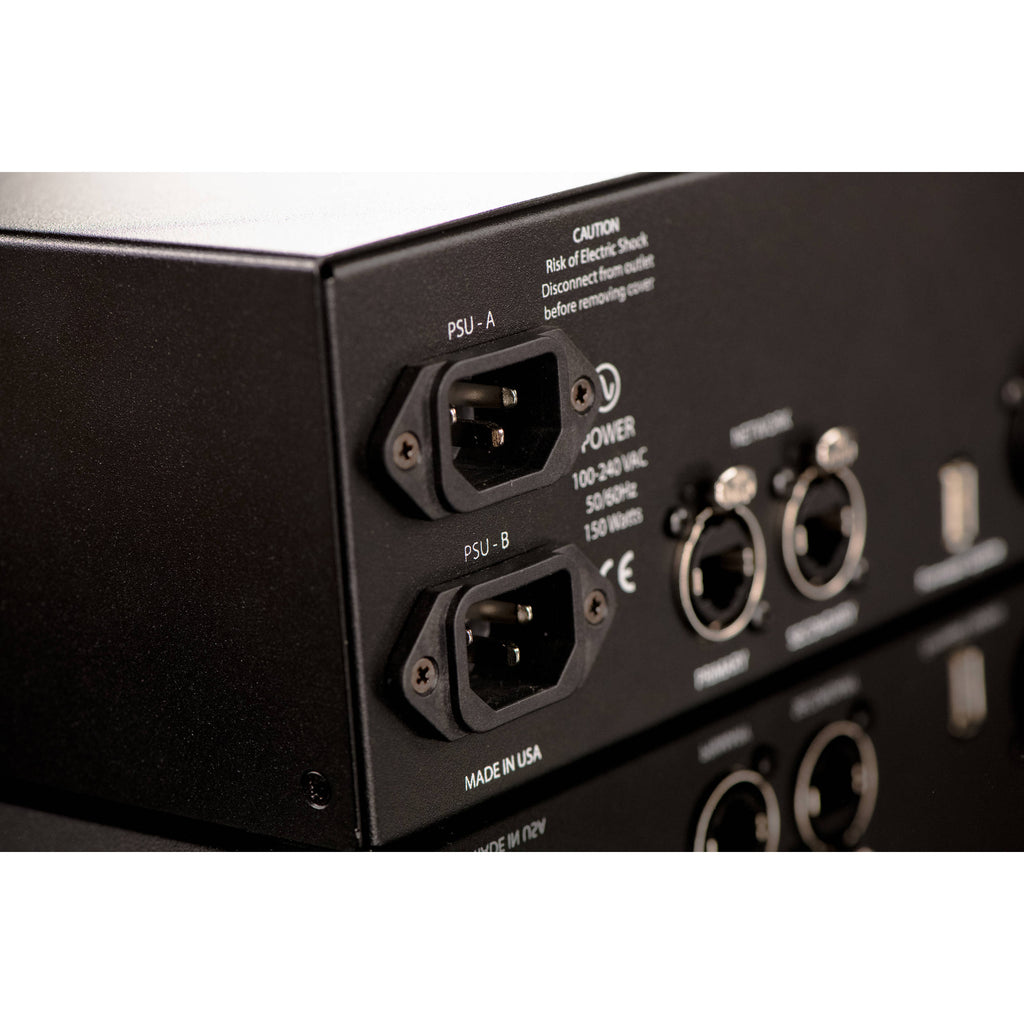

- The dual power supplies are reliable and capable of operating anywhere in the world. The included IEC power cables feature a latching design to inhibit accidental disconnects.

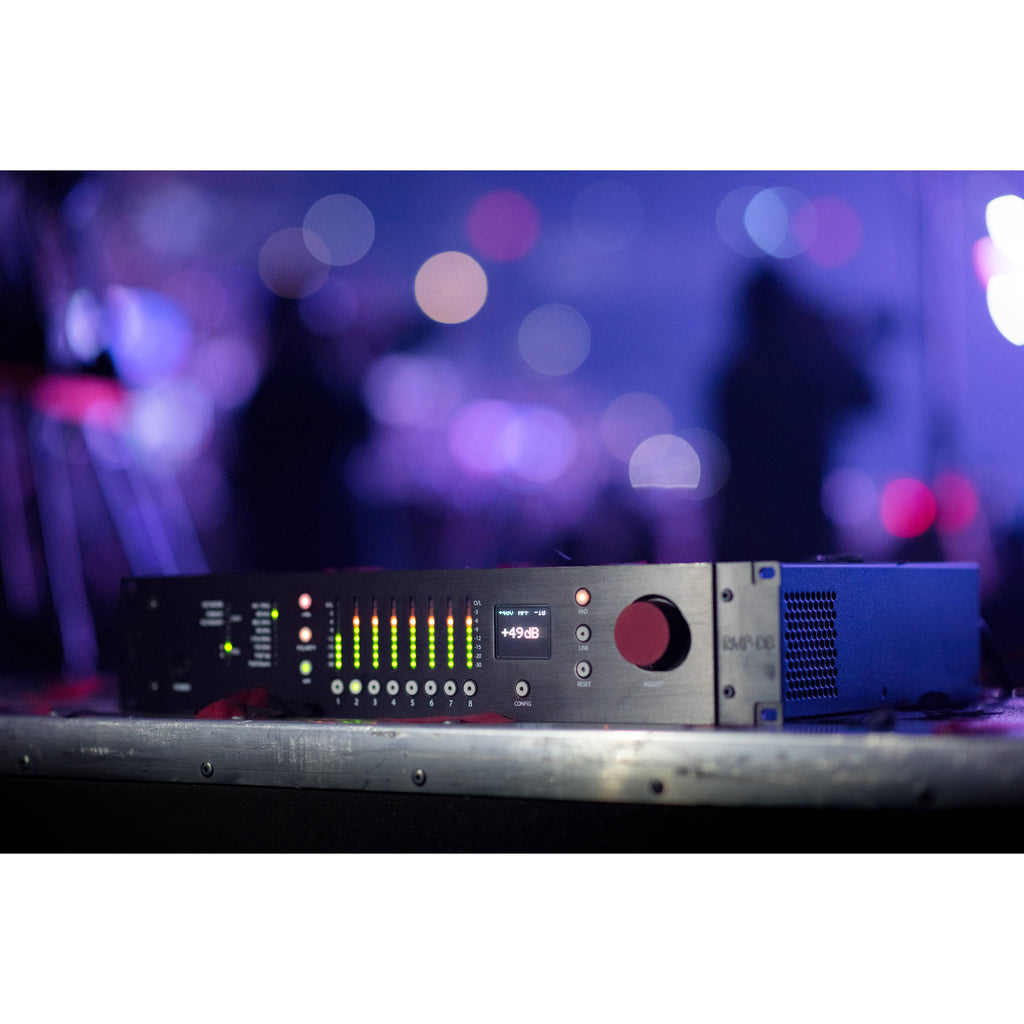

- Built for Touring

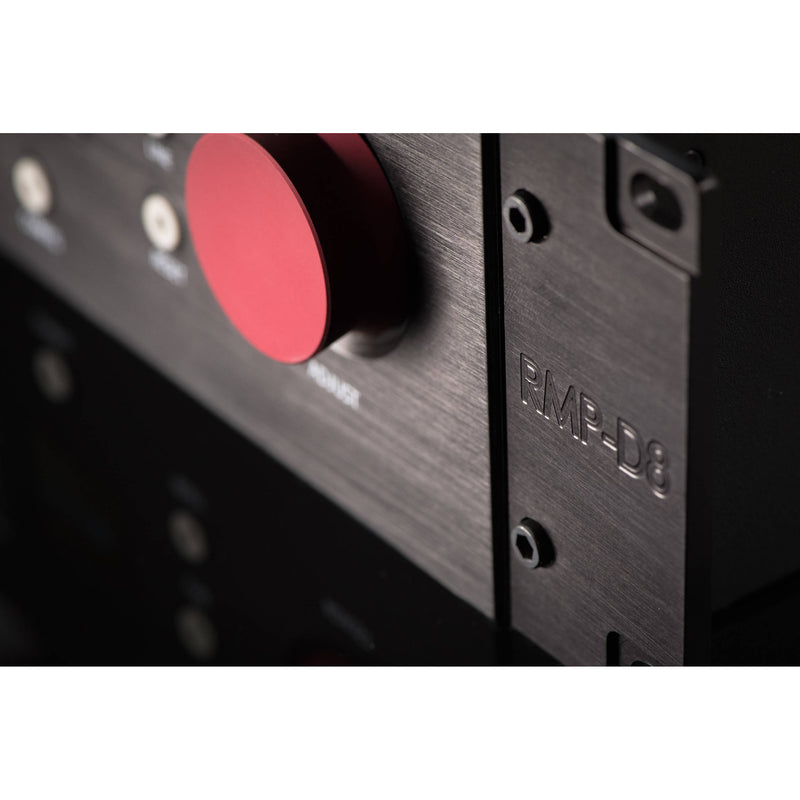

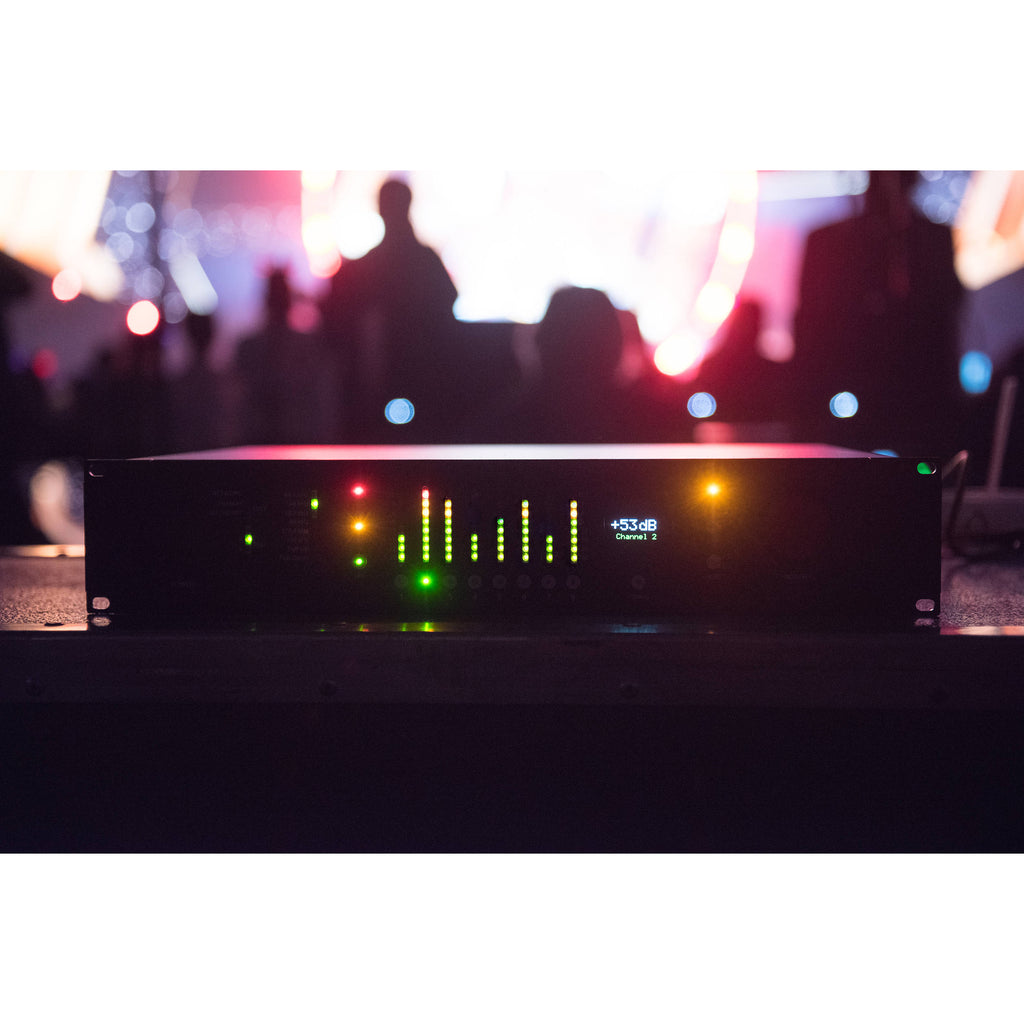

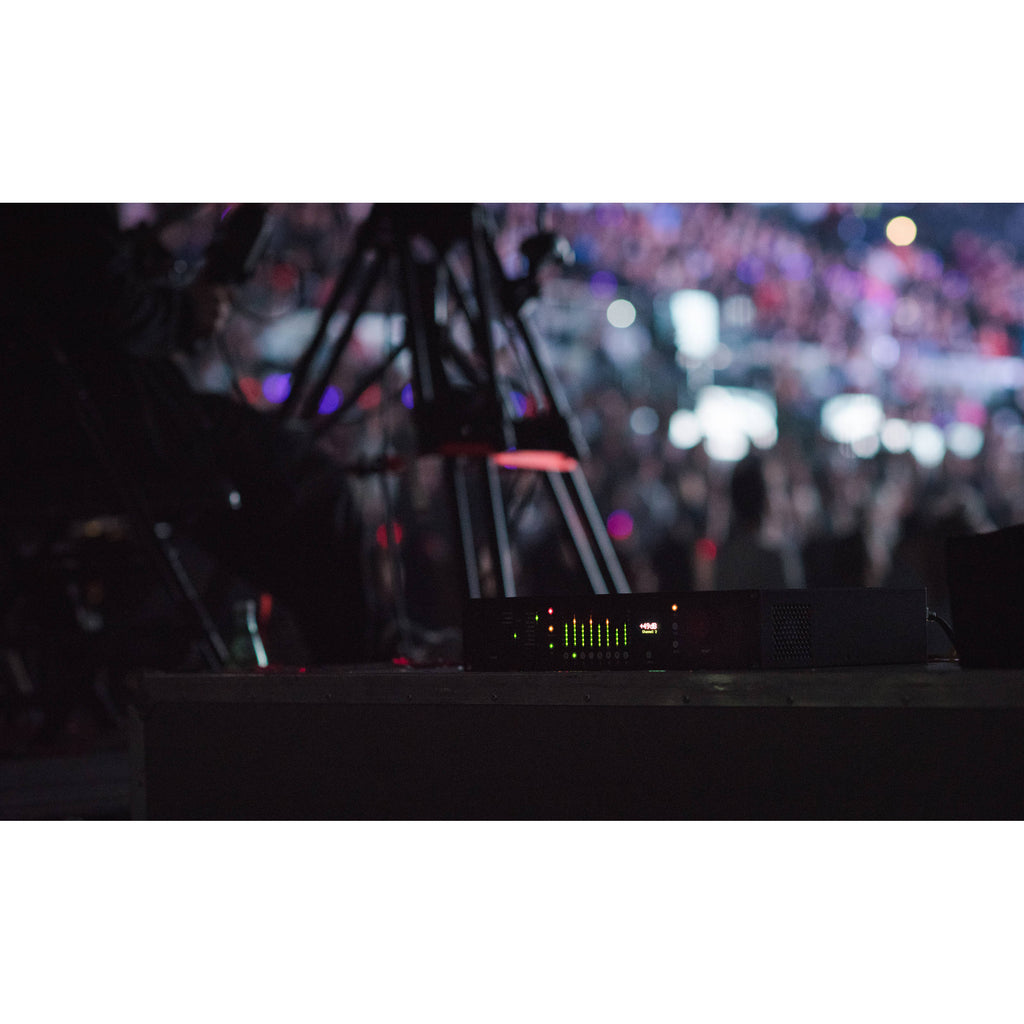

- The reinforced steel chassis grants enhanced RF shielding and rugged reliability, making it ideal for use in challenging environments such as arenas, clubs, and concert venues.
- Flexible Control

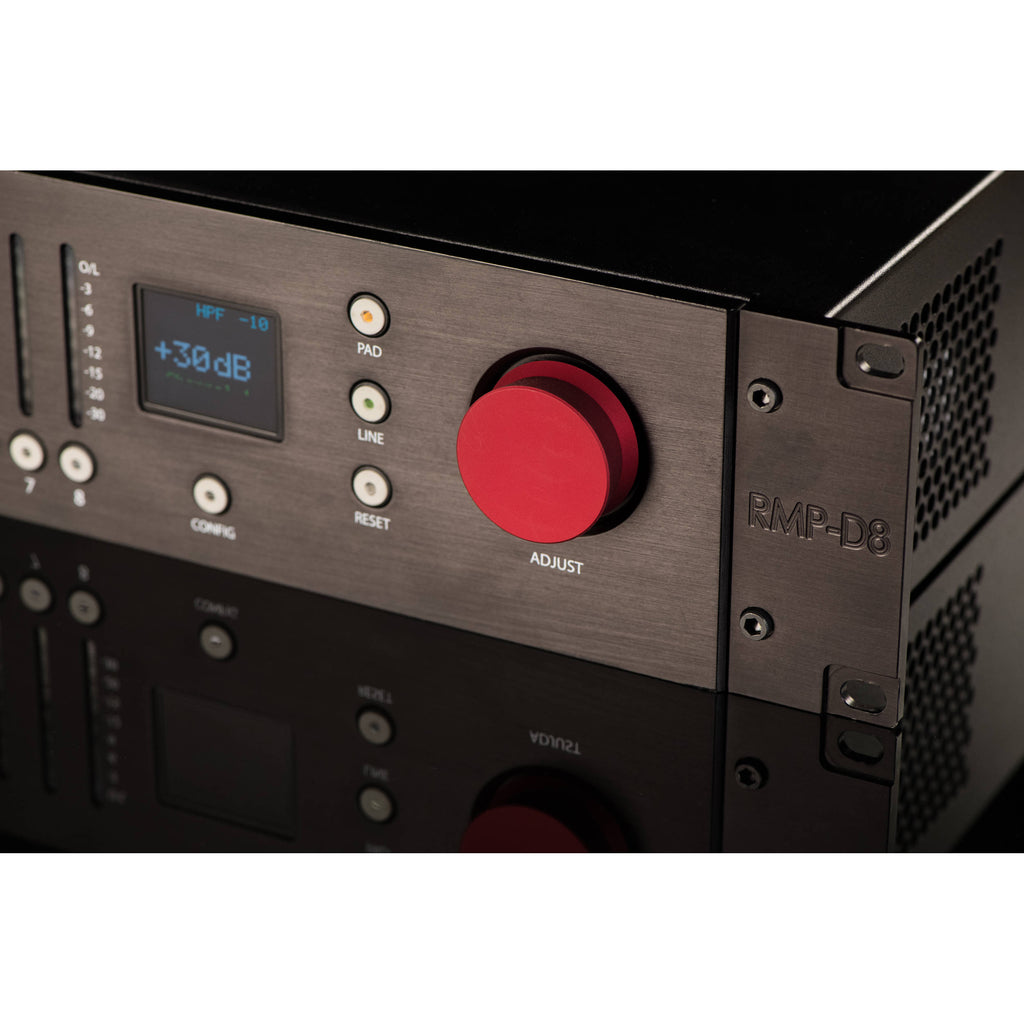

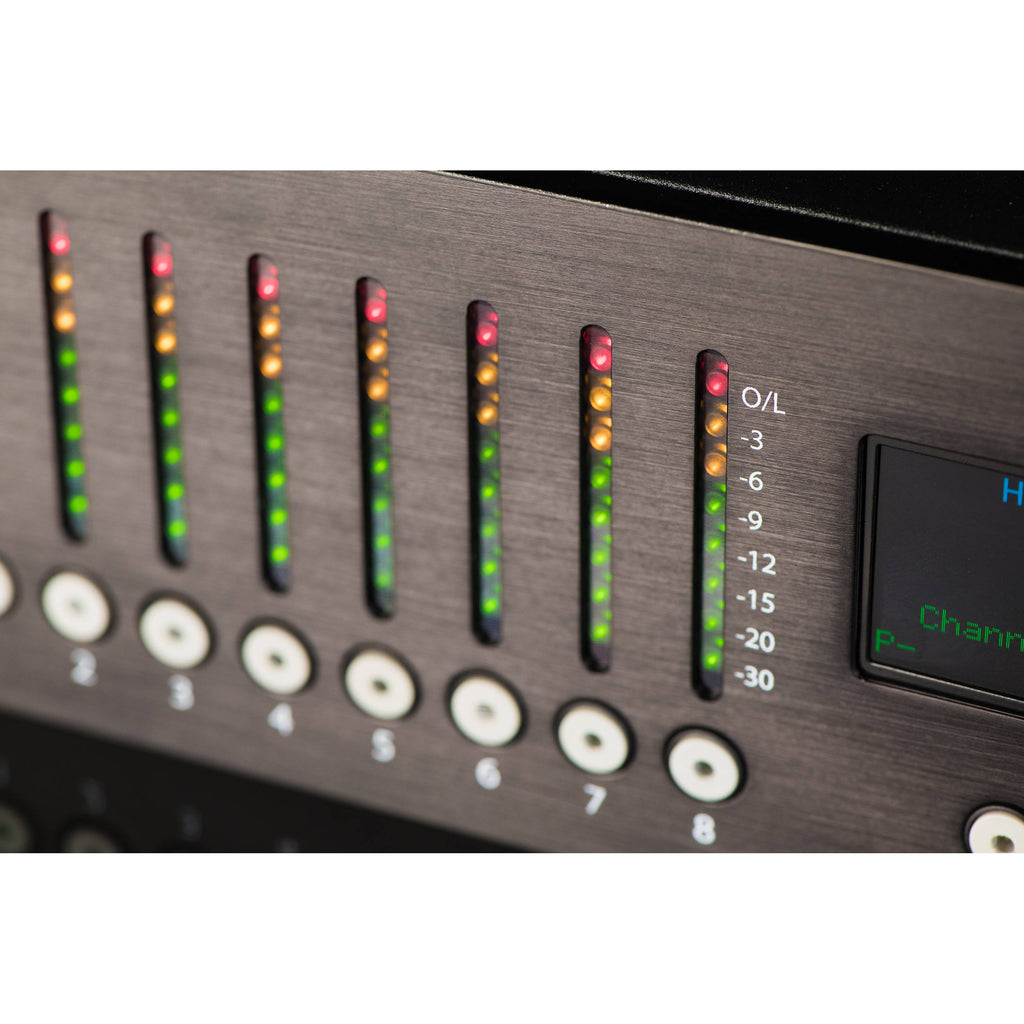

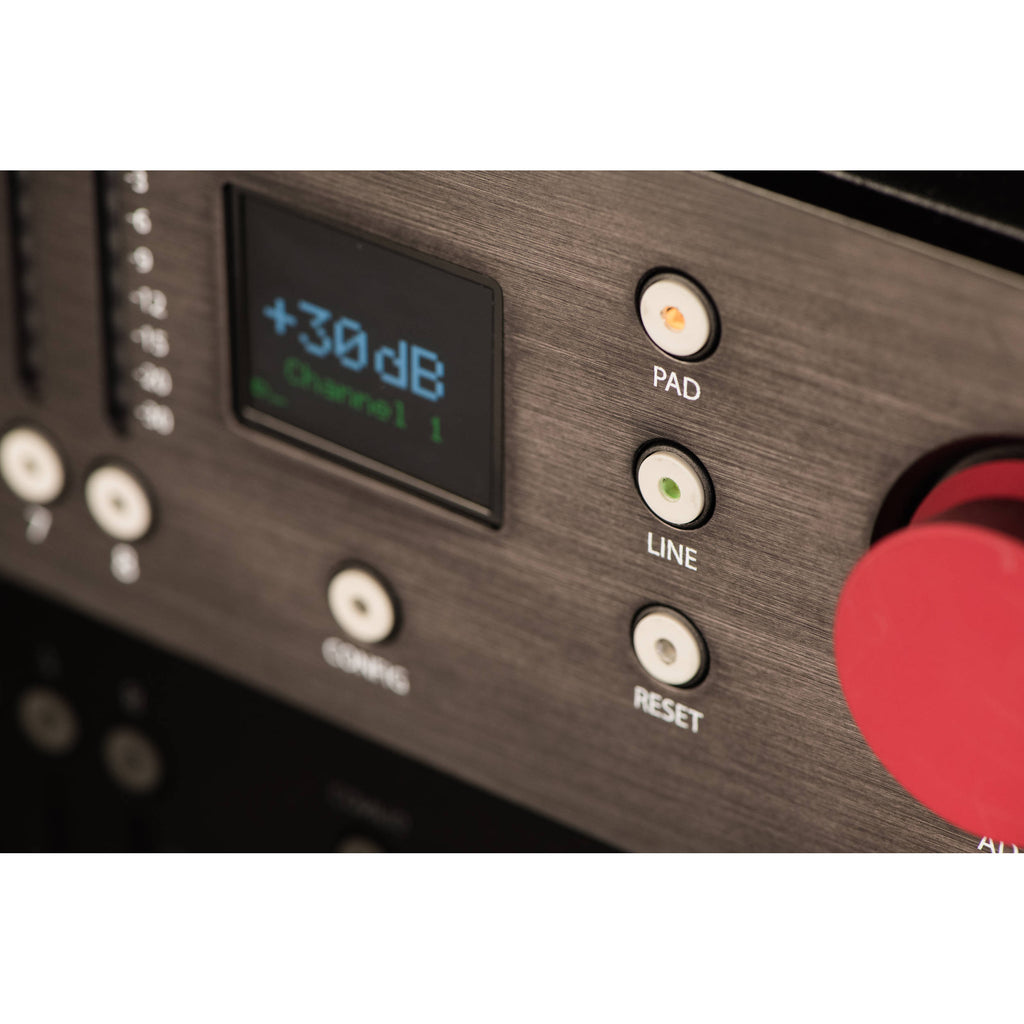

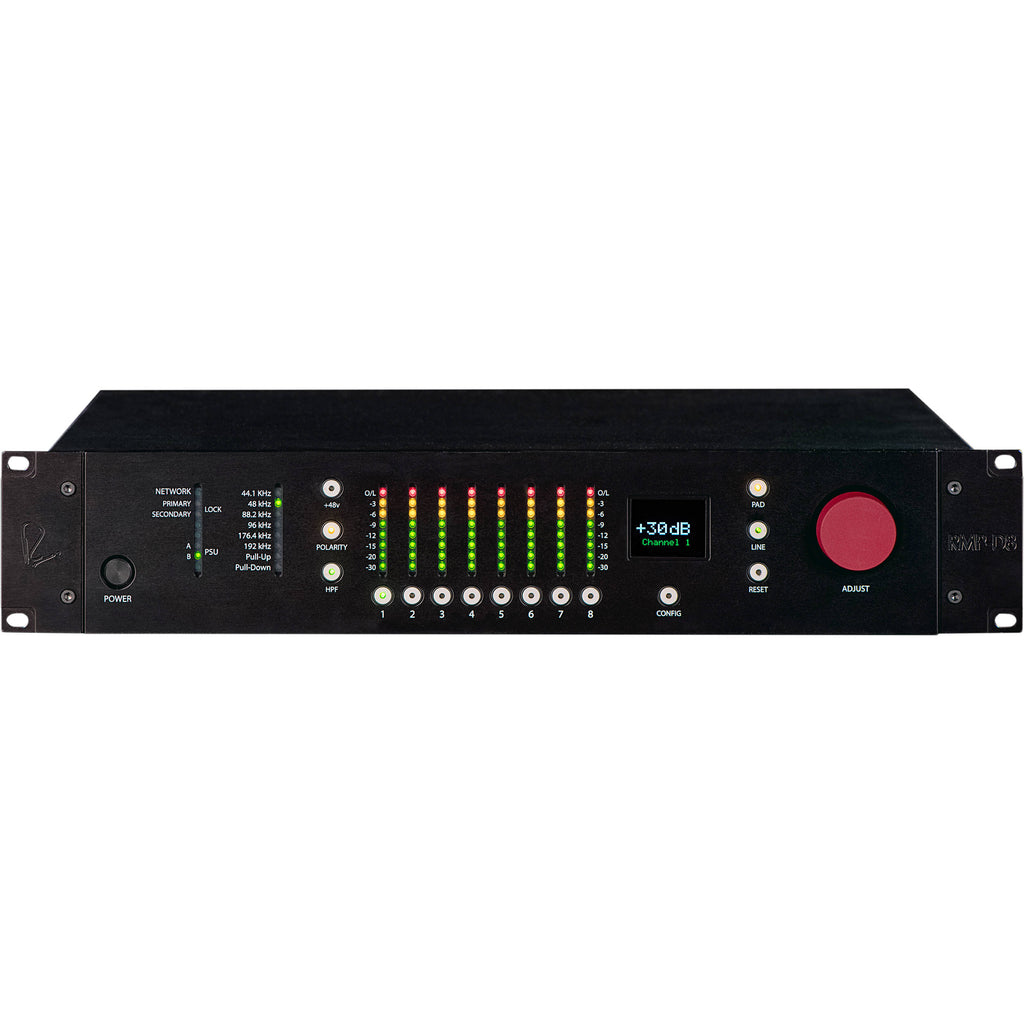

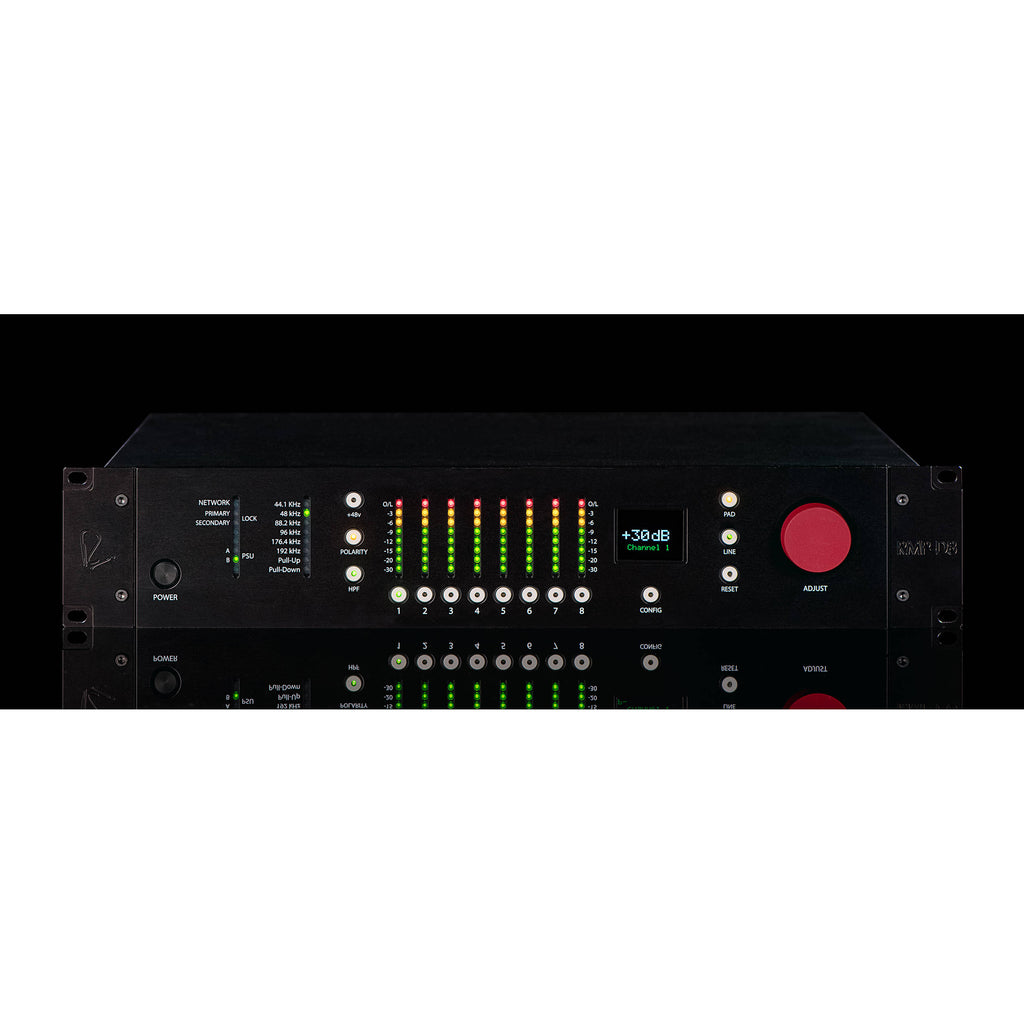

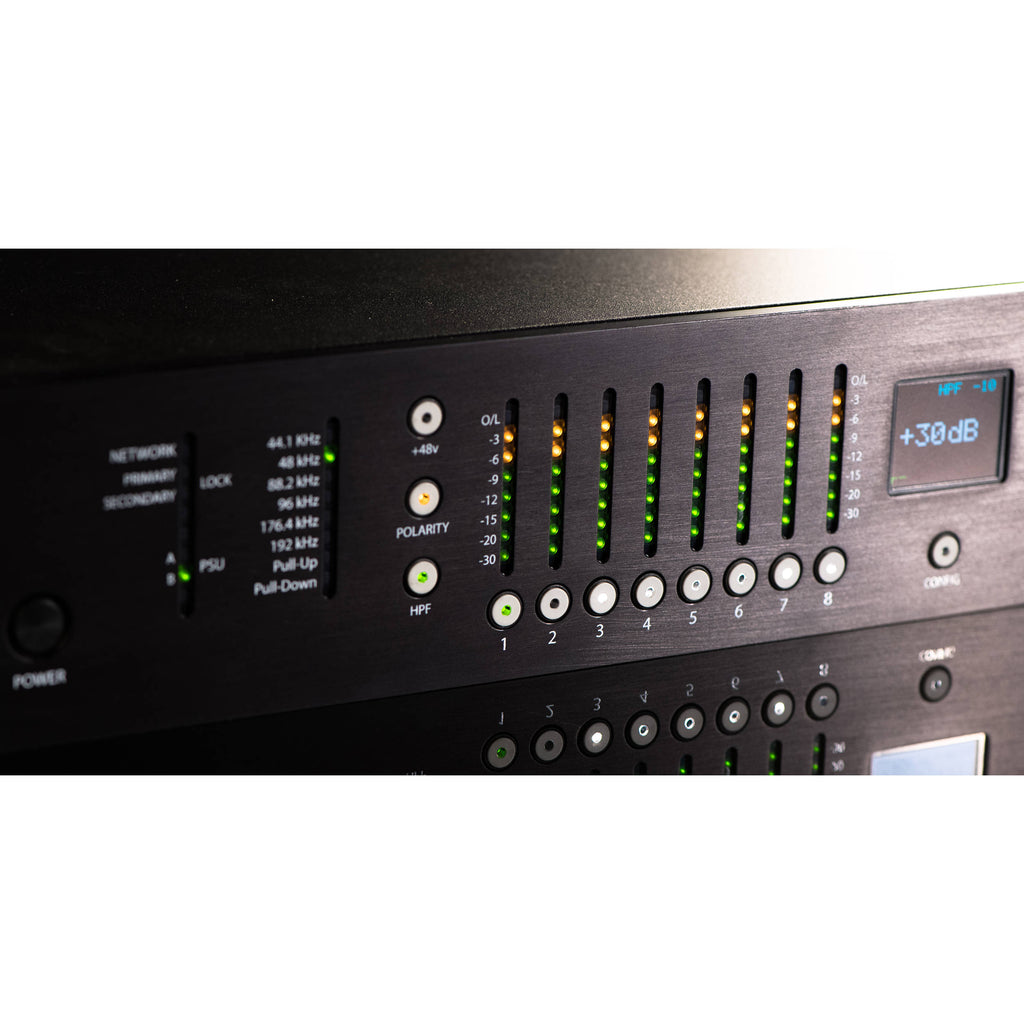

- Operate the RMP-D8 locally via its large OLED display, easy-to-read meters, and convenient front-panel controls. Alternatively, configure and adjust the RMP-D8's parameters via the available software application, which can be used remotely over the network.
Rupert Neve Designs RMP-D8 specs

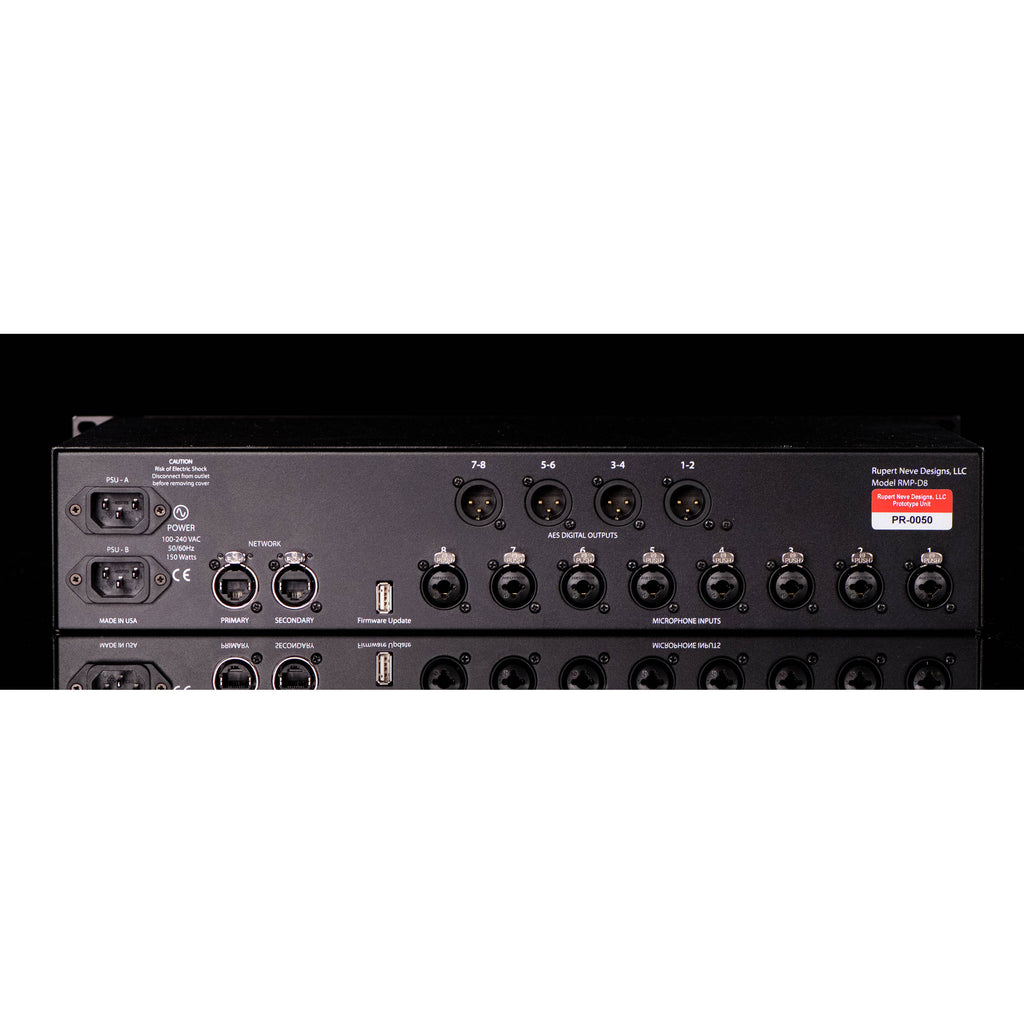

| Number of Channels | 8 |
| Inputs | 8 x XLR/TRS combo jacks |
| Outputs | 4 x XLR 3-pin jacks (eight AES digital channels) |
| Network | 2 x RJ45 ports (primary and secondary Dante network connections) |
| A/D and D/A Conversion | Up to 24-bit/192 kHz resolution |
| Phantom Power | 48 VDC, selectable per channel |
| Gain Range | 0 to 60 dB in 1 dB steps |
| Input Impedance | 5.5 kOhms |
| Maximum Input Level | +25.5 dBu |
| Dynamic Range | 110 dB |
| Frequency Response | 20 to 50 Hz (-0.5 dB) 50 Hz to 12.5 kHz (-0.1 dB) 12.5 to 40 kHz (+0.2 dB) |
| Noise | -91 dBFS at +60 dB Gain: (150-Ohm balanced source, AES output, 22 Hz to 22 kHz, unweighted) -110 dBFS at Unity Gain: (150-Ohm balanced source, AES output, 22 Hz to 22 kHz, unweighted) |
| Signal-to-Noise Ratio (SNR) | 84.4 dB |
| Pad | -10 dB |
| High-Pass Filter | -3 dB at 80 Hz, 12 dB/octave slope |
| Power Connectors | 2 x IEC ports (main and redundant PSU inputs) |
| Power Requirement | 100 to 240 VAC, 50/60 Hz, 150 W |
| Construction Material | Reinforced steel chassis |
| Dimensions (W x D x H) | 19.0 x 12.0 x 3.5" / 48.3 x 30.5 x 8.9 cm |
| Weight | 13.5 lb / 6.1 kg |
| Specialties | 1 x USB Type-A port for firmware updates OLED display |
