Description
OVIDE Koko Overview

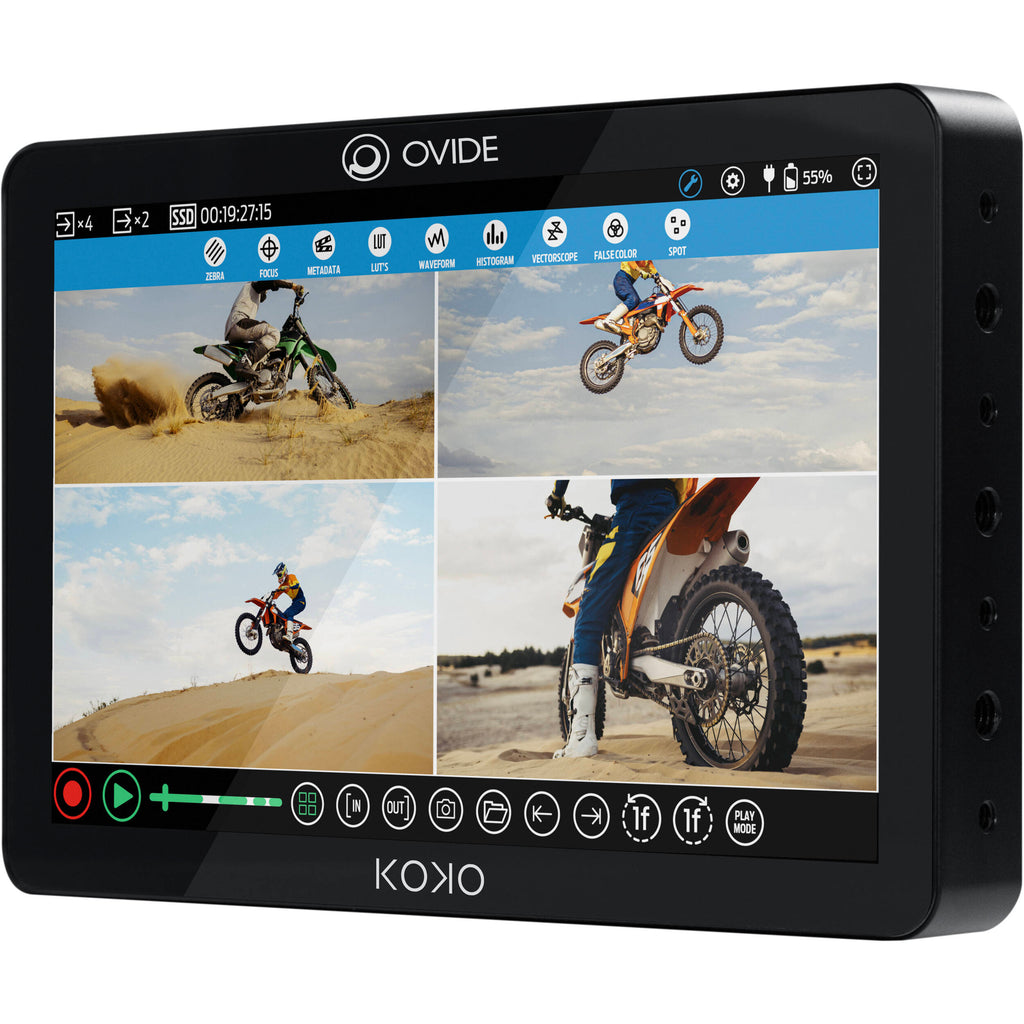

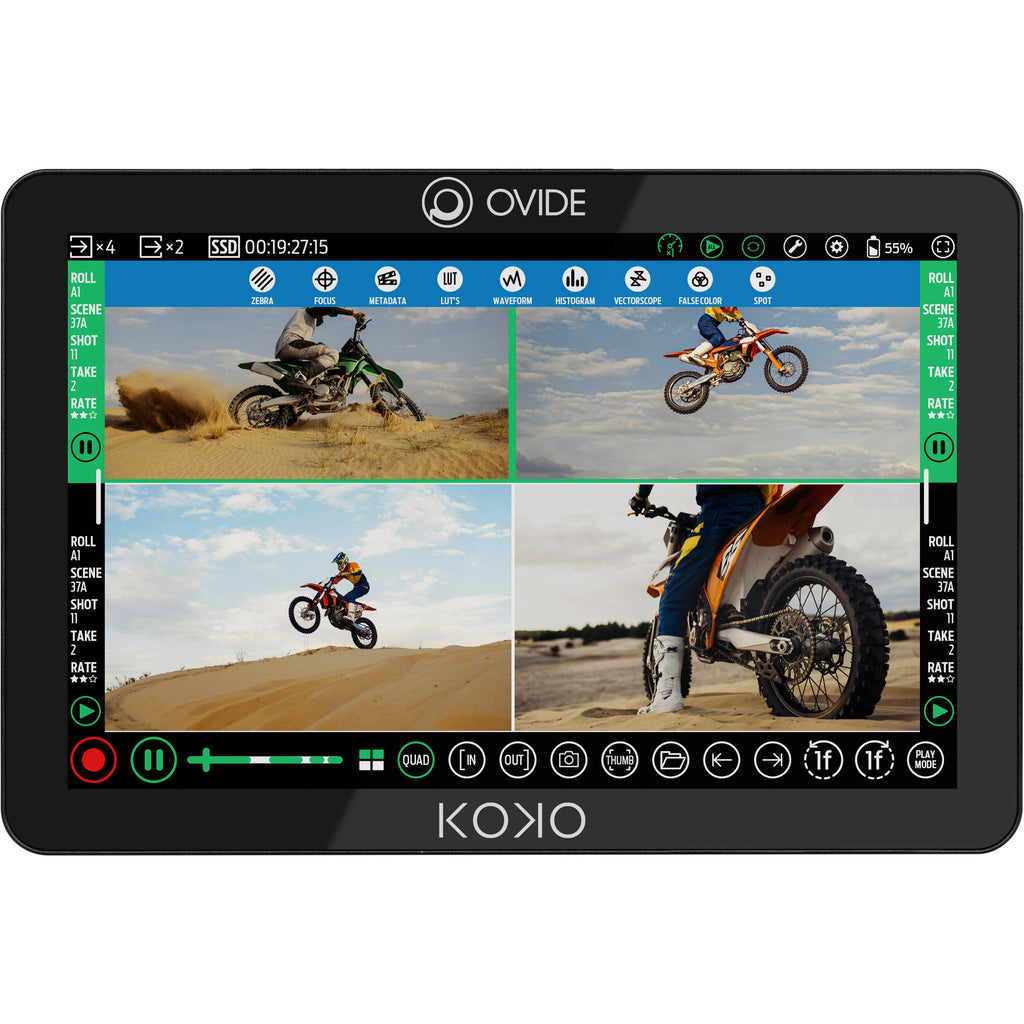

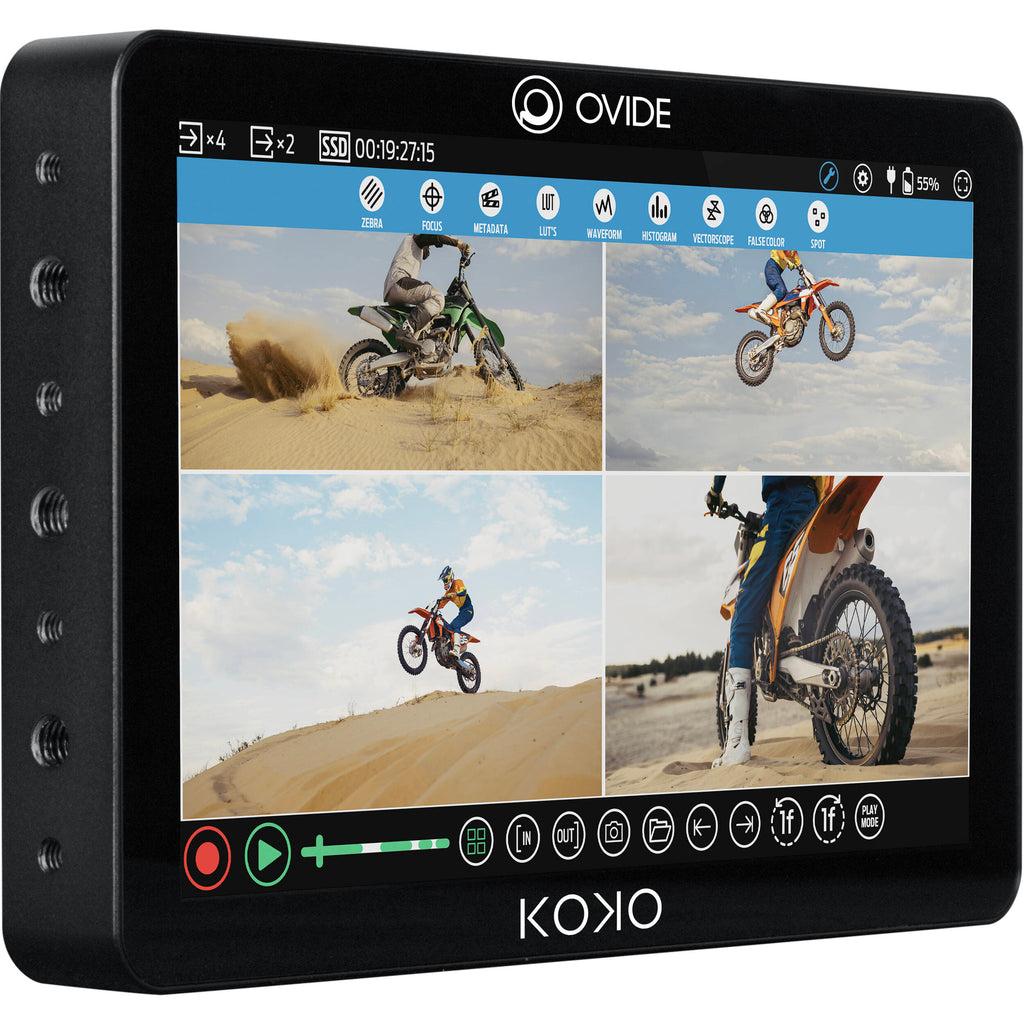

Monitor and record your production in 4K with the Koko 10" HDR Touchscreen Recording Monitor from OVIDE. Packaged with a V-mount battery connector for powering via a separately available V-mount battery or with the included power supply, the monitor features a 10.1" touchscreen TFT LCD that boasts 1920 x 1080 resolution, cd/m² brightness, and 900:1 contrast. With four 12G-SDI inputs and four 12G-SDI outputs, the Koko is designed with a removable SSD that allows you to record up to four 1080p60 feeds or a single 4K stream in Apple ProRes format with support for HDR and independent LUTs for each output.

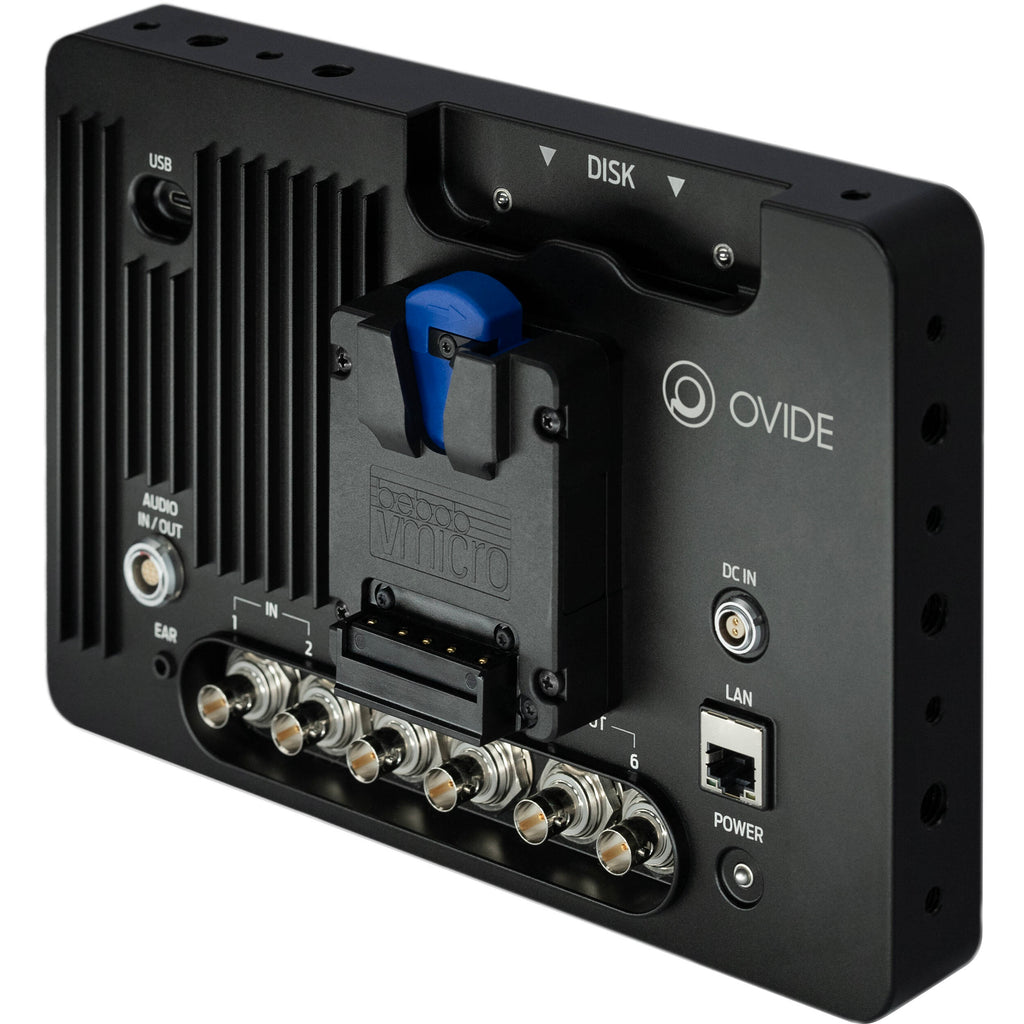

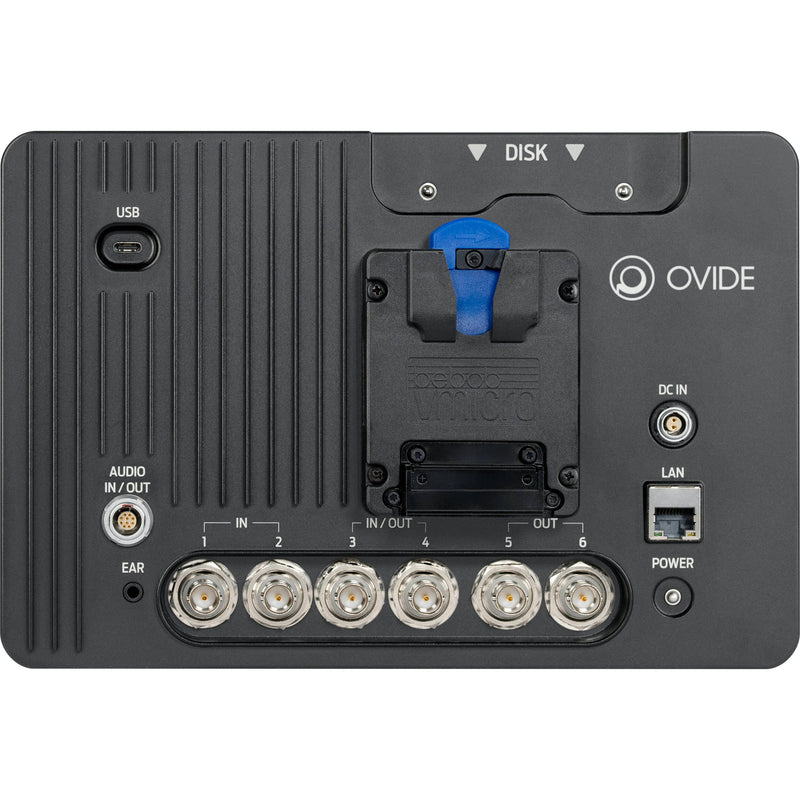

Packed with integrated video assist functions such as Rec-Stop-Play in/out, histogram, waveform, focus assist, zebra, false color, and more, the Koko supports automatic metadata reading and recording. This is very helpful in digital cinema production where editors and other collaborators rely heavily on this pivotal information for a proper and comprehensive post-production workflow. The Koko is fully compatible with all OVIDE systems, and it is equipped with a bidirectional analog audio input/output and a 3.5mm TRS headphone output. A LAN Ethernet port and a USB-C port are integrated on the rear of the panel, but these are intended for future expanded functionality, and a sun hood is also included in the package.
In the Box
- OVIDE Koko 10" HDR Touchscreen Recording Monitor (V-Mount)
- V-Mount Battery Connector
- Sun Hood
- Power Supply
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Recording Media (Not Included)
OVIDE Koko Specs
| Display Size |
10.1" / 25.7 cm
|
| Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Compatibility |
HDR10
|
| Video I/O |
2x BNC (12G-SDI) Input
2x BNC (12G-SDI) Input/Output 2x BNC (12G-SDI) Output |
| Media/Memory Card Slot |
No
|
| Video Format |
SDI
UHD 4K 1080p |
| Built-In Battery |
No
|
| Battery Type |
1x V-Mount
|
| Power Consumption |
25 W
|
| Panel Type |
TFT LCD
|
| Display Size |
10.1" / 25.7 cm
|
| Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
900:1
|
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors)
|
| HDR Compatibility |
HDR10
|
| Pixels Per Inch (ppi) |
218 ppi
|
| Real-Time LUT Monitoring |
HDR
|
| Image Controls |
False Color, Focus Assist, Histogram, Waveform, Zebra
|
| Video I/O |
2x BNC (12G-SDI) Input
2x BNC (12G-SDI) Input/Output 2x BNC (12G-SDI) Output |
| Embedded Audio |
SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (17 VDC) Input
|
| Other I/O |
1x RJ45 (LAN)
1x USB-C 1x Proprietary Input/Output |
| Media/Memory Card Slot |
No
|
| File System Support |
exFAT
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
SDI
UHD 4K 1080p |
| Timecode Support |
Yes
|
| Pulldown Conversion |
No
|
| Camera Trigger |
No
|
| Pre-Roll Record |
No
|
| Encoding Formats |
x
ProRes |
| Closed Caption Support |
No
|
| Metadata Tagging |
Yes
|
| DC Input Power |
12 to 17 VDC
|
| Built-In Battery |
No
|
| Battery Type |
1x V-Mount
|
| Power Consumption |
25 W
|
| Certifications |
CE, FCC
|
| Dimensions |
9.8 x 6.7 x 1.3" / 250 x 169 x 33 mm
|
| Weight |
2.9 lb / 1.3 kg
|
| Package Weight |
5.875 lb
|
| Box Dimensions (LxWxH) |
16.4 x 9.2 x 3.5"
|
