Description
Atomos ATOMBBRCU1 Overview
- 1Description
- 2Rec Button
- 3Play
- 4F1: Luma Waveform On / Off
- 5F1: RGB Parade Waveform On / Off
- 6F1: Vectorscope On / Off
- 7F2: Focus Peaking On / Off
- 8F2: Zebra
- 9F2: False Color
- 10F2: Zoom
- 11F3: Turn LUT On / Off
- 12F4: Frame Guide On / Off
- 13F4: Safe Area On / Off
- 14F4: Anamorphic De-squeeze On / Off
- 15F4: Blue Only

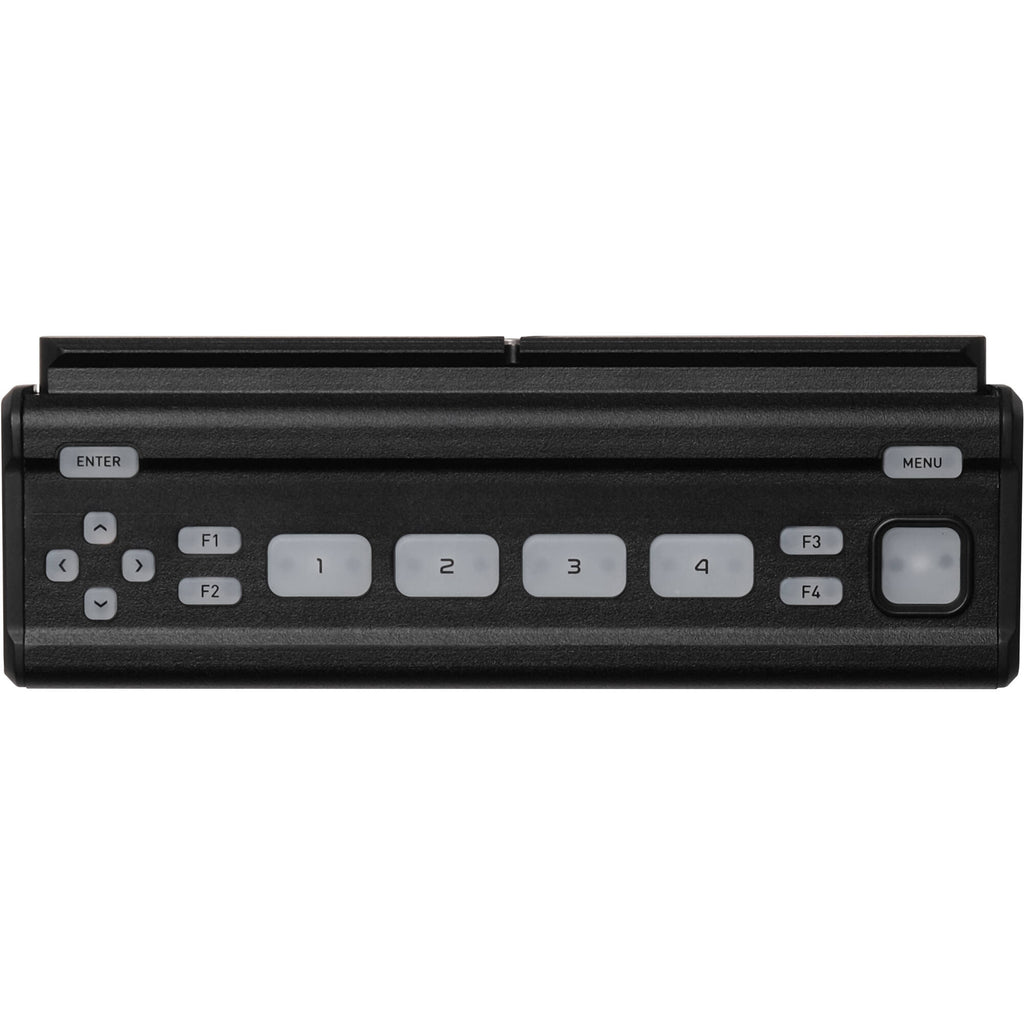

The Button Bar is a compact remote control unit that gives you access to the Atomos NEON monitor/recorder functions. It features tactile buttons with adjustable backlight levels and lets you access and control scopes, assist tools, frame guides, LUT previews, and more. With dedicated buttons for record and playback, you can perform functions such as jump into the last take to review the shot, or go frame by frame, or loop the entire clip. DITs can use the Button Bar in combination with the Atomos NEON AtomRemote app for iOS or macOS to define and set the color pipeline and project settings.
The Button Bar connects to the NEON monitor over an included 2.5mm DC cable for both control and power, so no additional power source is required. Optional longer cables with a LANC connection can be used to extend the distance between the two devices. The Button Bar can be set on a desktop or mounted into your setup via built-in anti-twist 3/8"-16 and 1/4"-20 threads or a NATO rail that runs along the full length of the device.
Rec Button
- Start / stop / jump to record
Play
- Enter playback of last recorded clip
- Next clip
- Previous clip
- Play / pause
- 10x forward
- 10x back
- Step frame forward
- Step frame back
- Loop
F1: Luma Waveform On / Off
- Adjust opacity
- Adjust transparency
- Adjust size / position
- Adjust transparency of WFM
- Adjust size / position of WFM
F1: RGB Parade Waveform On / Off
- Adjust opacity
- Adjust transparency
- Adjust size / position
F1: Vectorscope On / Off
- Adjust opacity
- Adjust transparency
- Adjust size / position
F2: Focus Peaking On / Off
- Adjust color
- Adjust intensity
- Adjust style
F2: Zebra
- Adjust threshold
F2: False Color
- On / off
F2: Zoom
- 1:1 pixel
- 2 x
F3: Turn LUT On / Off
- LUT 1 - 8
- Right arrow > next LUT slots
- Left arrow < previous LUT slots
F4: Frame Guide On / Off
- Next frame guide
- Previous frame guide
F4: Safe Area On / Off
- Action safe
- Action and title safe
F4: Anamorphic De-squeeze On / Off
- Next de-squeeze option
- Previous de-squeeze option
F4: Blue Only
- On / Off
In the Box
- Atomos Button Bar for NEON Monitor/Recorder
- EVA Carry Case
- 2.5mm to 2.5mm Jack Cable
- Limited 1-Year Warranty
- Description
- Rec Button
- Play
- F1: Luma Waveform On / Off
- F1: RGB Parade Waveform On / Off
- F1: Vectorscope On / Off
- F2: Focus Peaking On / Off
- F2: Zebra
- F2: False Color
- F2: Zoom
- F3: Turn LUT On / Off
- F4: Frame Guide On / Off
- F4: Safe Area On / Off
- F4: Anamorphic De-squeeze On / Off
- F4: Blue Only
Atomos ATOMBBRCU1 Specs
| Mount Type | Anti-Twist 3/8"-16 Anti-Twist 1/4"-20 NATO Rail |
| Material of Construction | Aluminum with ABS Plastic |
| Interface | 2.5 mm DC |
| Dimensions | 7.9 x 0.8 x 2.8" / 20 x 2 x 7 cm |
| Weight | 12.9 oz / 365 g |
| Package Weight | 1.53 lb |
| Box Dimensions (LxWxH) | 9.6 x 4.5 x 2.4" |
