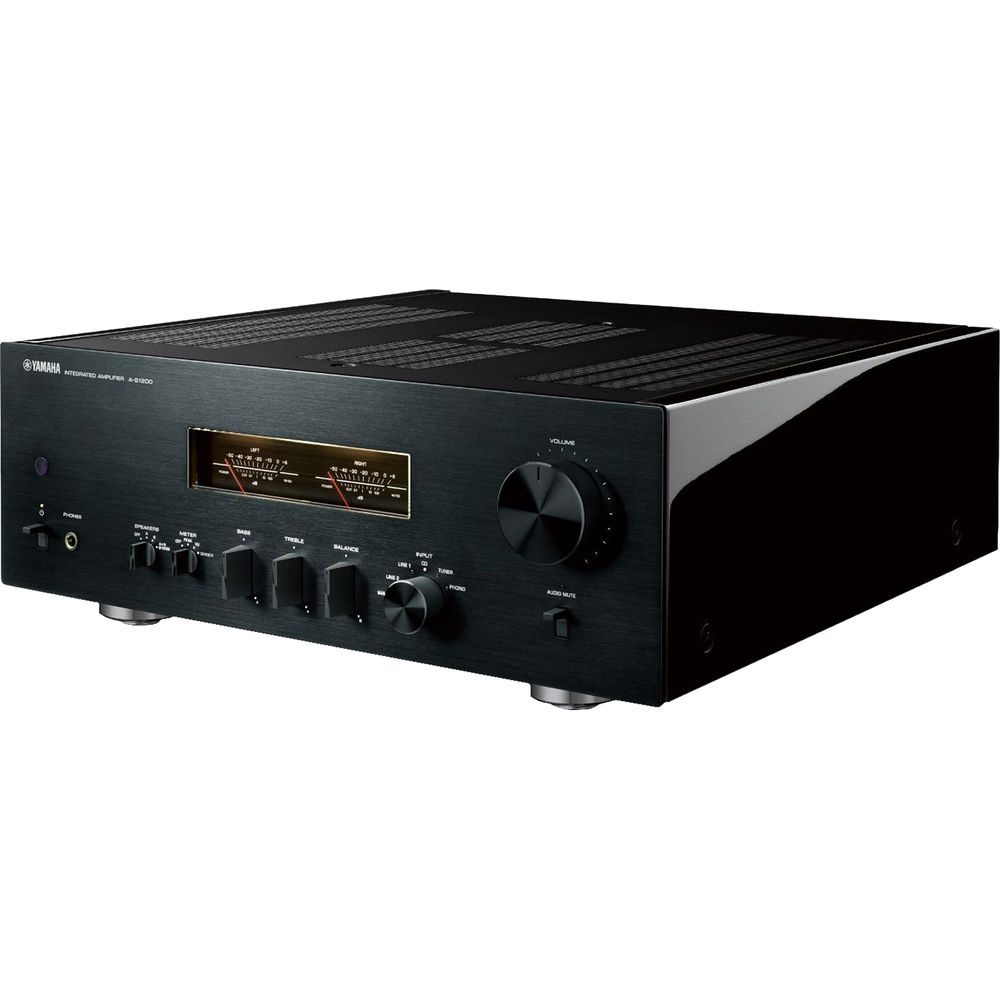

Yamaha A-S1200 Stereo 180W Integrated Amplifier (Black)

2-Channel Amplifier Configuration

90W per Channel Power Output @ 8 Ohms

Mechanical Ground Concept Chassis Design

Brass Speaker Terminals

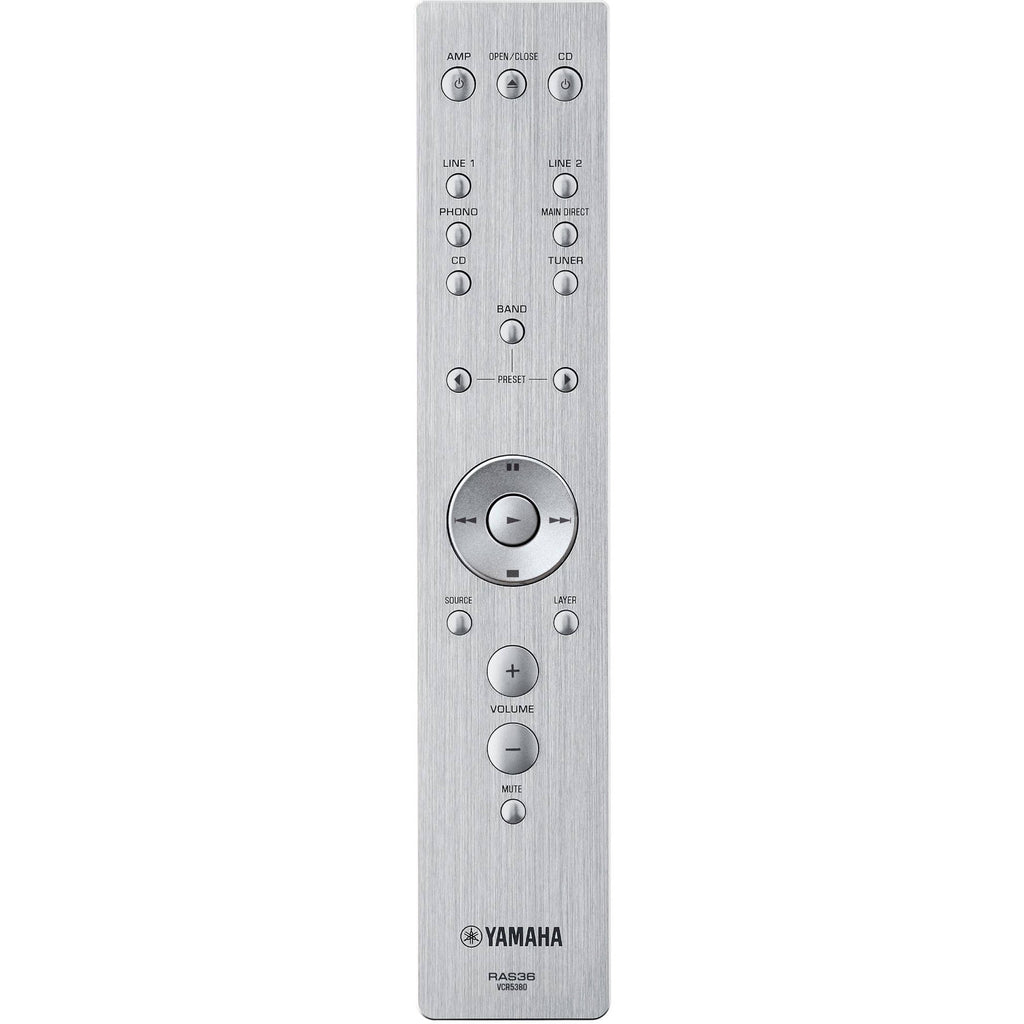

Enjoy enhanced stereo sound with your favorite pair of speakers and the black Yamaha A-S1200 Stereo 180W Integrated Amplifier . It outputs up to 90W per channel at 8 ohms and features a switchable MM/MC phono input in addition to its five stereo RCA inputs. A 1/4" headphone jack with discrete amplification enables private listening. The A-S1200 includes a remote control as an added convenience.

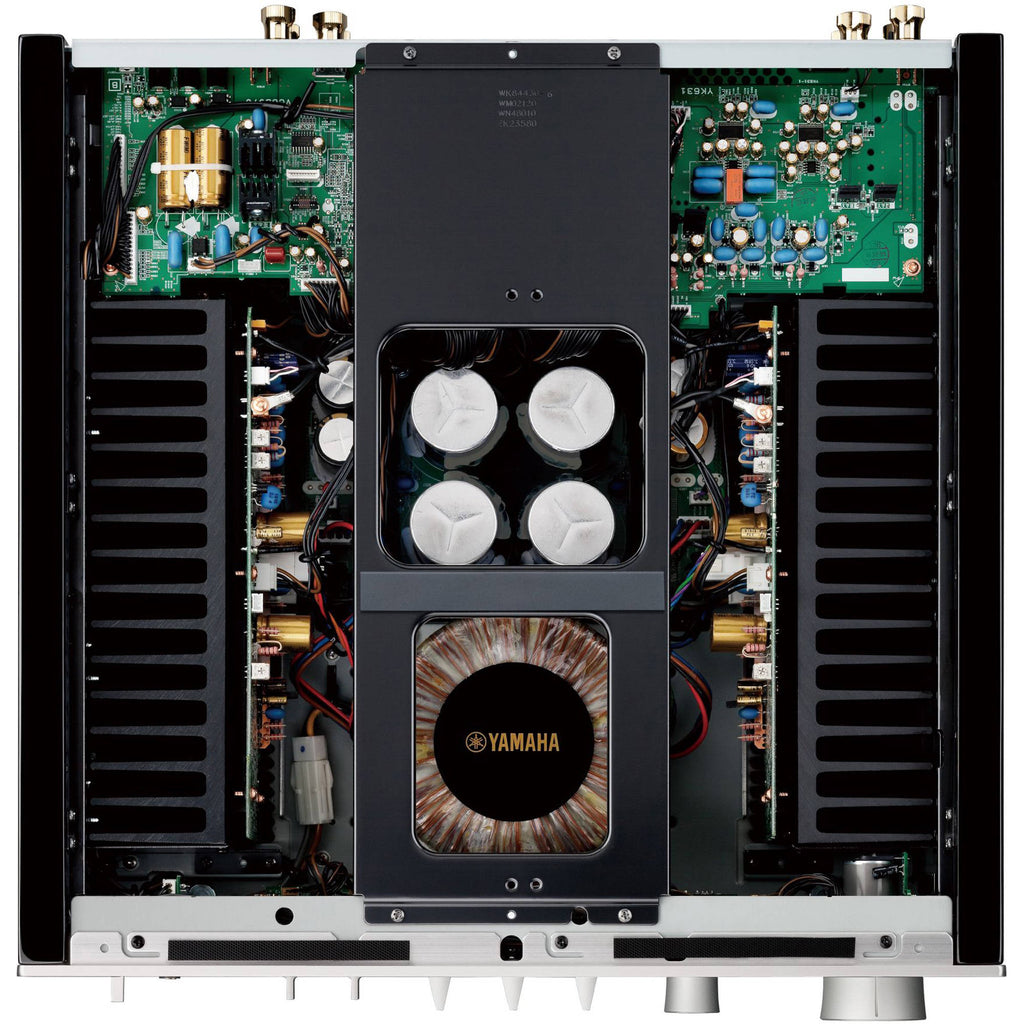

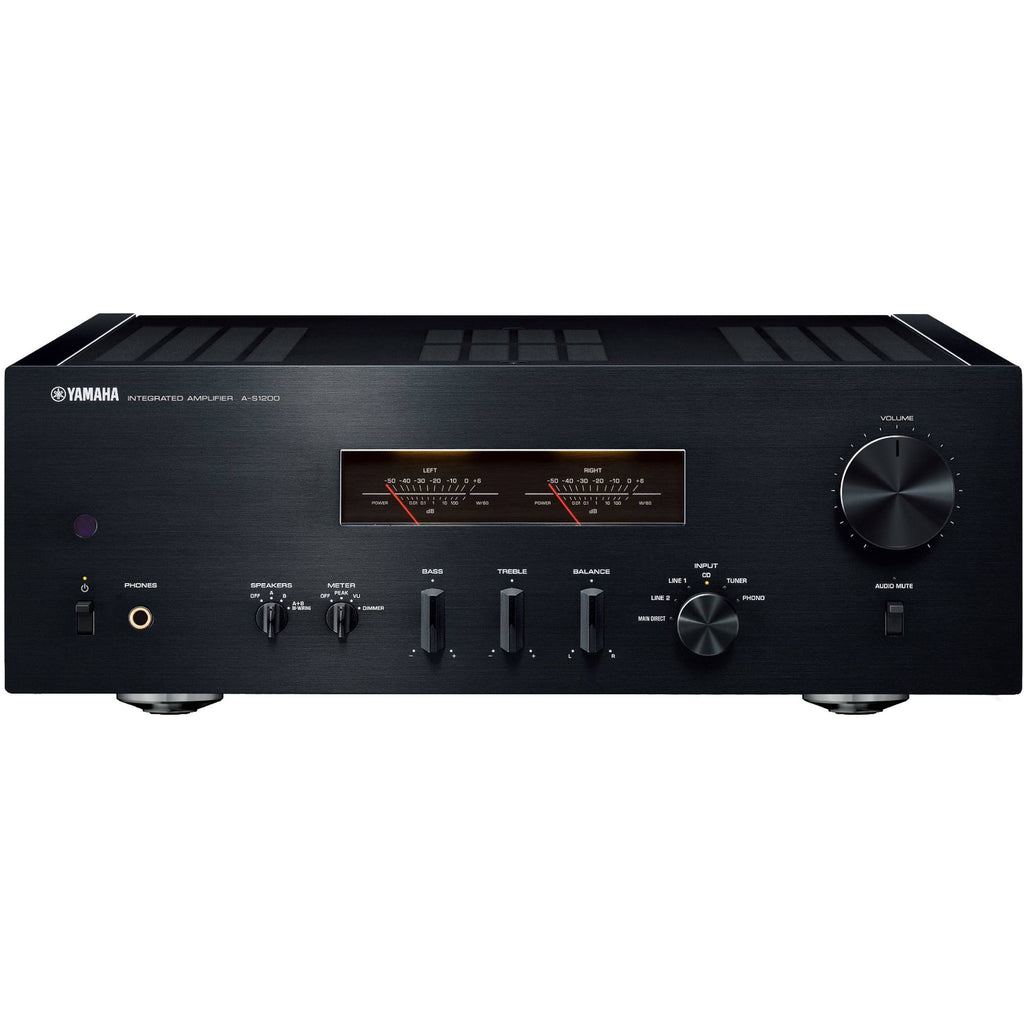

Toroidal Transformer The toroidal transformer in the A-S1200 is designed to provide technical proficiency and musicality. Combined with an array of audiophile-grade hi-fi features and components, this transformer helps ensure you get the musical emotion you expect. Level Meters The level meters are both a nod to the nostalgic era of hi-fi and demonstrate the return of pure hi-fi for today's enthusiasts. Visually presenting the dynamics and pulse of the music, the level meters are designed to provide a warm feeling through their softly illuminated LEDs. Open Sound Stage The open sound stage is engineered to provide a musical experience similar to being at a live performance. Thick Ground Connection Wires The amplifier's low impedance design, aided by the thick ground wires, helps present an open, natural soundstage. Pure Brass Speaker Terminals Cut directly from pure brass, the speaker terminals are designed to comfortably fit in your hand for simple tightening to provide a secure connection. Mechanical Ground Concept The A-S1200 adopts a Mechanical Ground Concept, with the bolts of the feet welded directly to the main chassis, and the large heat sink, power transformer, and block capacitors bolted directly to the chassis. This design helps avoid unwanted vibration to achieve expressive and rhythmic bass, presenting you with the groove of the music. Chrome-Plated Iron Feet The chrome-plated iron feet help complete the rigid design of the amplifier. UPC: 027108958682

Configuration	Stereo
Power Output per Channel	Up to 90 W @ 8 Ohms, 20 Hz to 20 kHz, 0.07% THD Up to 150 W @ 4 Ohms Headphone Output: Up to 25 mW @ 32 Ohms, 1 kHz, 0.2% THD
Dynamic Power per Channel	105 W @ 8 Ohms 135 W @ 6 Ohms 190 W @ 4 Ohms 220 W @ 2 Ohms
Effective Output Level	Maximum, JEITA, 1 kHz, 10% THD, 8 Ohms: 2 x 120 W Maximum, JEITA, 1 kHz, 10% THD, 4 Ohms: 2 x 190 W
Total Harmonic Distortion	MC Phono to Line 2 Out: 0.02% (1.2 VRMS) Phono to Line 2 Out: 0.005% (1.2 VRMS) All Inputs Except Phono to Speaker Out: 0.035% (50 W / 8 Ohms)
Frequency Response	5 Hz to 100 kHz (+0, -3 dB) 20 Hz to 20 kHz (-0, -0.3 dB)
Damping Factor	≥250 (1 kHz, 8 Ohms)
Power Bandwidth	8 Ohms, 0.1% THD, 45 W, 2 Channels Driven: 10 Hz to 50 kHz
Tone Control	Bass Boost/Cut: 50 Hz, ±9 dB Bass Turnover Frequency: 350 Hz Treble Boost/Cut: 20 kHz, ±9 dB Treble Turnover Frequency: 3.5 kHz

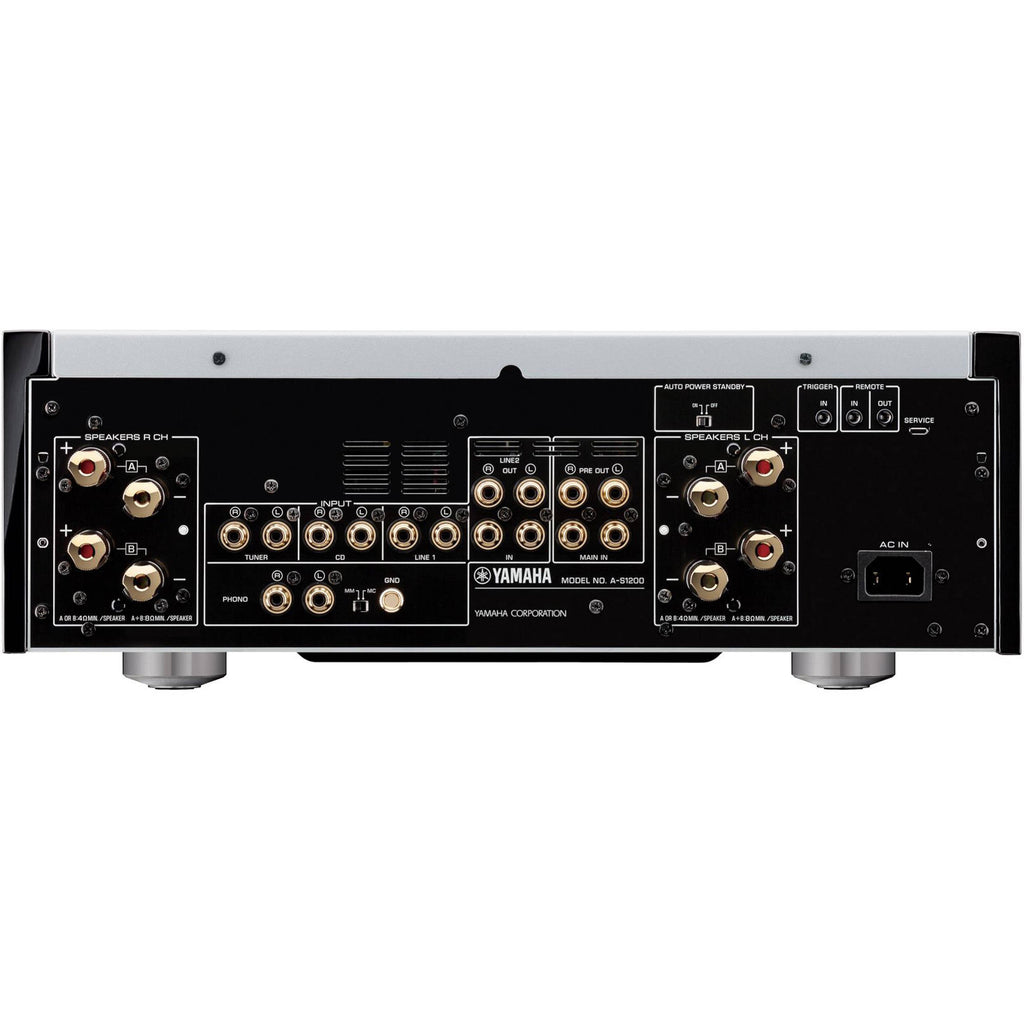

Inputs	6 x Stereo RCA Pairs (1 Phono with Ground Screw)
Output	1 x Stereo RCA Pair 1 x Stereo RCA Pre-Out Pair 1 x 1/4" / 6.35 mm Headphone (Front)
Speaker Connectors	4 x Binding Post Pairs (A/B)
Other Connectors	1 x 1/8" / 3.5 mm 12 V Trigger In 1 x 1/8" / 3.5 mm Remote In 1 x 1/8" / 3.5 mm Remote Out 1 x Micro-USB Service In
Input Sensitivity	Phono MC Input: 150 ?VRMS / 50 Ohms Phono MM Input: 3.5 mVRMS / 47 Kilohms Main Input: 1 VRMS, 47 Kilohms Other Inputs: 200 mVRMS, 47 Kilohms
Output Voltage	Line 2 Out: 200 mVRMS / 1.5 Kilohms Pre Out: 1 VRMS / 1.5 Kilohms
RIAA Equalization Deviation	Phono MM/MC: ±0.5 dB
Signal to Noise Ratio	Phono MC: 90 dB Phono MM: 96 dB Other Inputs: 110 dB
Residual Noise	IHF-A Network: 50 ?VRMS
Maximum Input Voltage	Phono MC, 1 kHz, 0.5% THD: 2 mVRMS Phono MM, 1 kHz, 0.5% THD: 50 mVRMS Other Inputs, 1 kHz, 0.5% THD: 2.8 VRMS
Channel Separation	Phono MC, JEITA, 1 kHz/10 kHz: ±66/77 dB Phono MM, JEITA, 1 kHz/10 kHz: ±90/77 dB Other Inputs, JEITA, 1 kHz/10 kHz: ±74/54 dB

Transformer	625 VA (Toroidal)
Power Requirements	120 VAC, 60 Hz
Operating Power Consumption	350 W
Standby Power Consumption	Standby Mode: 0.2 W Off Mode: 0.1 W
Dimensions (W x H x D)	17.13 x 6.18 x 18.23" / 435 x 157 x 463 mm
Weight	48.5 lb / 22 kg

Package Weight	59.7 lb
Box Dimensions (LxWxH)	24 x 23.88 x 10.5"
