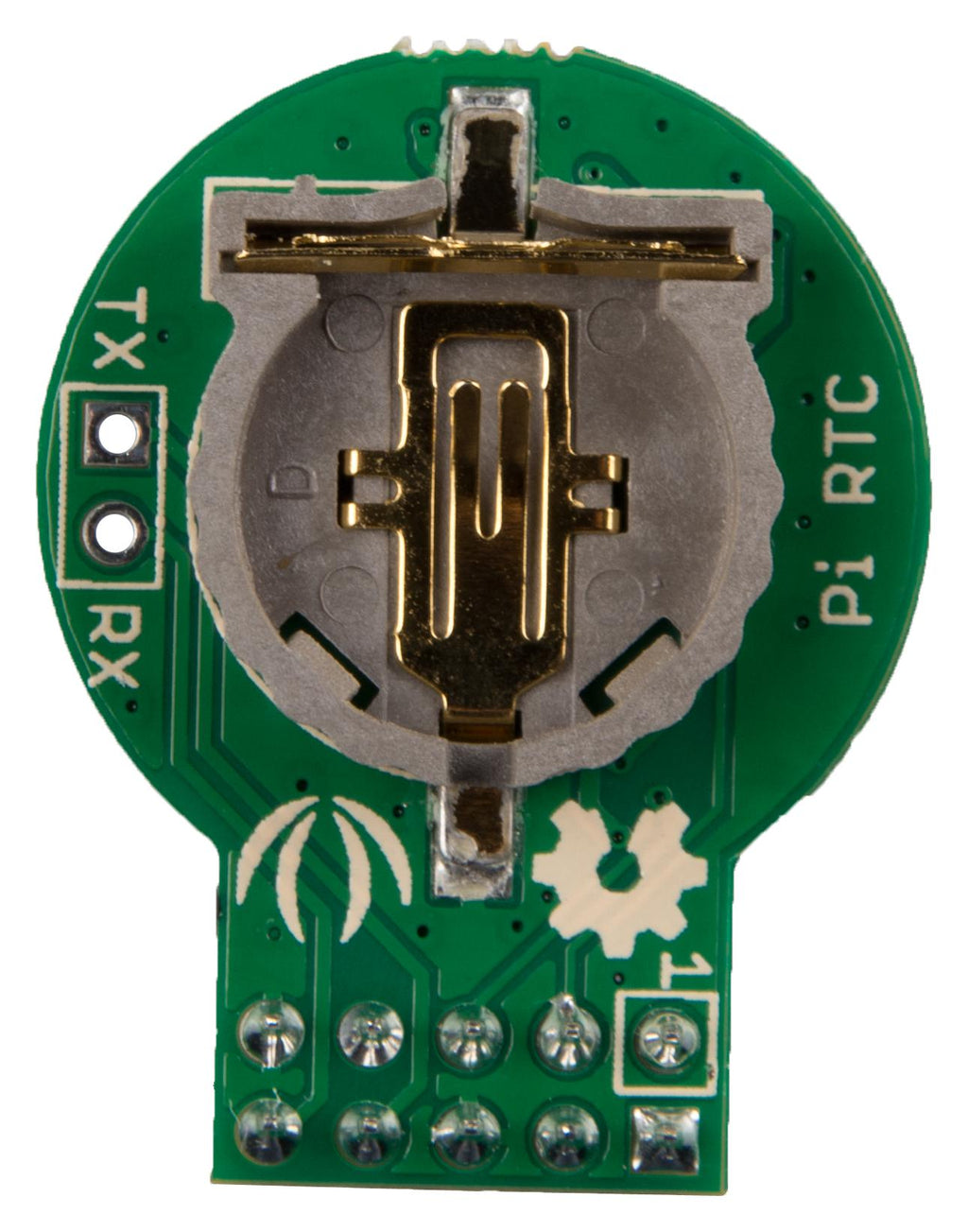

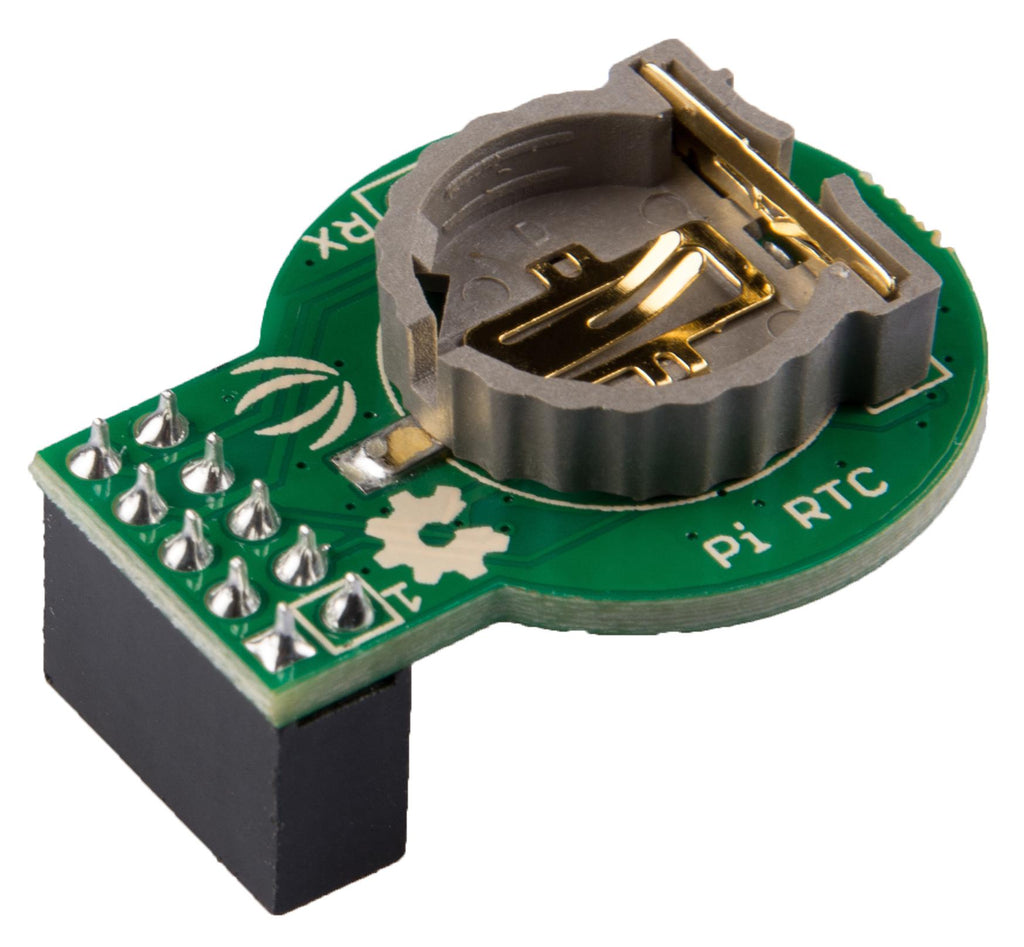

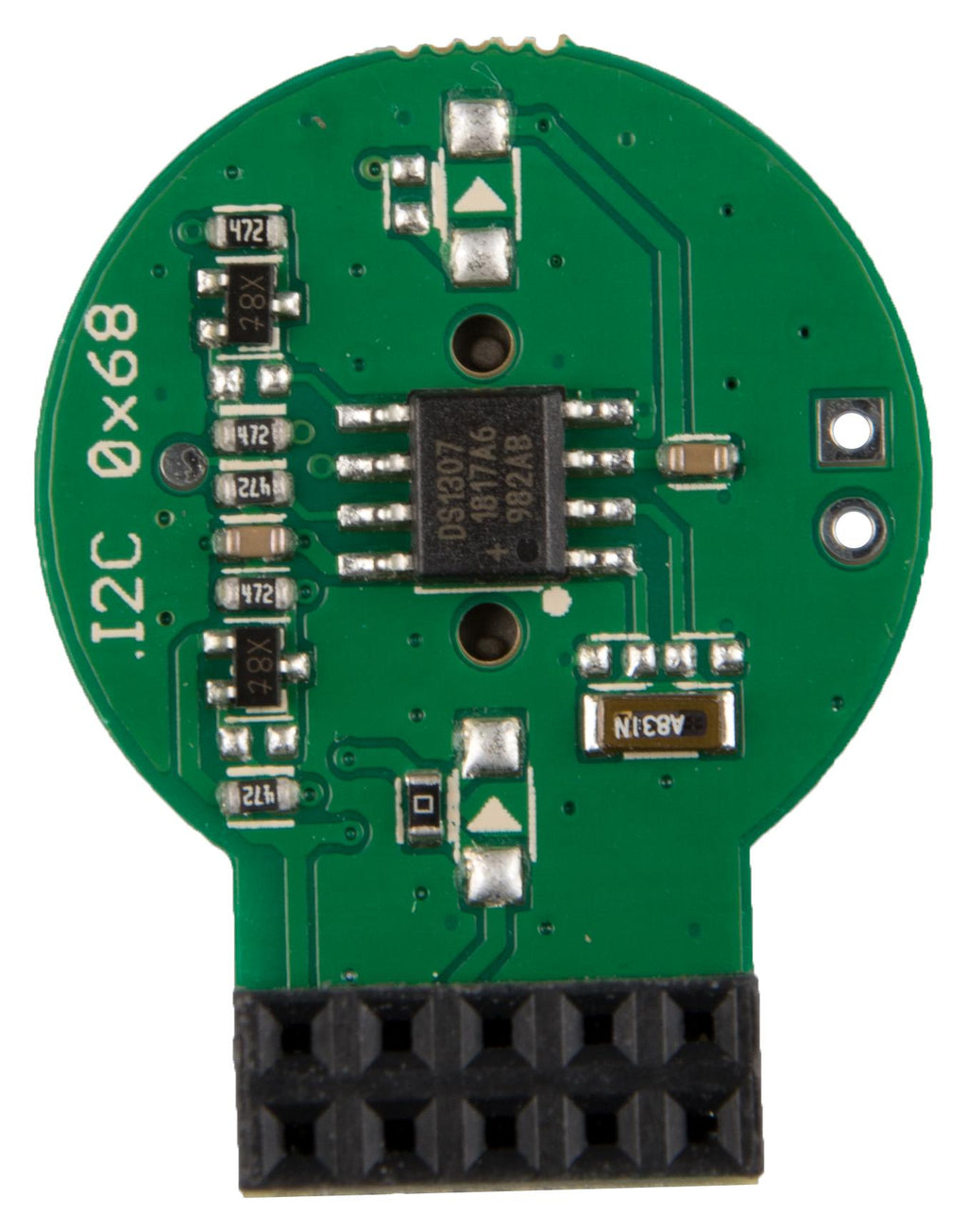

Pi RTC is based on the clock chip DS1307, it can provide a real-time clock(RTC) for raspberry pi via the I2C interface. Real-time clock of this module counts seconds, minutes, hours, date of the month, month, day of the week, and year with leap-year compensation valid up to 2100. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. If you want to keep this module timing when the Raspberry Pi is powered off, you need to put a 3-Volt CR1225 lithium cell in the battery-holder.
- Support Raspberry Pi 2/ 3 B/B+ Zero/4
- Support seconds, minutes, hours, day of week, month, year
- 56-byte, battery-backed, non-volatile (NV) RAM for data storage
- Programmable square wave output signal
- Automatic power-fail detect and switch circuitry
- Dimension is 30mm x 23mm x 15mm
Contents
1 x Pi RTC(DS1307), 1 x 2pin header.
Product details
| Accessory Type |
Pi RTC |
| For Use With |
Raspberry Pi 4 |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
103030277 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
