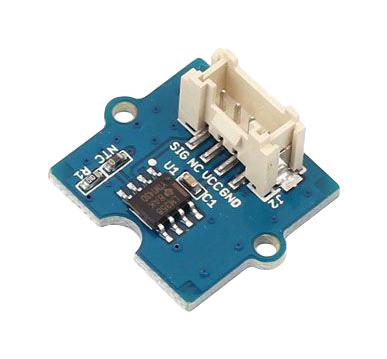

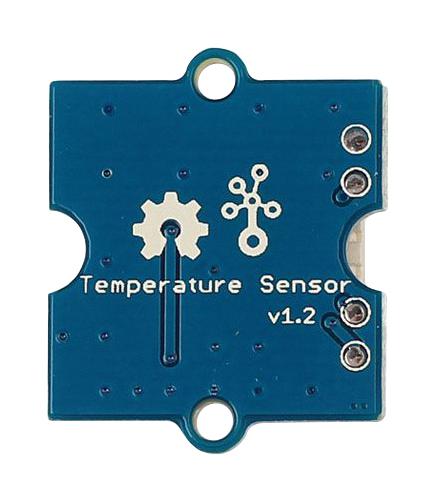

Grove - Temperature Sensor uses a thermistor to measure ambient temperature. The resistance of thermistor changes based on ambient temperature. This resistance value alters the output of a voltage divider which is measured by an analogue input pin and converted to a temperature value. The operating range is -40 to 125°C , with an accuracy of 1.5°C .

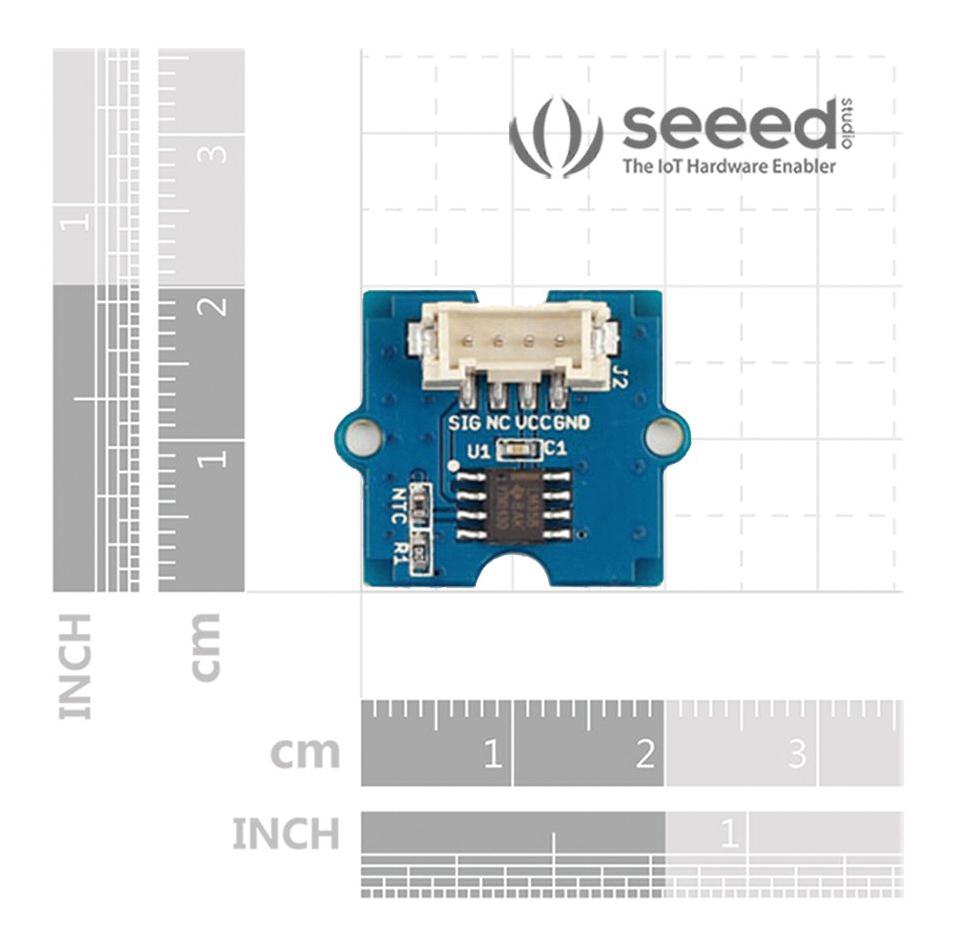

- Dimension is 24mm x 20mm x 9.8mm
- Operating voltage range from 3.3V to 5V
Contents

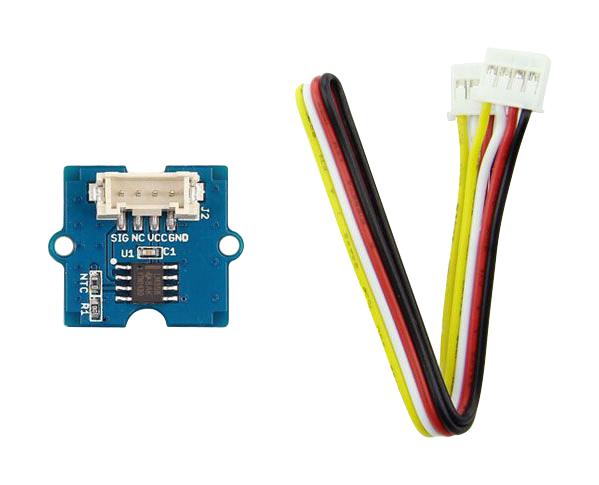

Grove - temperature sensor x 1, Grove cable x 1.
Product details
| Accessory Type |
Temperature Sensor Board |
| For Use With |
Arduino, Raspberry Pi & ArduPy Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020015 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
