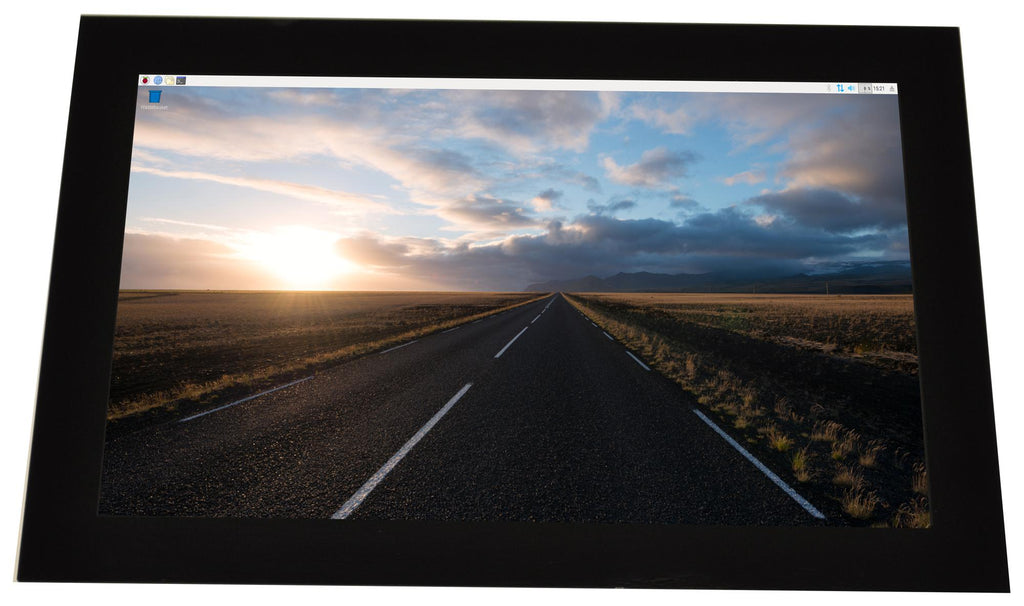

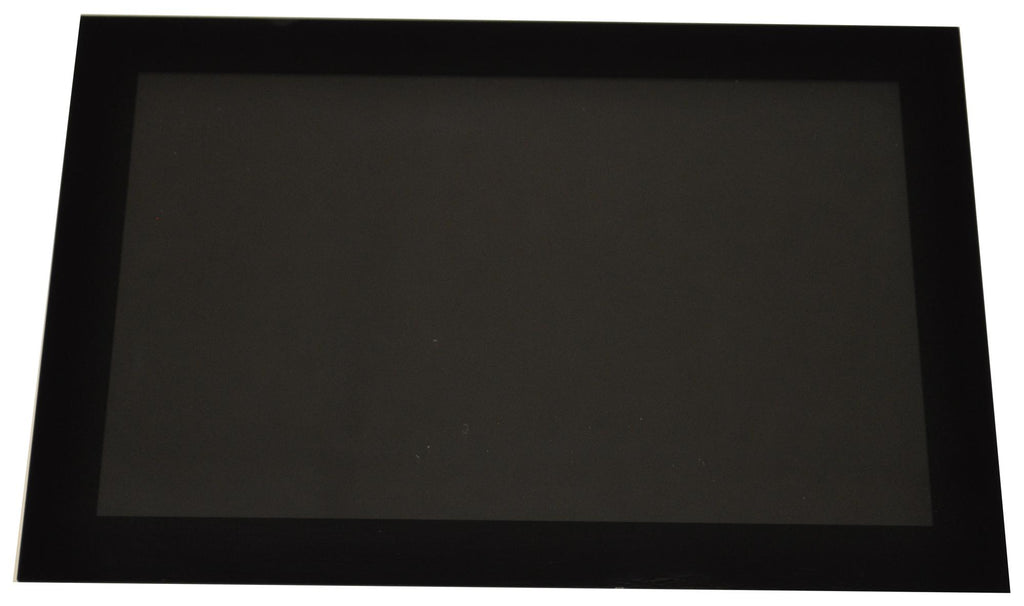

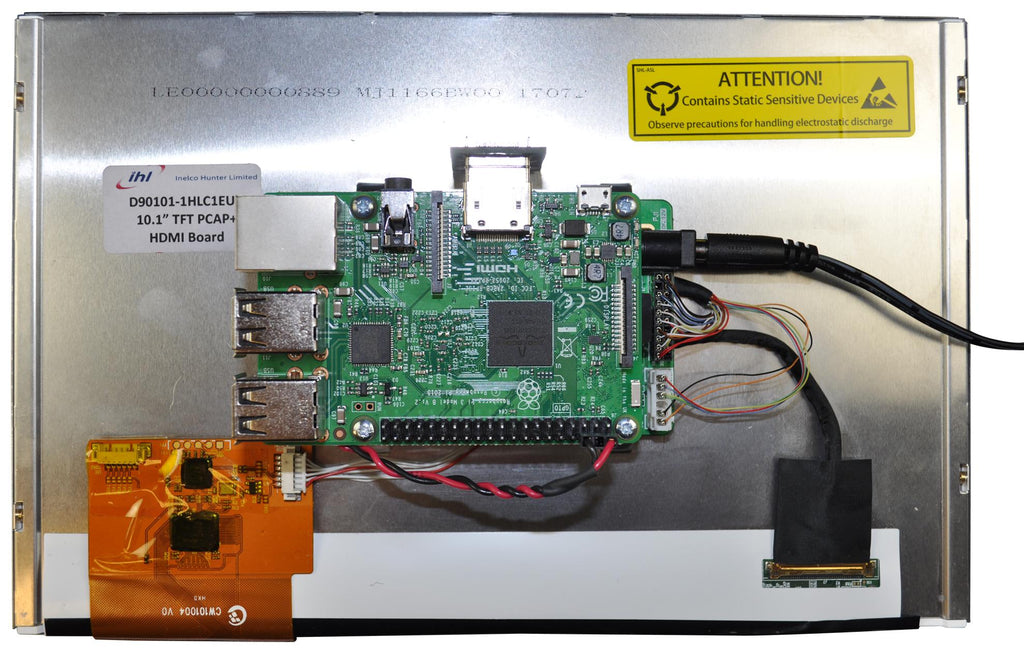

Pre-assembled 10.1" HDMI touchscreen display kit, that delivers a simple display solution for a wide range of applications. High definition capacitive touchscreen with support for pinch, zoom and rotate functions. The Raspberry Pi can be mounted onto the rear of the interface PCB using the supplied pillars and screws for easy integration.
- Capacitive multi-finger support with pinch, zoom and rotate functions
- High definition 1280x800 resolution, 450cd/m² brightness
- IPS panel for wide viewing angles
- Connects via the Raspberry Pi HDMI port
- USB or I2C touch interface
- Single PSU for Pi and display unit
- Viewing area: 137x238mm
- Dimensions (HxWxD): 174x255x9mm
Contents
Display, HDMI connector, power cable, USB/I2C interface cable, Micro USB cable, screws and supports
Product details
| Accessory Type |
10.1" HD IPS PCAP Display System- WXGA |
| For Use With |
Raspberry Pi |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
TOUCHSCREEN 10.1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
