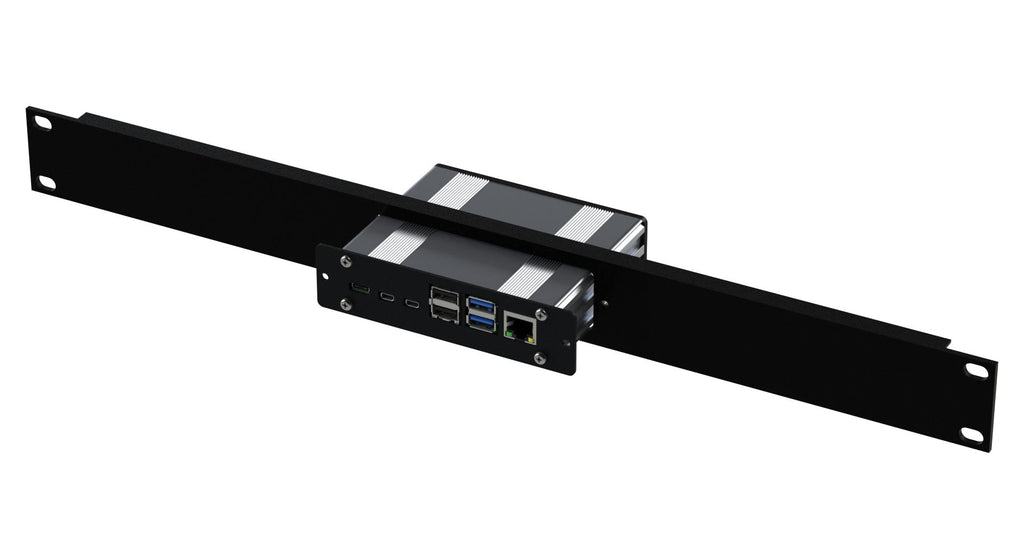

Multicomp PRO MP007511 Rack Panel Aluminium 1U 19" Extruded Raspberry Pi4

MP007511 is the 19" Rack solution for housing the Raspberry Pi 4. This item includes 1 x Cut-out and 1 x PI-Box Pro 4 case with Heatsink Kit (MP004561).

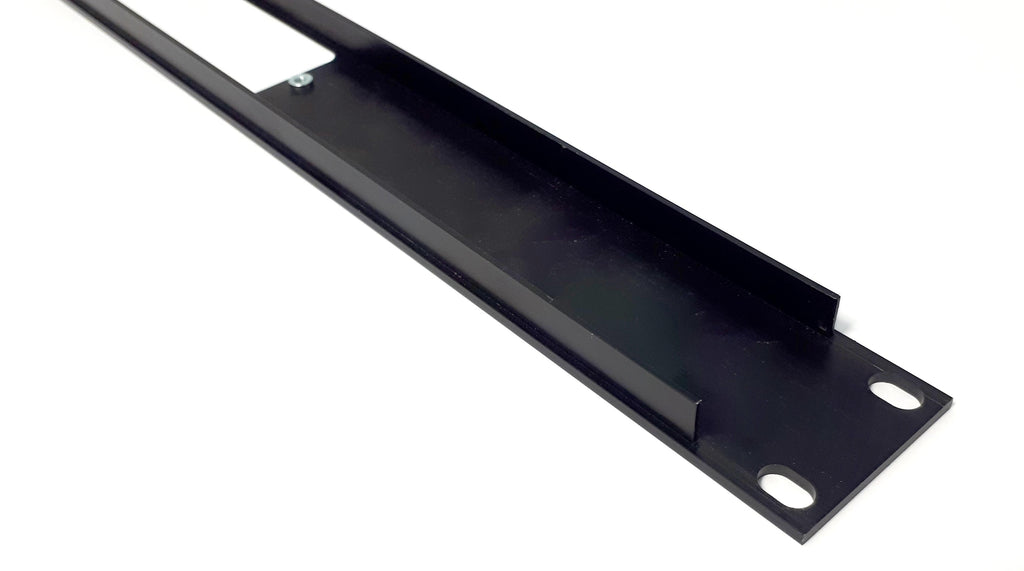

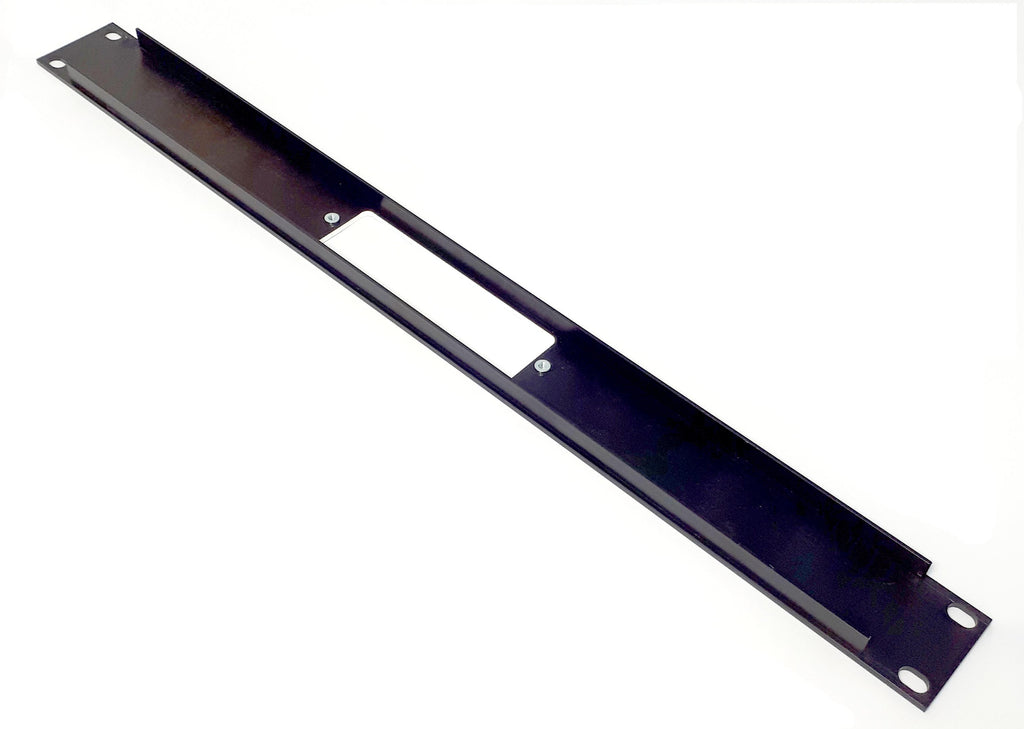

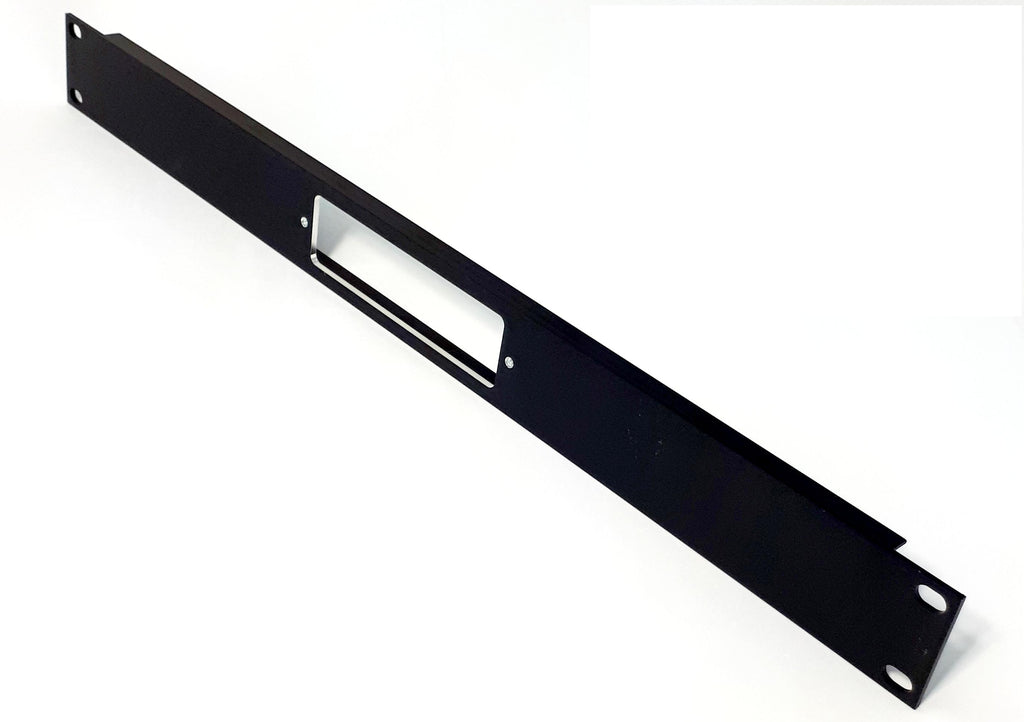

• A 1U 19" extruded aluminium rack panel milled to fit a removable PI-Box Pro 4 unit(s)
• 1 unit version
• Rack Panels are available in black anodise with a brushed finish
• Front End Plate material: Aluminium 5005 sheet
• Front End Plate finish: Black anodised 10µm
• Front End Plate thickness: 1.5mm

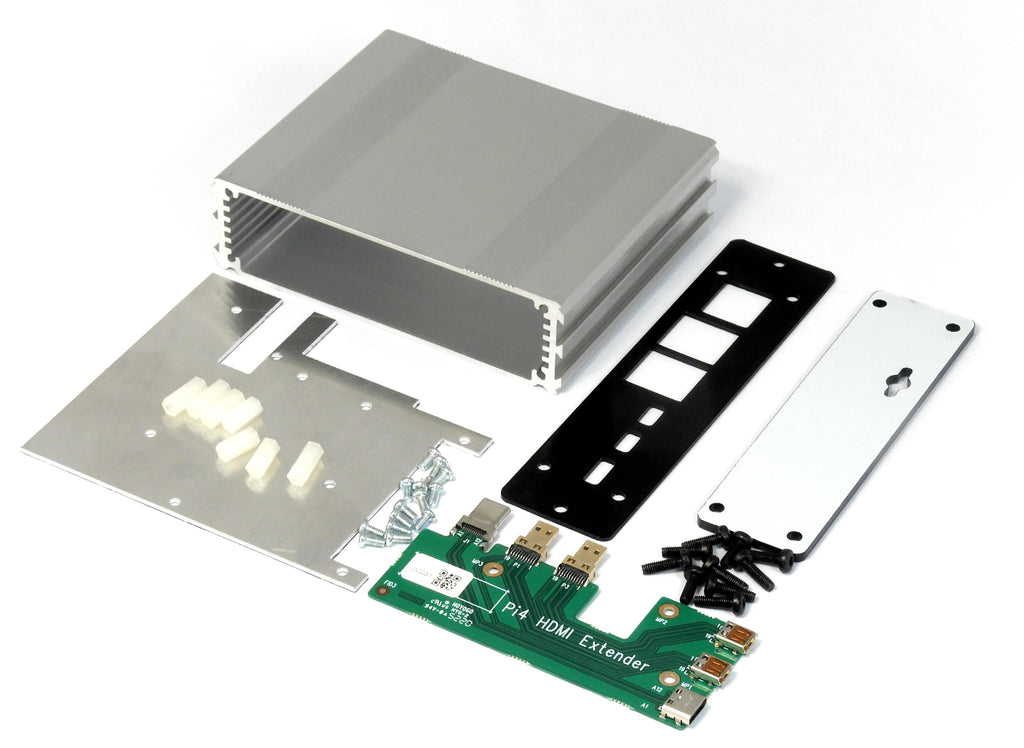

• PI-Box Pro 4 case includes heatsink kit and Extender Board
• PI-Box Pro 4 Extrusion made from Aluminium 6063 T6 (HE9) with a Silver anodised 5µm finish
• PI-Box Pro 4 rear end plate made from 3mm black acrylic to enable Bluetooth and Wi-Fi signals from the Raspberry Pi 4

Applications

Consumer Electronics, Automation & Process Control, Factory Automation, Industrial, Industrial Automation Control, Mechanical, Utilities

Contents

x1 Rack Front, Black, with 1 cut-out x1 Pi-Box Pro 4 with Heatsink kit (MPN: MP004561)

Footnotes Separate Pi-Box Pro 4 with Heatsink kit (MPN: MP004561) is our Order Code 3489263

Other details

Brand	MULTICOMP PRO
Part Number	MP007511
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
