Description
Product Overview

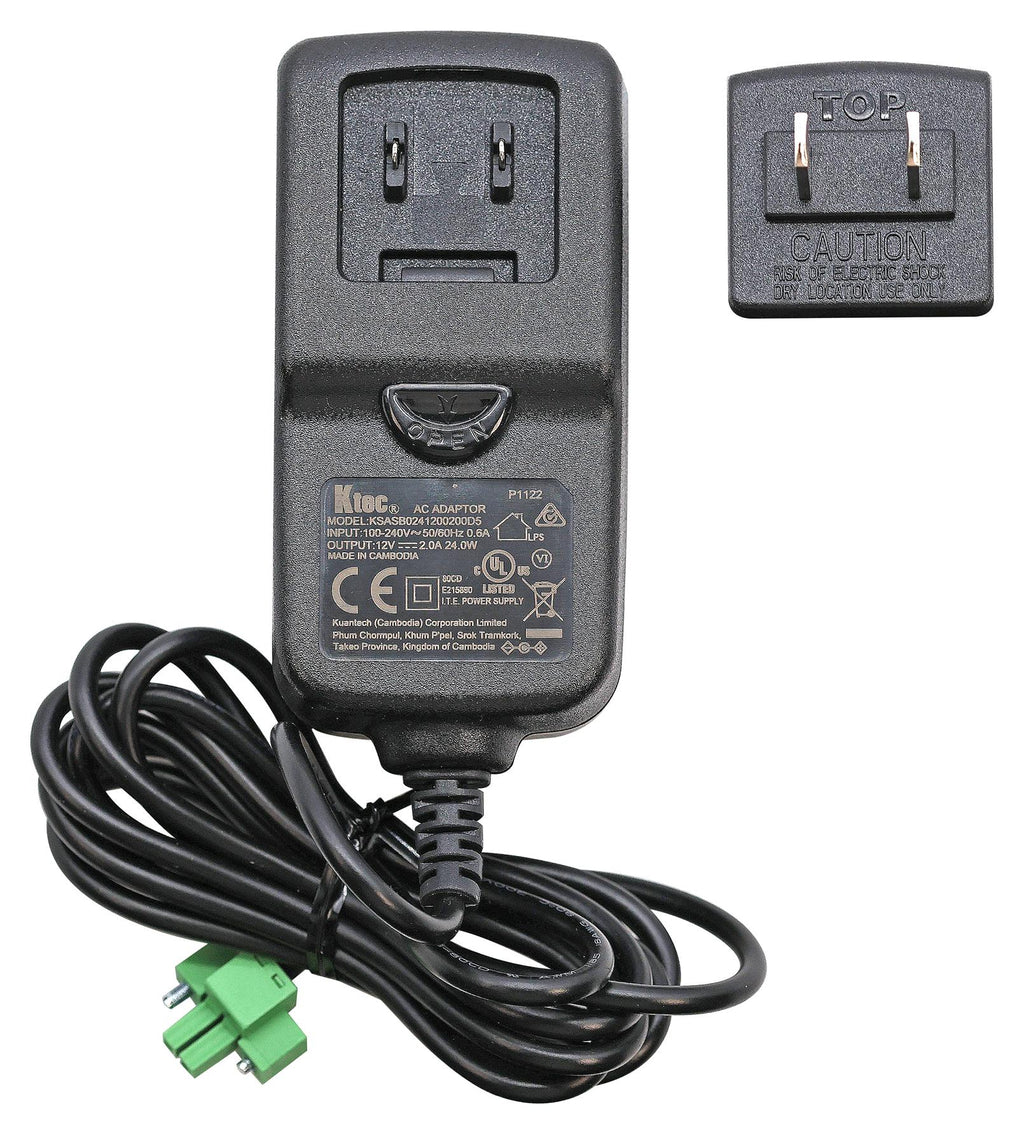

ED-PSU1202-US-3.5PL is an ED-PSU1202 series, single-phase, 12V, 2A output power supply. Support Raspberry Pi Compute Module IO Board and all of EDATEC�s 12V input computers.
- 100-240VAC 50/60Hz input and 50/60Hz±3Hz rated input frequency
- 29.1W max input power, 0.075W max power consumption (no-loading)
- Over-voltage, short-circuit & overcurrent protection
- 24Wrating output power
- 0.6A max rated input current
- Input current (no-loading) is lesser than or equal to 25mA
- ±5% line regulation
- 150mVp-p ripple and noise
- Operating temperature range from 0 to 40°C
- USA plug and 3.5mm pitch Phoenix with lock
Product details
Other details
| Brand | EDATEC |
| Part Number | ED-PSU1202-US-3.5PL |
| Quantity | Each |
| Technical Data Sheet EN |  |
