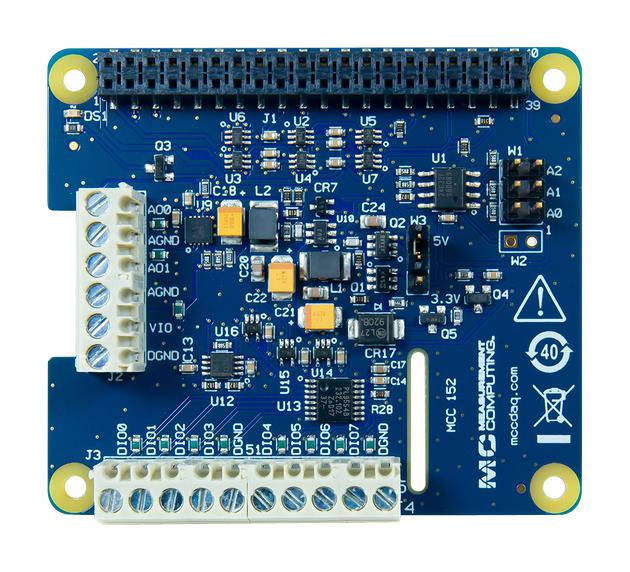

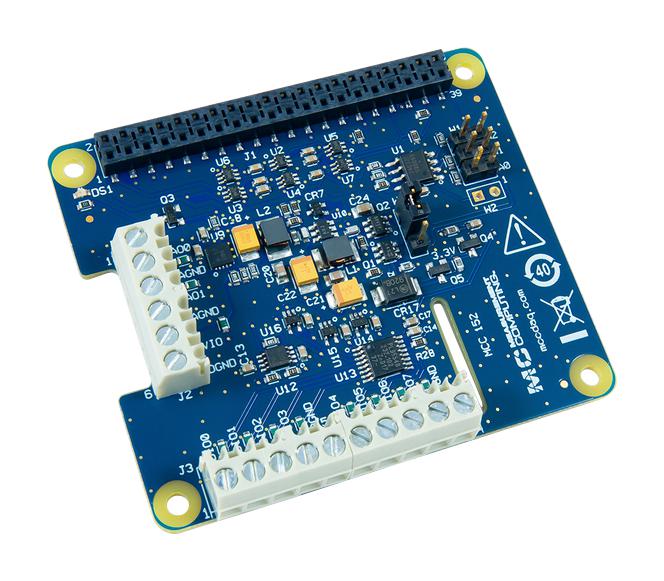

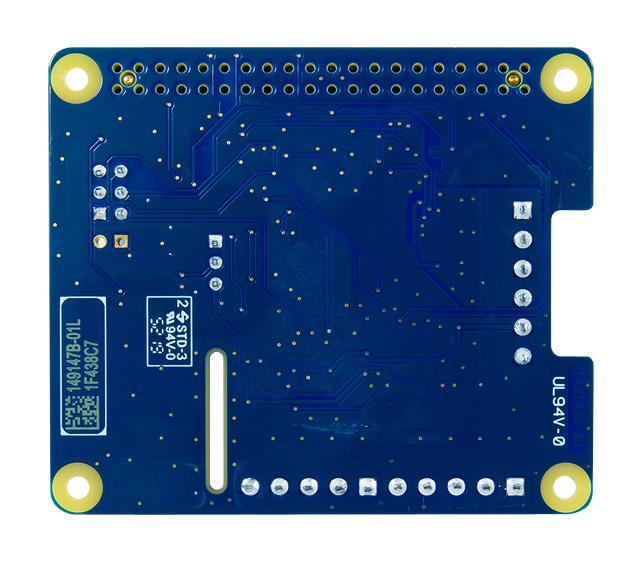

The Measurement Computing MCC 152 is a voltage output and digital input/output HAT (Hardware Attached on Top) designed for use with Raspberry Pi®. The MCC 152 provides two 12-bit analogue outputs with a 0V to 5V output range and 5 mA output drive, sourcing. Both outputs can be updated simultaneously with software. It provides eight bidirectional digital bits. Each digital bit is configurable for pull-up or pull-down, or can be disabled. Each output bit can source 10mA and sink 25mA. The input polarity is software programmable for normal (active high, default) or inverted logic (active low). HAT configuration parameters are stored in an on-board EEPROM that allows the Raspberry Pi to automatically set up the GPIO pins when the HAT is connected. The open-source MCC DAQ HAT Library of commands in C/C++ and Python allows users to develop applications on the Raspberry Pi using Linux. Console-based and user interface (UI) example programs are available for each API.
- Two 12bit simultaneous voltage outputs
- 5mA output drive, sourcing
- 0.8V/µs slew rate
- Eight bidirectional digital bits
- 5V / 3.3V operation; CMOS input thresholds
- Programmable input polarity
- Screw terminal connections
- MCC 152 can interface with 3.3V or 5V logic types
- MCC DAQ HAT Library supports operation with multiple MCC DAQ HATs running concurrently
Contents
1 x MCC152, 2 x20 Header connector (plugs into the 40 pin GPIO connector on the Pi board), 3 x Jumpers, 4 x Standoffs, 4 x Screws, 4 x Nuts, Printed insert: Getting Started with MCC DAQ HATs.
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
Raspberry Pi |
| Kit Contents |
Voltage Output and DIO DAQ HAT Board |
| Product Range |
- |
Other details
| Brand |
DIGILENT |
| Part Number |
6069-410-003 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
