Description
YoloLiv V100 Overview
- 1Description
- 2
- 3Vertical Streaming
- 4Professional Image Quality
- 5HDMI and USB Output
- 6Multiple Preset Positions
- 7Remote Control
By Photo's
Jennifer Hahn
If you want to add high-definition PTZ cameras to your already existing YoloBox setup, the

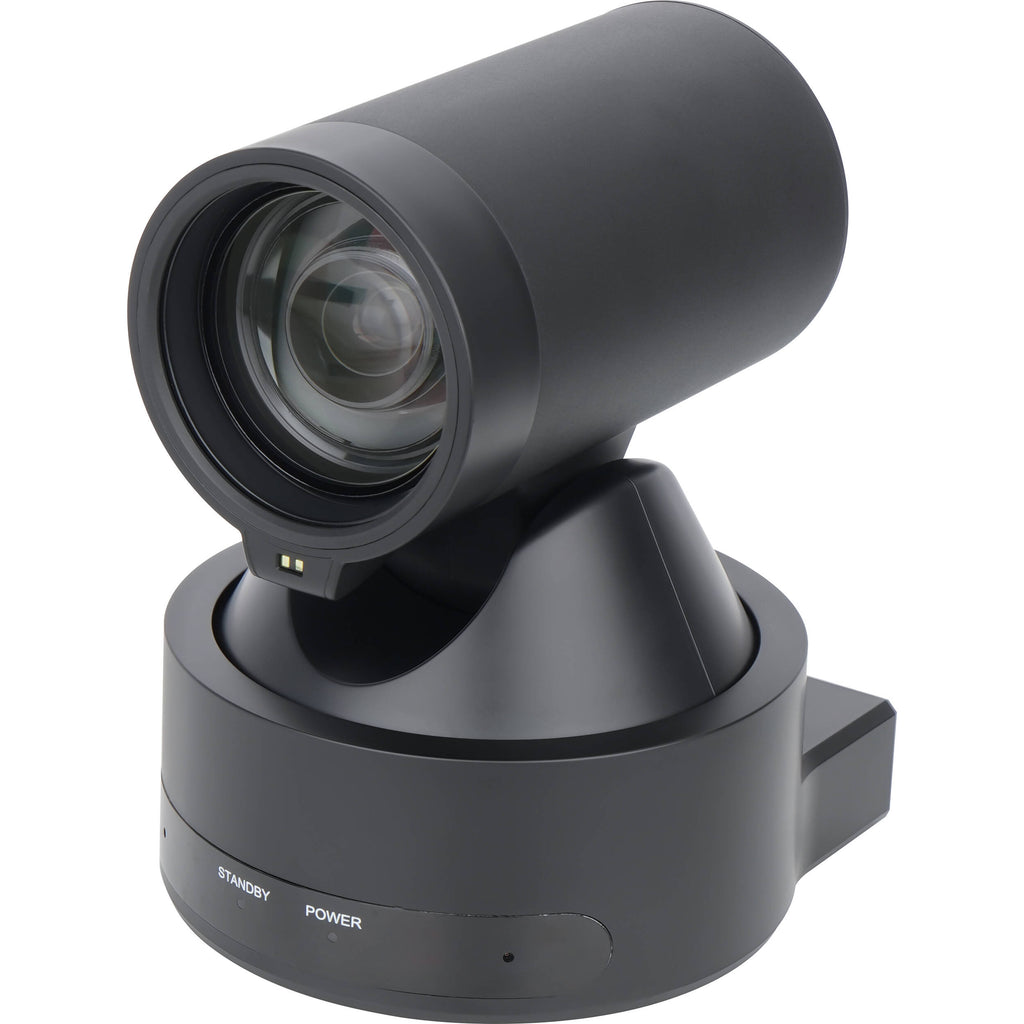

YoloLiv Verticam 1080p Vertical Live Streaming PTZ Camera with 12x Optical Zoom can integrate seamlessly into your setup. The camera is easy to set up, and you can add more cameras, if needed, to provide a scalable production setup for live streams, conferences, events, education, and house of worship services.
Vertical Streaming
The Verticam captures a vertical image suitable for social media sites such as Instagram and TikTok.
Professional Image Quality
The 1/2.8" CMOS sensor captures up to 1080p60 video with noise reduction, backlight compensation, and enhanced low-light performance, and 4:2:2 10-bit pro color. The camera features a 12x optical zoom, a 16x digital zoom, and a 72.5° field of view to capture a wide area.

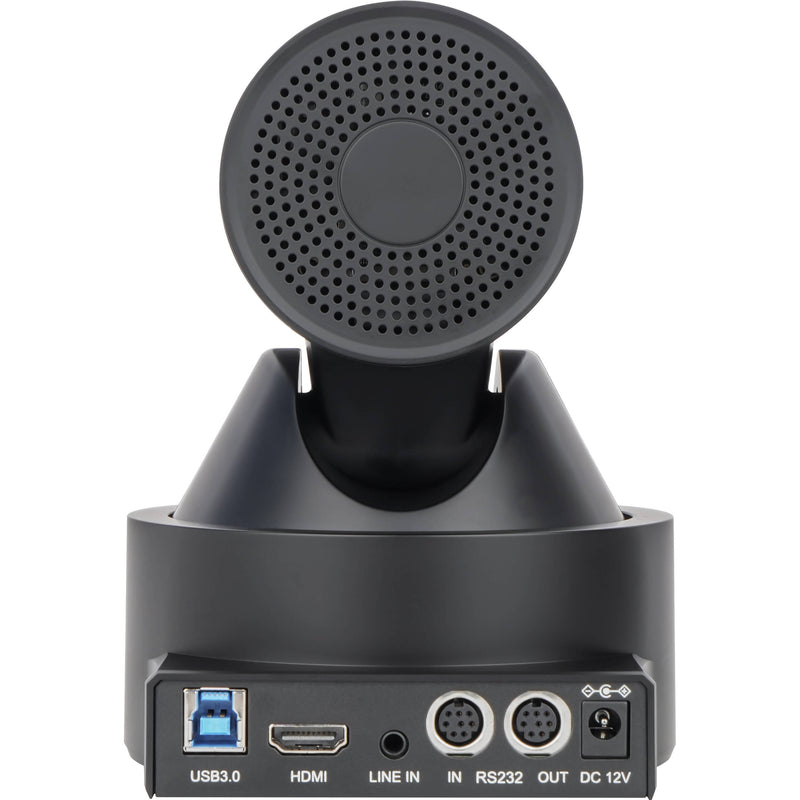

HDMI and USB Output
The camera outputs via USB-B and HDMI ports for easy output to a YoloBox for live streaming. You can also add analog audio to the stream using the 3.5mm line input.
Multiple Preset Positions
You can switch your camera positions easily with stored presets. Store and recall 255 specific pan/tilt/zoom positions quickly with your camera. Other features include instantaneous autofocus for panoramas and close-ups.
Remote Control
The camera support a wide rotation range of ±170° horizontally and of 30~+90° vertically. It can be controlled using its RS-232 I/O ports along with a separately available controller, which makes is ideal for a single operator.
In the Box
- YoloLiv Verticam 1080p Vertical Live Streaming PTZ Camera with 12x Optical Zoom
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Vertical Streaming
- Professional Image Quality
- HDMI and USB Output
- Multiple Preset Positions
- Remote Control
YoloLiv V100 Specs
Imaging
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus |
Exposure Control
| Shutter Type | Electronic Global Shutter |
| Shutter Speed | 1/30 to 10,000 Seconds |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
Lens
| Focal Length | 3.5 to 42.3mm |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 72.5° |
| Maximum Aperture | f/1.8 to 2.8 |
Video Capture
| External Recording Modes | 4:2:2 10-Bit via HDMI / USB HD (1920 x 1080p) at 25/29.97/50/60.00 fps HD (1280 x 720) at 50/60.00 fps |
| Embedded Audio | HDMI/ |
| Broadcast Output | NTSC/PAL |
Control
| Presets | 255 via RS-232 |
| Move Speed | Tilt: 0.44 to 15°/sec Pan: 1.61 to 75.56°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | Pelco-D Pelco-P RS-232 VISCA |
Interface
| Video I/O | 1 x HDMI 1.4b Output 1 x USB-B Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x D-Sub 8-Pin (RS-232) Control Input 1 x D-Sub 8-Pin (RS-232) Control Output |
Power
| Power I/O | 1 x DC (12 VDC) Input |
| Power Consumption | Device: 12 W |
Environmental
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
General
| Dimensions (W x H x D) | 6.2 x 4.8 x 4.8" / 157 x 121.2 x 121.2 mm |
| Weight | 2.2 lb / 1 kg |
Packaging Info
| Package Weight | 5.805 lb |
| Box Dimensions (LxWxH) | 10.9 x 8.5 x 6" |
