Description

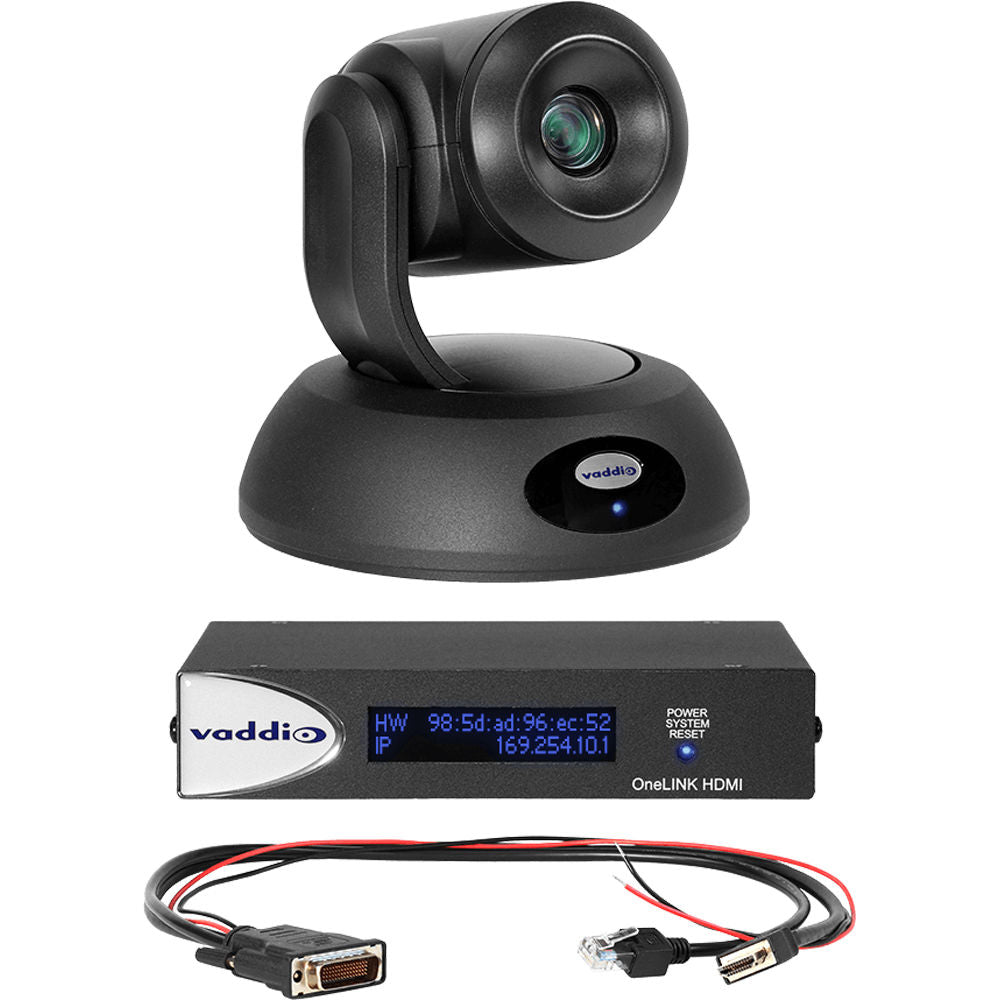

Vaddio RoboSHOT 12E Overview
Capture full motion video in conference rooms, training rooms, and classrooms with the black RoboSHOT 12E HDBT OneLINK HDMI System for Polycom Codecs from Vaddio. The camera is designed with 12x optical zoom and a 1/2.5" CMOS sensor and delivers high-definition 1080p/60 video resolution. Paired with the OneLINK HDMI Extension System, you can power, receive HDMI video from, and control your camera using a single Ethernet cable up to 328' long. For compatibility with Polycom, the system includes a 2' fan-out cable with the Codec side and a 3-pin phoenix-style connector.

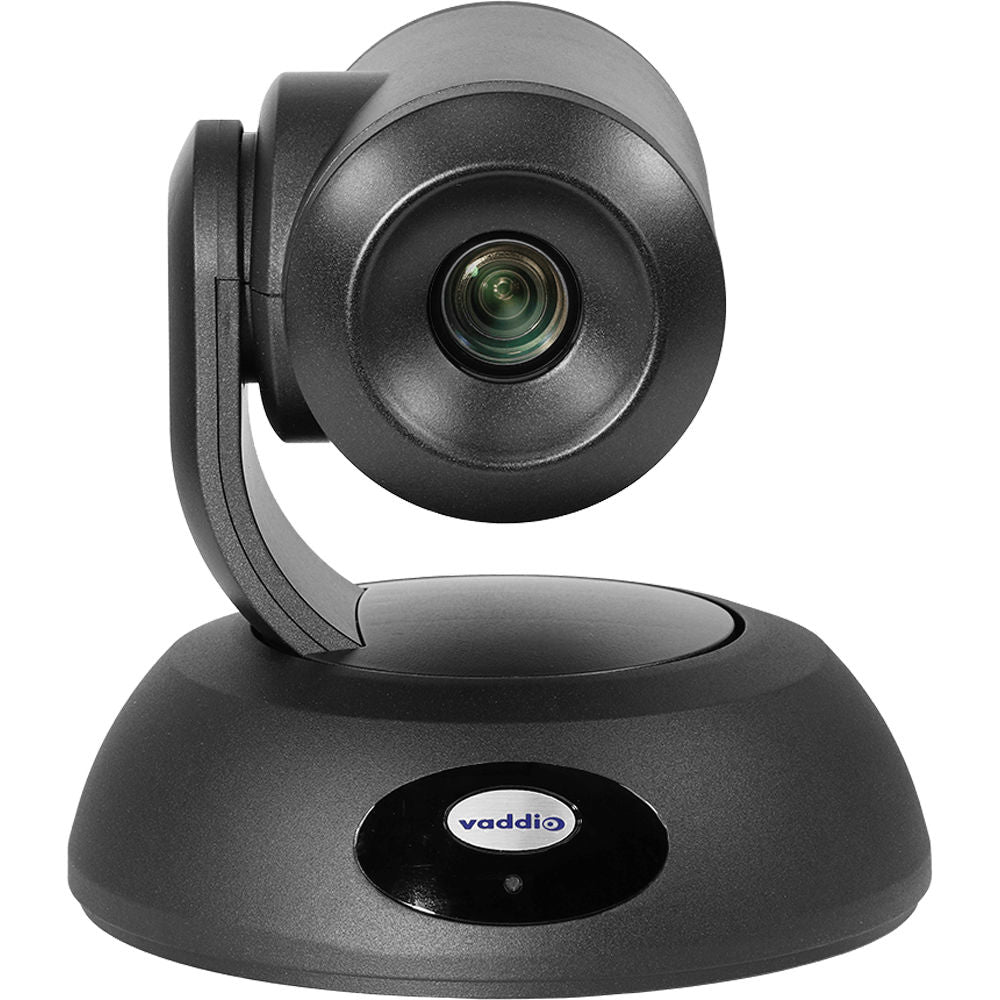

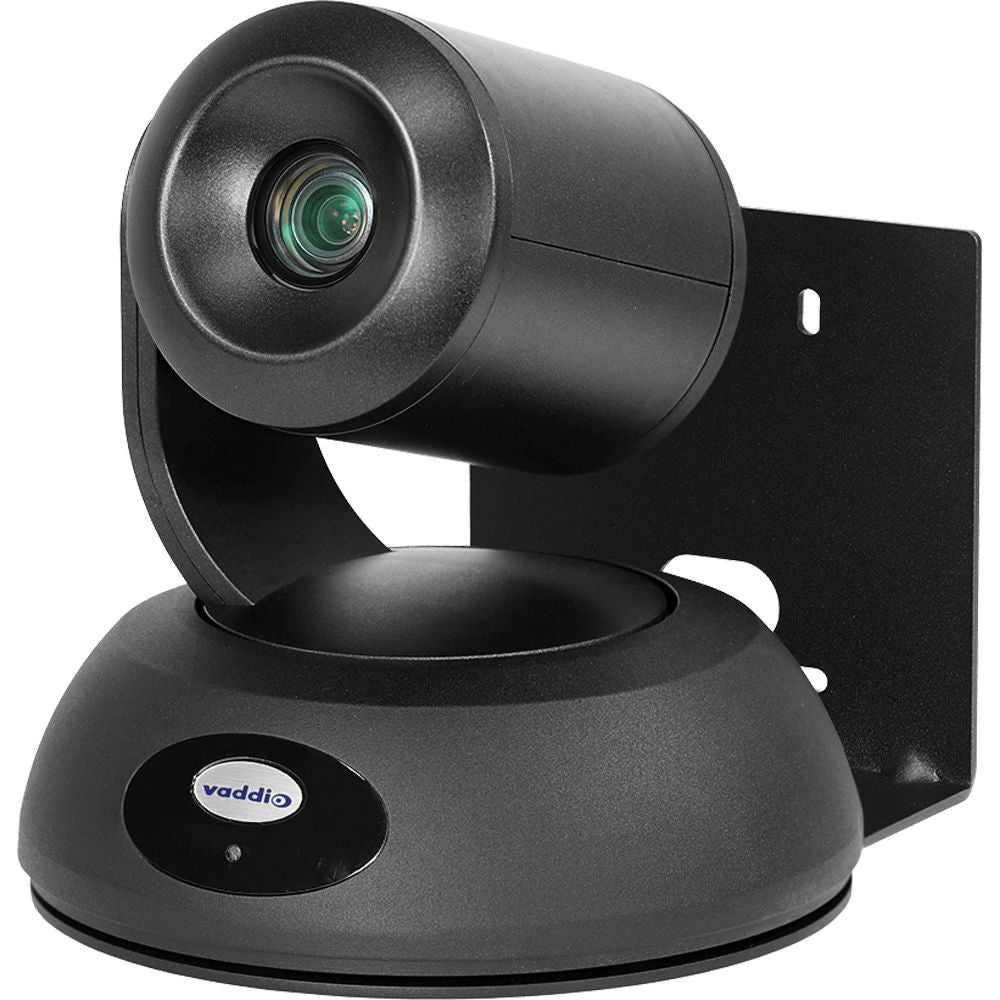

Vaddio RoboSHOT 12E HDBT IP Camera System (Black)
Capture full motion video in conference rooms, training rooms, and classrooms with the black RoboSHOT 12E HDBT IP Camera System from Vaddio. Designed with 12x optical zoom and a 1/2.5" CMOS sensor, the camera delivers high-definition 1080p/60 video resolution. It features image signal processing and a wide dynamic range for enhanced lighting in dimly lit conditions. For smooth and natural motion, the camera features tri-synchronous motion technology allowing all three axes of the camera to move simultaneously. This camera can be controlled via integration-ready Telnet, serial RS-232 control, or an included IR remote control.
The RoboSHOT 12E provides a web-based user interface allowing configuration, management, and control from anywhere in the world over the IP network making this camera ideal for remote management, network operating centers, and overall IT control. Simply enter the camera's streaming URL into any standards-based H.264, RTSP format media player. This camera also allows you to simultaneously stream live events over YouTube, Livestream, and Facebook with the HDBaseT, HDMI, and IP video outputs. To simplify cabling and extend installation distance, you can connect it directly to HDBaseT-compatible devices or pair it with Vaddio OneLINK receivers.
Aspect Ratio
IP (H.264) streaming: 16:9, 3:2, and 4:3
White Balance

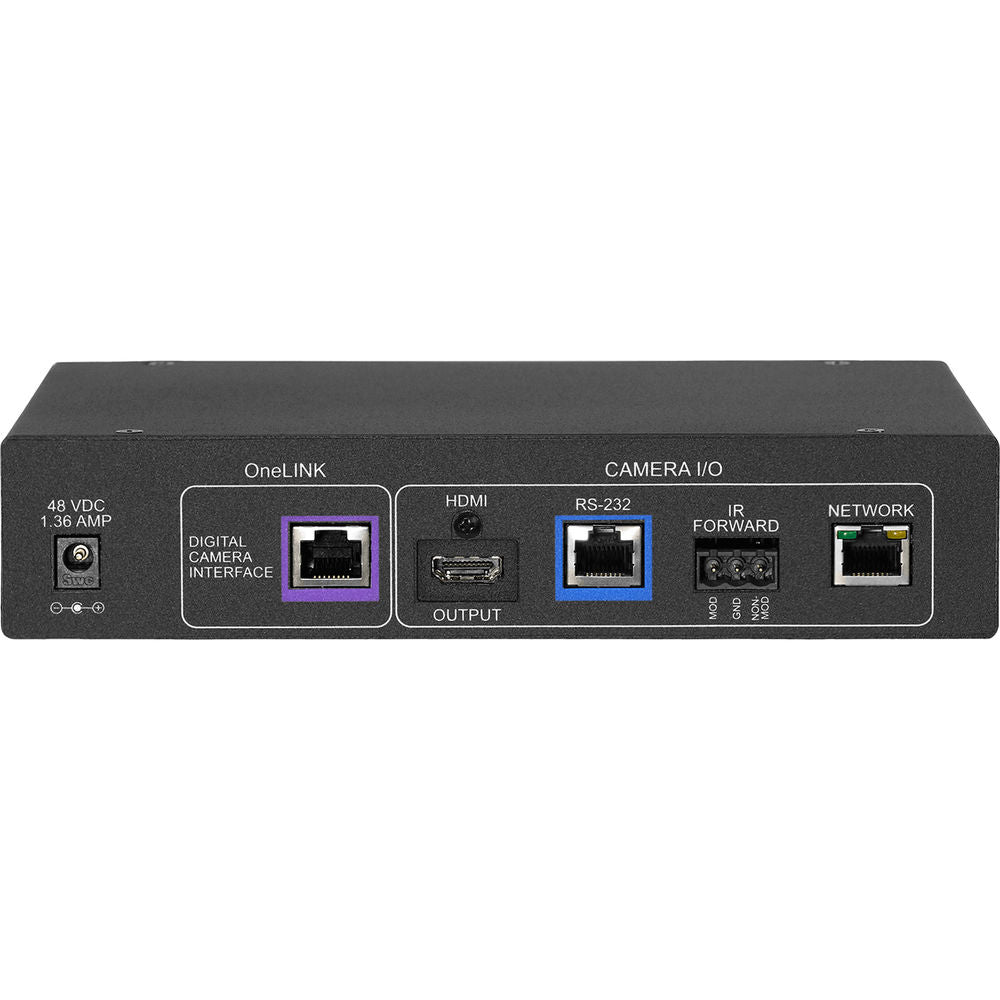

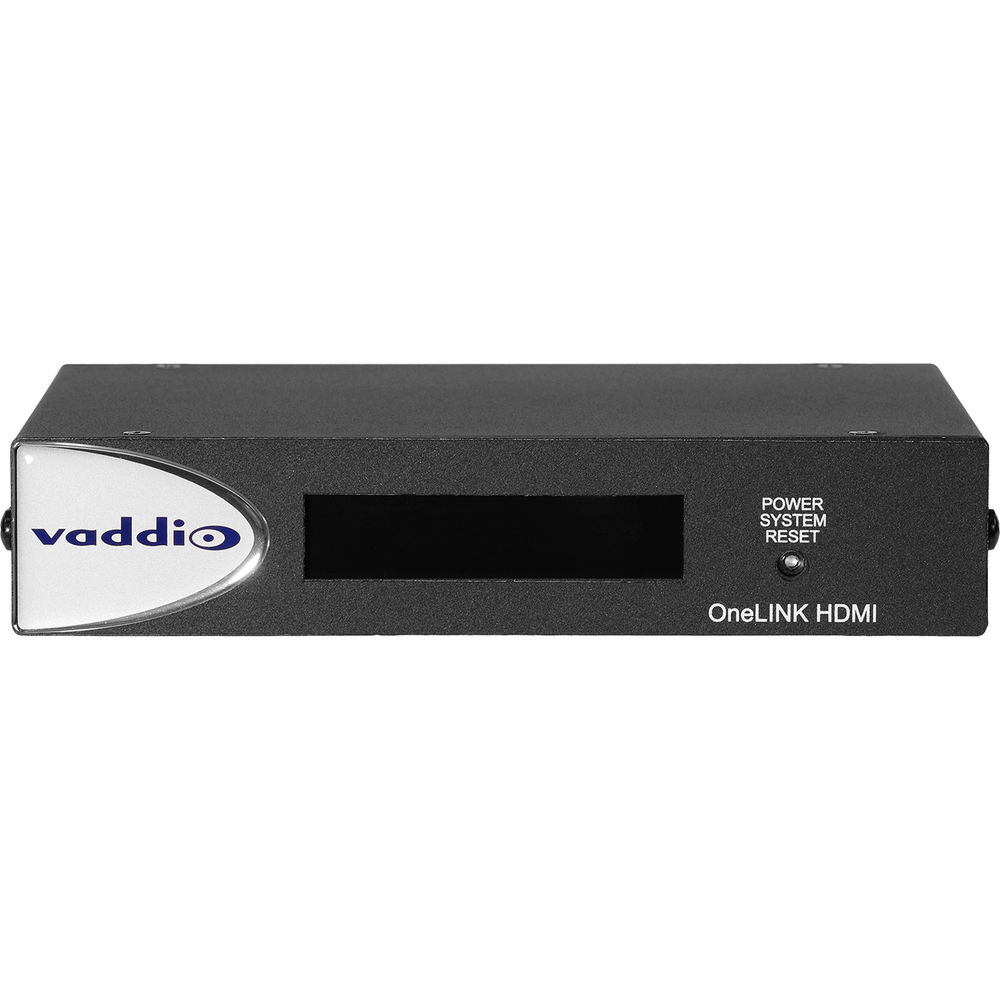

Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
The Vaddio OneLINK HDMI Extension System for HDBaseT Cameras is an interface that allows you to power, receive HDMI video from, and control your compatible HDBT camera using a single Ethernet cable up to 328' long. The interface connects to your network for control, or you can use an RS-232 controller (not included) instead. HDMI video, up to 1080p60, is transmitted from your HDBT compatible camera to the OneLINK interface, from where it is available over a standard HDMI port.
- Video, power, network, and control on a single Cat5e (or better) cable
- Supports cable runs up to 328'
- Works with RoboSHOT UHD HDBaseT cameras
- Bidirectional control via Ethernet and RS-232
- Transmits and receives HDMI video up to 1080p60
In the Box
- Vaddio RoboSHOT 12E HDBT IP Camera System (Black)
- PoE+ Midspan Power Injector
- Thin-Profile Black Wall Mount with Mounting Hardware
- IR Remote Commander
- Limited 2-Year Warranty
- Vaddio OneLINK HDMI Extension System for HDBaseT Cameras
- 48 VDC, 1.36A Switching Power Supply
- AC Cord Set
- EZCamera RS-232 Control Adapter
- Limited 2-Year Warranty

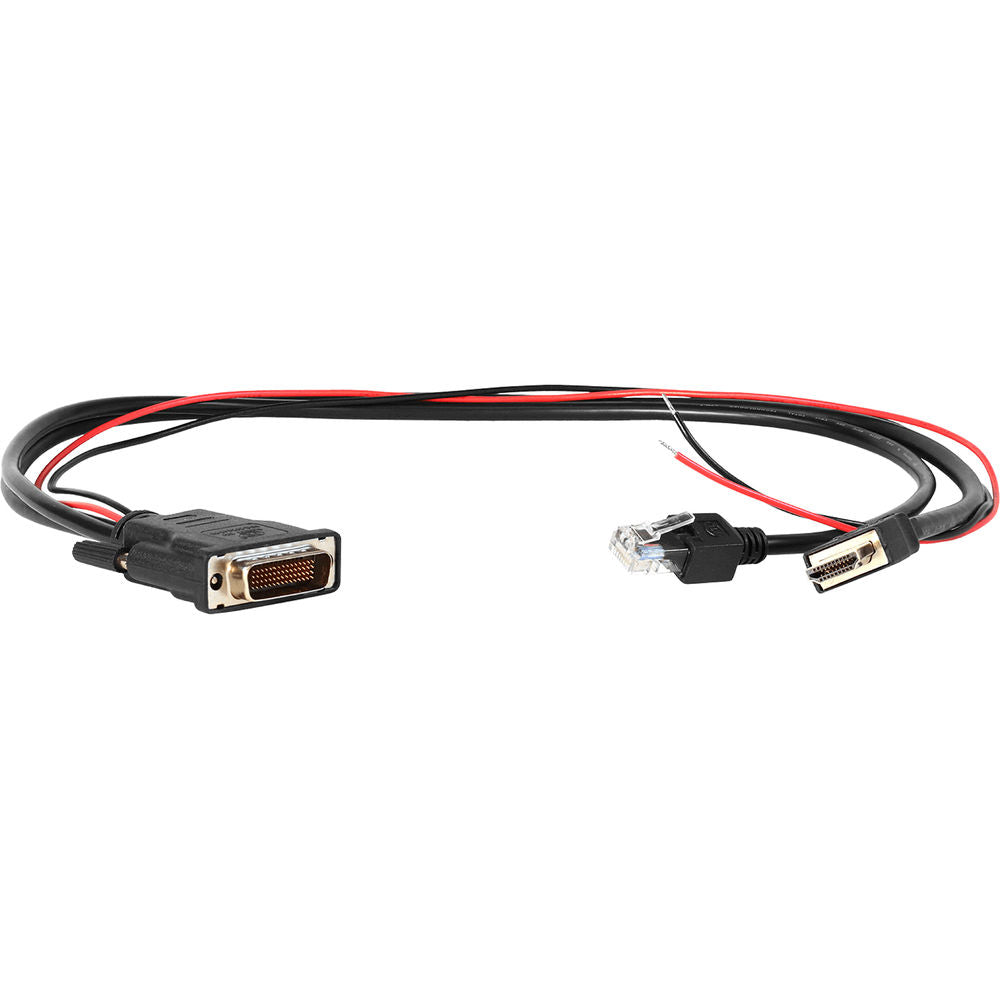

- 2' Fan-Out Cable for Polycom, Codec Side
- 3-Pin Phoenix-Style Connector
Vaddio RoboSHOT 12E HDBT IP Camera System (Black) Specs
| Image Sensor | 1-Chip 1/2.5" CMOS Sensor |
| Sensor Resolution | 8.51 MP |
| Gain | 0 to 33 dB |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 1.6 Lux |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Optical Zoom Ratio | 12x |
| Focal Length | 4.4 to 88.4mm |
| Field of View | Horizontal: 70.2 to 4.1° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm |
| Focus Control | Autofocus Manual Focus |
| Output Formats | HDMI: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps HDMI: 1280 x 720p at 50, 59.94, 60 fps |
| Presets | 16 |
| Move Speed | Pan: 0.35 to 120°/sec Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 320° (-160 to 160°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP IR RS-232 |
| Video Output Connectors | 1 x RJ45 (HDBaseT) Male 1 x HDMI Type A Male |
| Control Interface | 1 x RJ45 (IP Control) Input |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Dimensions | 7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.14 cm |
| Weight | 4.85 lb / 2.2 kg |
| Package Weight | 10.5 lb |
| Box Dimensions (LxWxH) | 24.75 x 12.5 x 7" |
Vaddio OneLINK HDMI Extension System for HDBaseT Cameras Specs
| Cable Run | Max: 328' / 100 m |
| Power | Input: 48 VDC, 1.36 A To Camera: 12 VDC, 3 A |
| Environmental | Operating/Storage Temperature: 32 to 104°F / 0 to 40°C Humidity: 20 to 80% RH (non-condensing) |
| Dimensions | 1.73 x 8.39 x 5.98" / 44 x 213 x 152 mm |
| Weight | 1.55 lb / 0.7 kg |
| Package Weight | 3.35 lb |
| Box Dimensions (LxWxH) | 12.5 x 9 x 3.3" |
