Description
Vaddio EasyIP 20 Overview
- 1Description
- 2Vaddio EasyIP 20 PTZ Camera (Black)
- 3Vaddio EasyIP Decoder
- 4Vaddio EasyIP PoE+ Managed Gigabit Switch

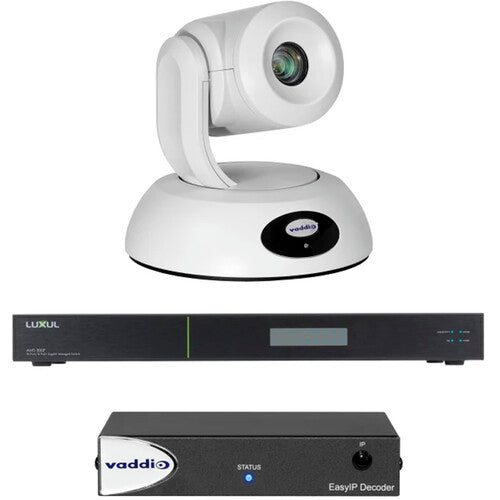

The EasyIP 20 Base Kit with Professional IP PTZ Camera from Vaddio is an all-in-one AV-over-IP system that includes an EasyIP 20 PTZ camera, an EasyIP switch, and an EasyIP decoder. This simple solution allows you to capture video, stream to a network, and ensure your video is properly decoded for connecting to your computer.
The EasyIP 20 features a 20x zoom, IP and HDMI outputs, network and IR control, and an enhanced dynamic range. The switch supports PoE and it allows your camera to connect to your streaming network. The decoder autodiscovers and connects the camera to a local computer, providing control over cameras using UVC and utilizing conferencing apps such as Teams, Zoom, or Skype.
Vaddio EasyIP 20 PTZ Camera (Black)
Add a remotely controllable high-definition PTZ camera to your IP network at your education, remote meeting room, lecture hall, or house of worship location with this black EasyIP 20 PTZ Camera from Vaddio. The EasyIP 20 installs onto your existing PoE+ (Power-over-Ethernet) network and it simultaneously streams up to 1080p60 high-definition video over the LAN or via HDMI to a network switch, video switch, recorder, and/or display.
The camera features RS-232 input/output for serial control of the pan, tilt, and zoom operation using the VISCA control protocol as well as IP control over the RJ45 LAN port using a web configuration interface. Up to 16 presets can be assigned and managed via the included IR remote controller. Other features include silent motors, noise reduction, wide dynamic range, automatic white balance, and spotlight compensation mode.
A wall mount with mounting hardware is included with the camera, and the camera supports image flip so it can be installed right-side up or upside down.
Key Camera Features
Enhanced Wide Dynamic Range
Remote Management
Smooth Tri-Synchronous Motion
Flexible Video Outputs
Vaddio EasyIP Decoder
The EasyIP Decoder from Vaddio is part of the EasyIP Ecosystem, an AV-over-IP solution for videoconferencing. The EasyIP Decoder controls and switches cameras, and it provides a USB 3.0 stream of video and audio to the conference room's connected computer or BYOD to use with web-based conferencing systems.
It supports up to four EasyIP cameras and two Vaddio EasyMIC microphones (TableMIC or CeilingMIC) and it can discover and pair with EasyIP Cameras and sources. Video is transported via EasyIP technology over the network to the decoder, and it allows seamless control of cameras using remote UVC controls. It provides USB 3.0 output up to 1080p60 streams, and it is powered using PoE+ (Power-over-Ethernet).

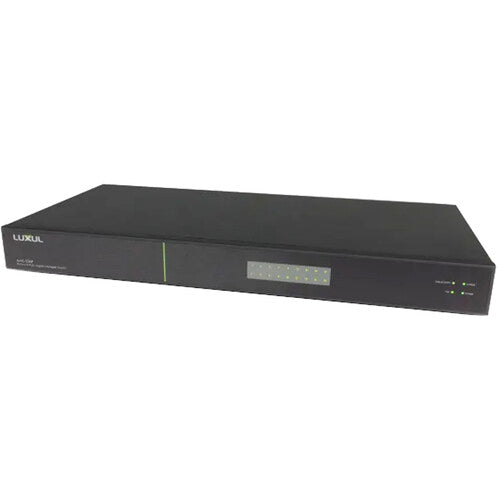

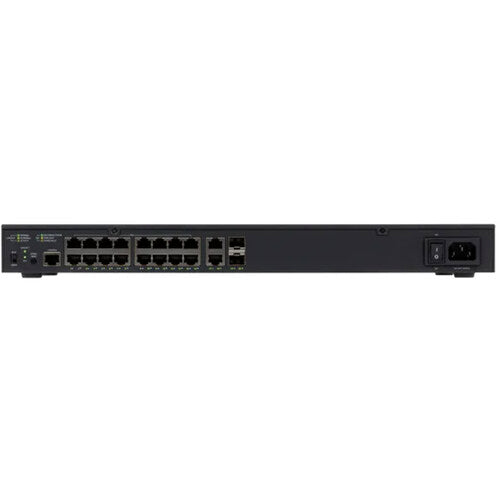

Vaddio EasyIP PoE+ Managed Gigabit Switch
Add a Gigabit switch to your EasyIP environment with this EasyIP PoE+ Managed Gigabit Switch from Vaddio. This plug-and-play LAN switch features 12 Gigabit ports, eight of which support PoE+, so you can power your Vaddio EasyIP PTZ cameras, controllers, and decoders via a single data connection with pre-set firmware. The plug-and-play switch features a 1 RU rackmount design, simple power management, fanless operation, auto-recovery, power scheduling, VLAN, QoS, and Layer 3 static routing. It also provides green and blue front LEDs that are user-managed. A power cable and rackmount kit are included with the switch.
Key Features
In the Box
- Vaddio EasyIP 20 PTZ Camera (Black)
- IR Remote Commander
- Wall Mount
- Mounting Hardware
- Limited 2-Year Warranty
- Vaddio EasyIP Decoder
- Cat 5e Cable (3')
- USB 3.0 Cable (6')
- 4-Pin Phoenix Connector
- Half-Rack Mounting Kit
- Limited 3-Year Warranty
- Vaddio EasyIP PoE+ Managed Gigabit Switch
- Power Cable
- Rackmount Kit
- Limited 3-Year Warranty
- Description
- Vaddio EasyIP 20 PTZ Camera (Black)
- Vaddio EasyIP Decoder
- Vaddio EasyIP PoE+ Managed Gigabit Switch
Vaddio EasyIP 20 PTZ Camera (Black) Specs
| Image Sensor | 1-Chip 1/2.5" CMOS Sensor |
| Sensor Resolution | Effective: 8.57 Megapixel (1920 x 1080) |
| Gain | 0 to 33 dB |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 1.6 Lux |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 20x |
| Focal Length | 88.4 to 4.4mm |
| Field of View | Horizontal: 4.1 to 70.2° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | Wide: 9.0" / 22.9 cm Telephoto: 31.5" / 80.0 cm |
| Focus Control | Autofocus Manual Focus |
| Output Formats | HDMI, RJ45: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| Presets | 16 via IR |
| Move Speed | Pan: 0.35 to 120°/sec Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 300° (-150 to 150°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IR RS-232 VISCA |
| Video Output Connectors | 1 x HDMI Type A Female 1 x RJ45 Female |
| Control Interface | 1 x RJ45 (RS-232, VISCA) Input |
| PoE Support | PoE+ 802.3at |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Dimensions | 7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.15 cm |
| Weight | 4.9 lb / 2.2 kg |
| Package Weight | 10.25 lb |
| Box Dimensions (LxWxH) | 13.5 x 12 x 12" |
Vaddio EasyIP Decoder Specs
| Input Connectors | 2 x RJ45 EZ Mic Ports, 12 V 1 x RJ45 Ethernet |
| Output Connectors | 1 x 4-Pin Terminal Block Audio 1 x USB 3.0 Type-B |
| Maximum Video Resolution | 1080p60 |
| Audio Output Format | 2-Channel, 16-Bit, 48 kHz Sample Rate |
