Description
Vaddio EasyIP 20 Overview
- 1Description
- 2Vaddio EasyIP 20 PTZ Camera (White)
- 3Vaddio EasyIP Video Mixer
- 4Vaddio EasyIP PoE+ Managed Gigabit Switch
The EasyIP 20 Mixer Base Kit from Vaddio is an AV-over-IP system in a box. Ideal for large rooms and multi-camera applications, the EasyIP Mixer combines Dante audio sources and four Vaddio EasyIP cameras to deliver our easiest production system to date.

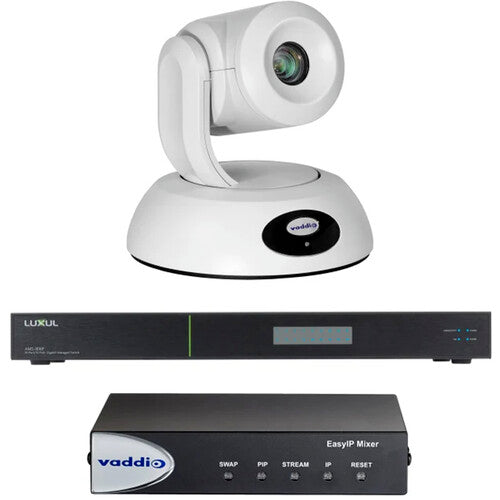

It's a simple AV-over-IP solution for extended and networked conferencing in meeting rooms, houses of worship, government, and training rooms alike. The EasyIP 20 Base Kit includes everything you need to get started with AV-over-IP system design in one easy-to-order bundle including one EasyIP 20 Camera, one EasyIP Mixer, and one EasyIP Switch.

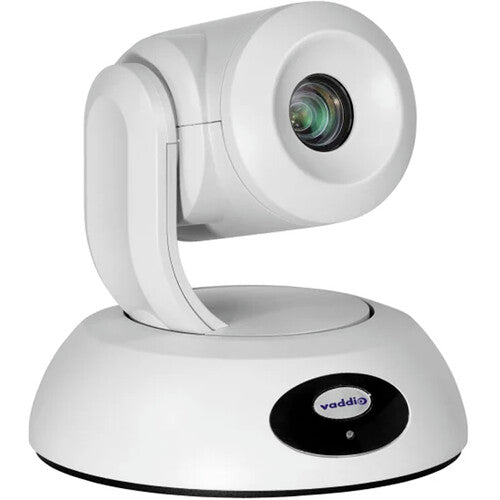

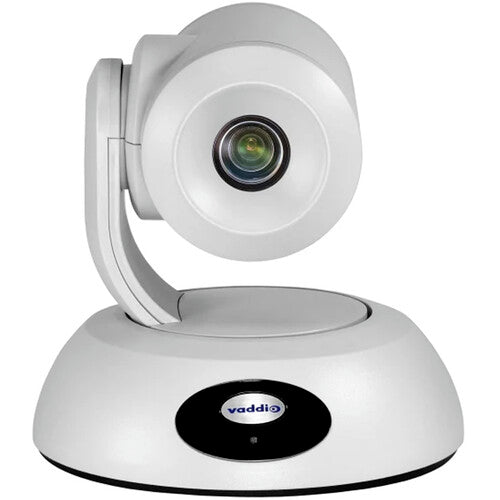

Vaddio EasyIP 20 PTZ Camera (White)
Add a remotely controllable high-definition PTZ camera to your IP network at your education, remote meeting room, lecture hall, or house of worship location with this white EasyIP 20 PTZ Camera from Vaddio. The EasyIP 20 installs onto your existing PoE+ (Power-over-Ethernet) network and it simultaneously streams up to 1080p60 high-definition video over the LAN or via HDMI to a network switch, video switch, recorder, and/or display.

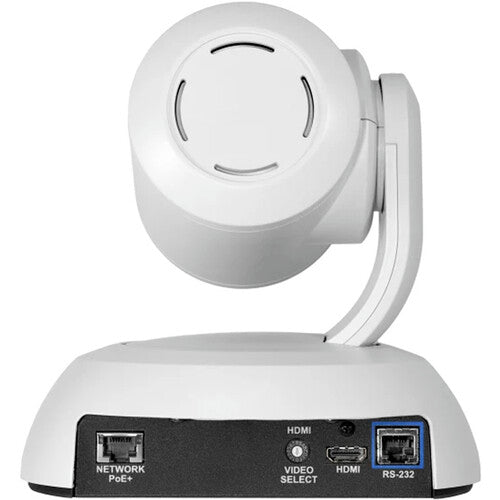

The camera features RS-232 input/output for serial control of the pan, tilt, and zoom operation using the VISCA control protocol as well as IP control over the RJ45 LAN port using a web configuration interface. Up to 16 presets can be assigned and managed via the included IR remote controller. Other features include silent motors, noise reduction, wide dynamic range, automatic white balance, and spotlight compensation mode.
A wall mount with mounting hardware is included with the camera, and the camera supports image flip so it can be installed right-side up or upside down.
Key Camera Features
Enhanced Wide Dynamic Range
Remote Management
Smooth Tri-Synchronous Motion
Flexible Video Outputs
Vaddio EasyIP Video Mixer
The EasyIP Video Mixer from Vaddio combines Dante audio sources and four VaddioEasyIP cameras to deliver our easiest production switcher todate. The EasyIP Mixer revolutionizes the complex classroom A/Vsystem, replacing expensive HDMI cable runs with categorycables and saving precious time with simple video and audiorouting in an intuitive web-based user interface. Pair the EasyIP Mixer with up to four EasyIP cameras located on the network. The additional HDMI input allows you to connect a PC for simple content sharing on a platform that easily switchesbetween sources and delivers useful picture-in-picture (PIP) layouts. Simultaneous 1080p/60 USB 3.0 and HDMI outputs allow for multipurpose video distribution. Use the EasyIP Mixer to simultaneously record to a local PC and magnify the speakervideo through a room projector. Or use the USB 3.0 interface with popular videoconferencing applications � including UVC control of connected cameras.
The system is based around a PoE+ network switch that provides the power and control capabilities for the EasyIP Cameras as well as the EasyIPCeilingMIC D microphones. Next, pair the EasyIP Mixer to the same network and pair the desired endpoints with the included web-based user interface. No expensive external processors, no costly management software tools � the whole system can beconfigured in minutes.

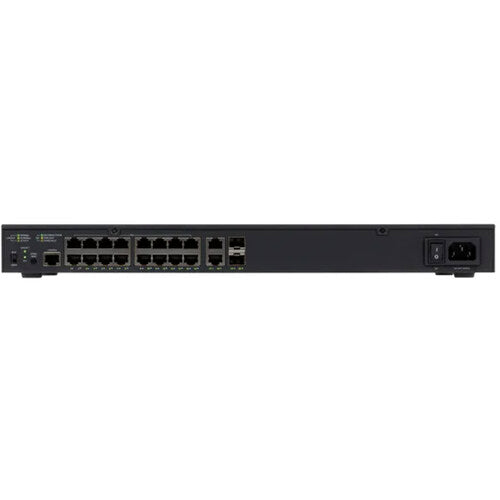

Vaddio EasyIP PoE+ Managed Gigabit Switch
Add a Gigabit switch to your EasyIP environment with this EasyIP PoE+ Managed Gigabit Switch from Vaddio. This plug-and-play LAN switch features 12 Gigabit ports, eight of which support PoE+, so you can power your Vaddio EasyIP PTZ cameras, controllers, and decoders via a single data connection with pre-set firmware. The plug-and-play switch features a 1 RU rackmount design, simple power management, fanless operation, auto-recovery, power scheduling, VLAN, QoS, and Layer 3 static routing. It also provides green and blue front LEDs that are user-managed. A power cable and rackmount kit are included with the switch.
Key Features
In the Box
- Vaddio EasyIP 20 PTZ Camera (White)
- IR Remote Commander
- Wall Mount
- Mounting Hardware
- Limited 2-Year Warranty
- Vaddio EasyIP Video Mixer
- Vaddio EasyIP PoE+ Managed Gigabit Switch
- Power Cable
- Rackmount Kit
- Limited 3-Year Warranty
- Description
- Vaddio EasyIP 20 PTZ Camera (White)
- Vaddio EasyIP Video Mixer
- Vaddio EasyIP PoE+ Managed Gigabit Switch
Vaddio EasyIP 20 PTZ Camera (White) Specs
| Image Sensor | 1-Chip 1/2.5" CMOS Sensor |
| Sensor Resolution | Effective: 8.57 Megapixel (1920 x 1080) |
| Gain | 0 to 33 dB |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 1.6 Lux |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 20x |
| Focal Length | 88.4 to 4.4mm |
| Field of View | Horizontal: 4.1 to 70.2° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | Wide: 9.0" / 22.9 cm Telephoto: 31.5" / 80.0 cm |
| Focus Control | Autofocus Manual Focus |
| Output Formats | HDMI, RJ45: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| Presets | 16 via IR |
| Move Speed | Pan: 0.35 to 120°/sec Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 300° (-150 to 150°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IR RS-232 VISCA |
| Video Output Connectors | 1 x HDMI Type A Female 1 x RJ45 Female |
| Control Interface | 1 x RJ45 (RS-232, VISCA) Input |
| PoE Support | PoE+ 802.3at |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Dimensions | 7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.15 cm |
| Weight | 4.9 lb / 2.2 kg |
| Package Weight | 9.41 lb |
| Box Dimensions (LxWxH) | 13.7 x 12.2 x 11.7" |
Vaddio EasyIP Video Mixer Specs
| Package Weight | 4.665 lb |
| Box Dimensions (LxWxH) | 16.1 x 9.6 x 3.4" |
Vaddio EasyIP PoE+ Managed Gigabit Switch Specs
| Ports | 12 x RJ45 Gigabit Ethernet, 8 Support PoE+ 2 x RJ45 Ethernet Uplink 2 x SFP Gigabit Fiber |
| Layer | Layer 2 and Layer 3 Support |
| VLAN |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 819936.6 |
| 3-5 | ₹ 811569.9 |
| 5-10 | ₹ 794836.5 |
| 10+ | ₹ 778103.1 |
Bulk discount will be automatically applied during checkout based on quantity.
