Description
Vaddio EasyIP 10 Overview
- 1Description
- 2Vaddio EasyIP 10 PTZ Camera (White)
- 3Vaddio EasyIP Video Mixer
- 4Vaddio EasyIP PoE+ Managed Gigabit Switch

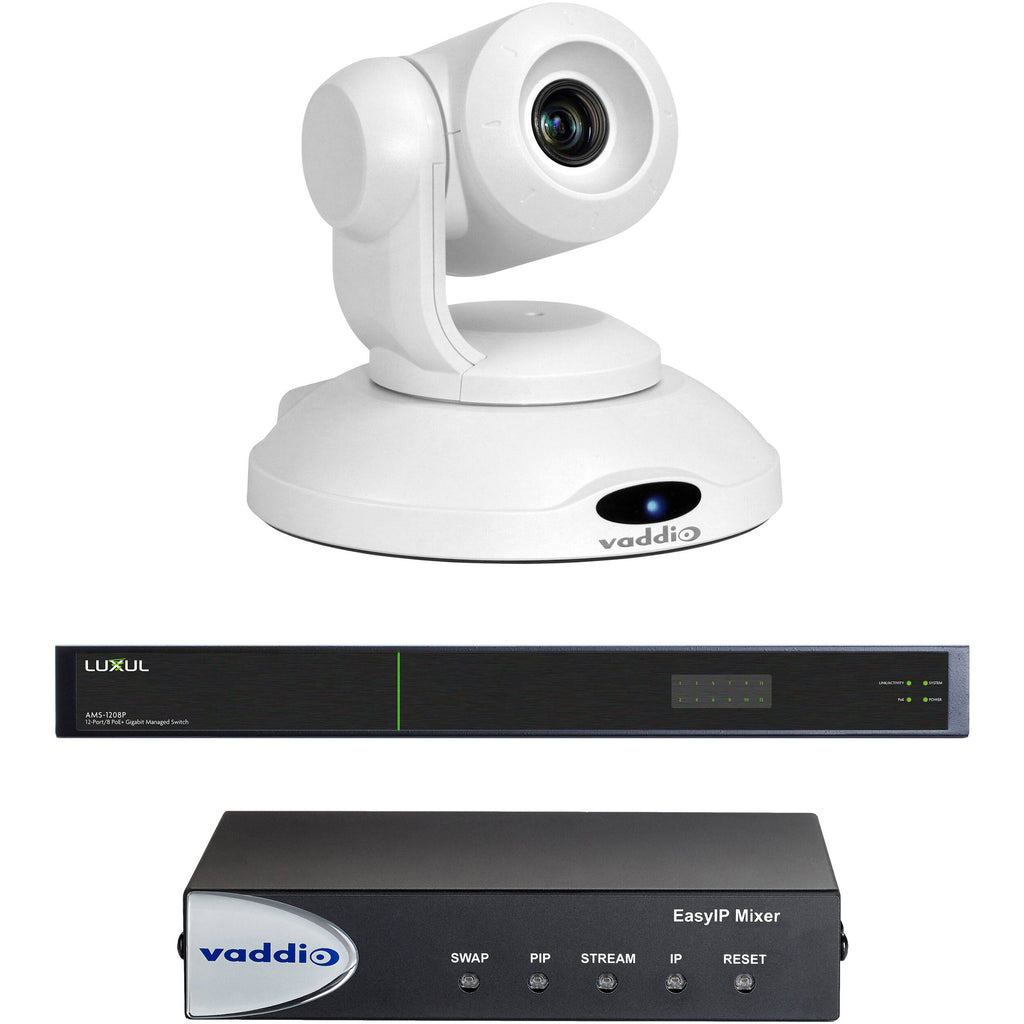

The EasyIP 10 Mixer Base Kit from Vaddio is an AV-over-IP system in a box designed for multi-camera applications in education or corporate environments. The kit includes a white EasyIP 10 Camera, the EasyIP Audio Mixer, and the EasyIP PoE+ network switch.
The managed switch provides Gigabit LAN switching and it provides multiple ports that support PoE+ power. The EasyIP 10 connects to the PoE+ network and it simultaneously streams up to 1080p60 high-definition video, it can be controlled via IP, and features 10x optical zoom. The EasyIP Mixer combines Dante audio sources and EasyIP cameras for meeting rooms, classrooms, houses of worship, government, and training rooms.

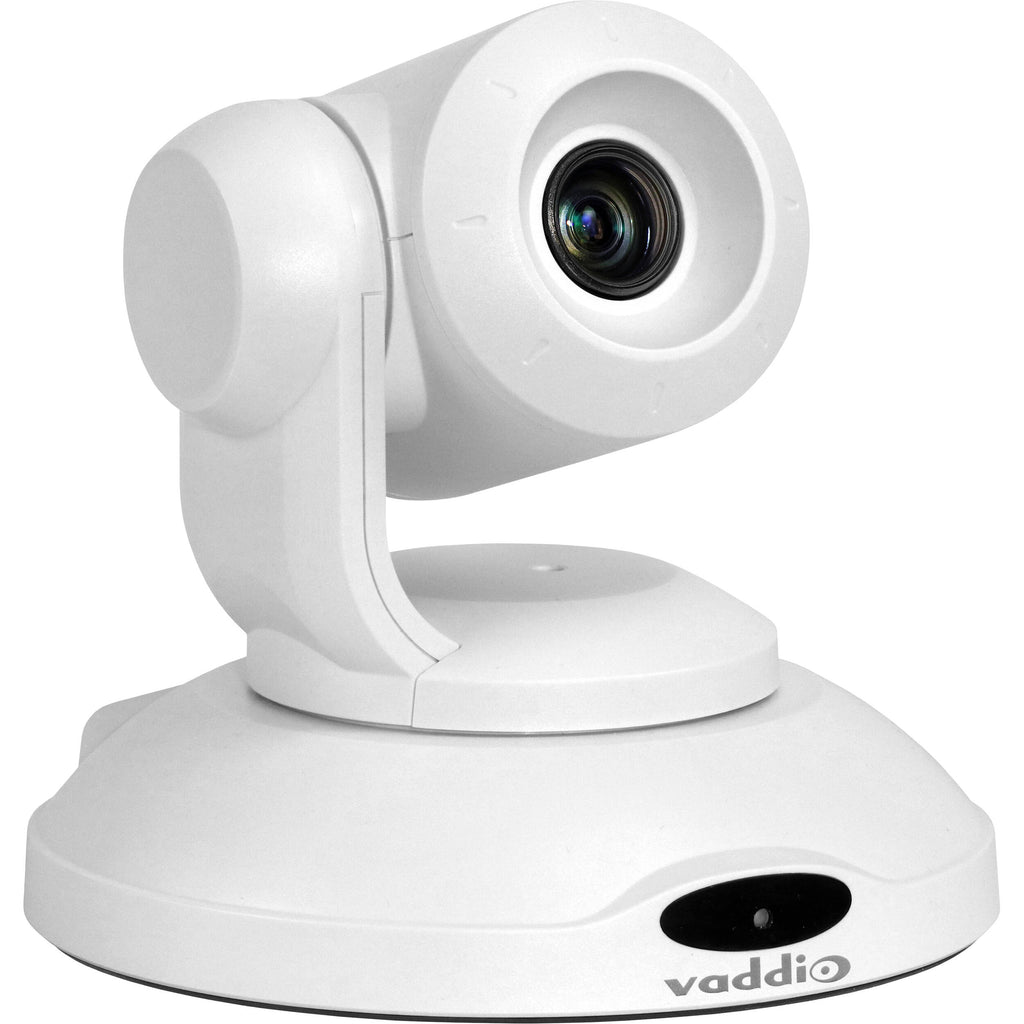

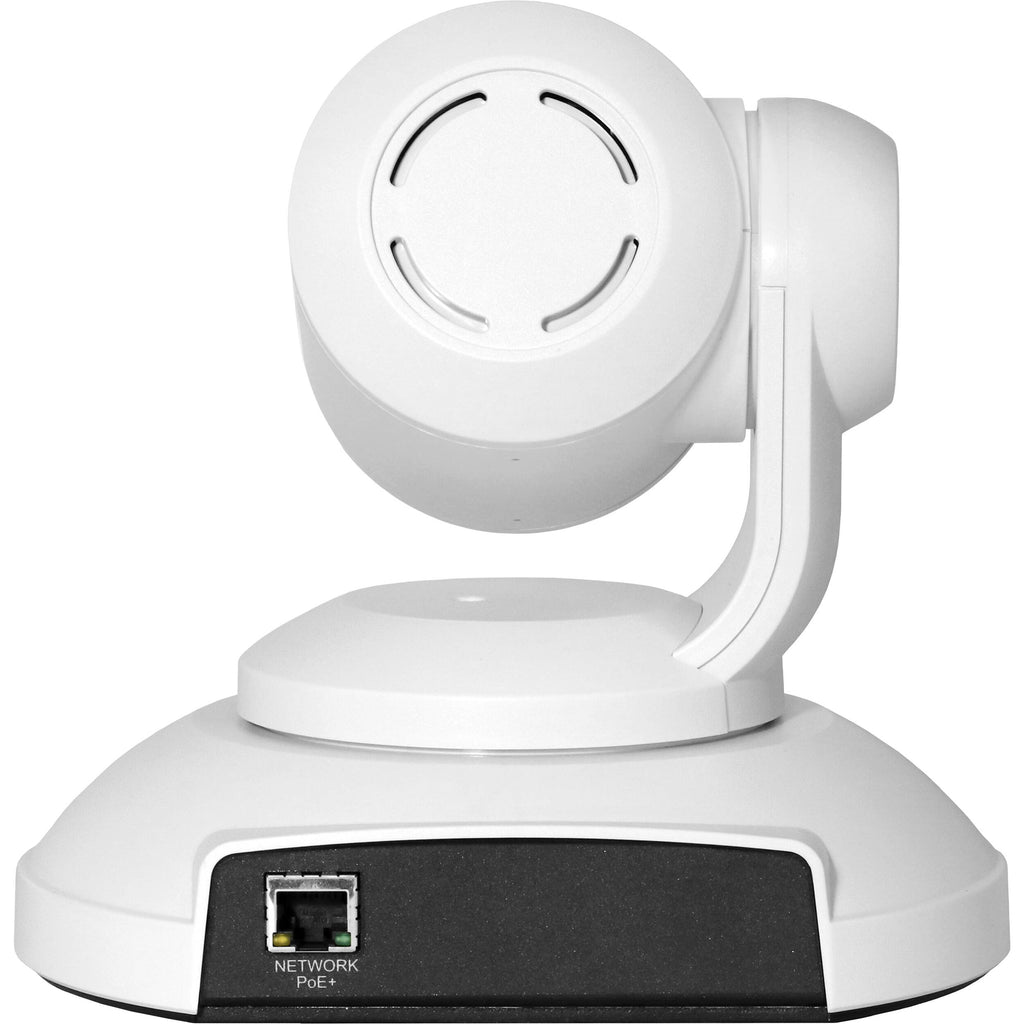

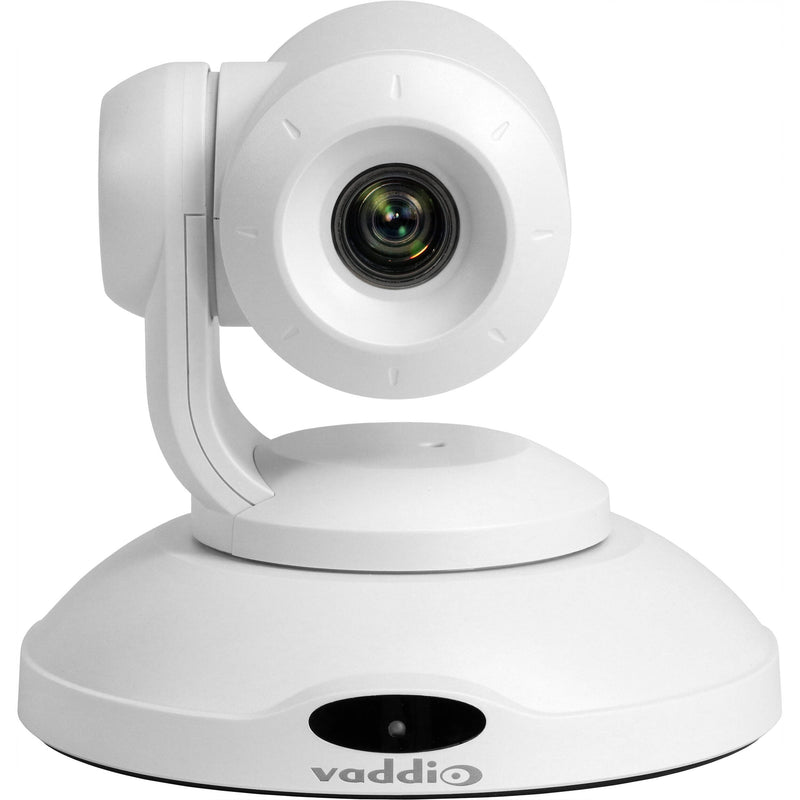

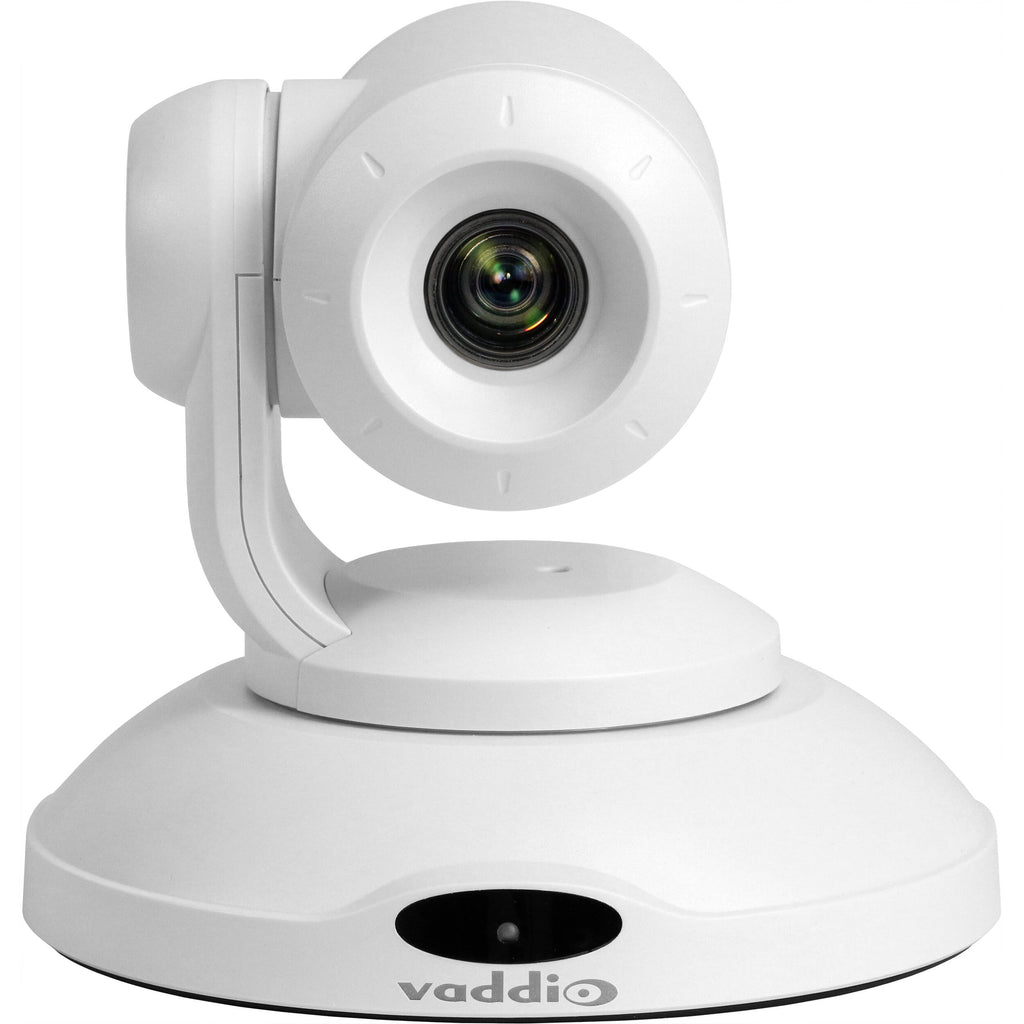

Vaddio EasyIP 10 PTZ Camera (White)
Add a remotely controllable high-definition PTZ camera to your IP network at your education, remote meeting room, lecture hall, or house of worship location with this white EasyIP 10 PTZ Camera from Vaddio. The EasyIP 10 installs onto your existing PoE+ (Power-over-Ethernet) network and it simultaneously streams up to 1080p60 high-definition video over the LAN to a network switch, video switch, recorder, and/or display.

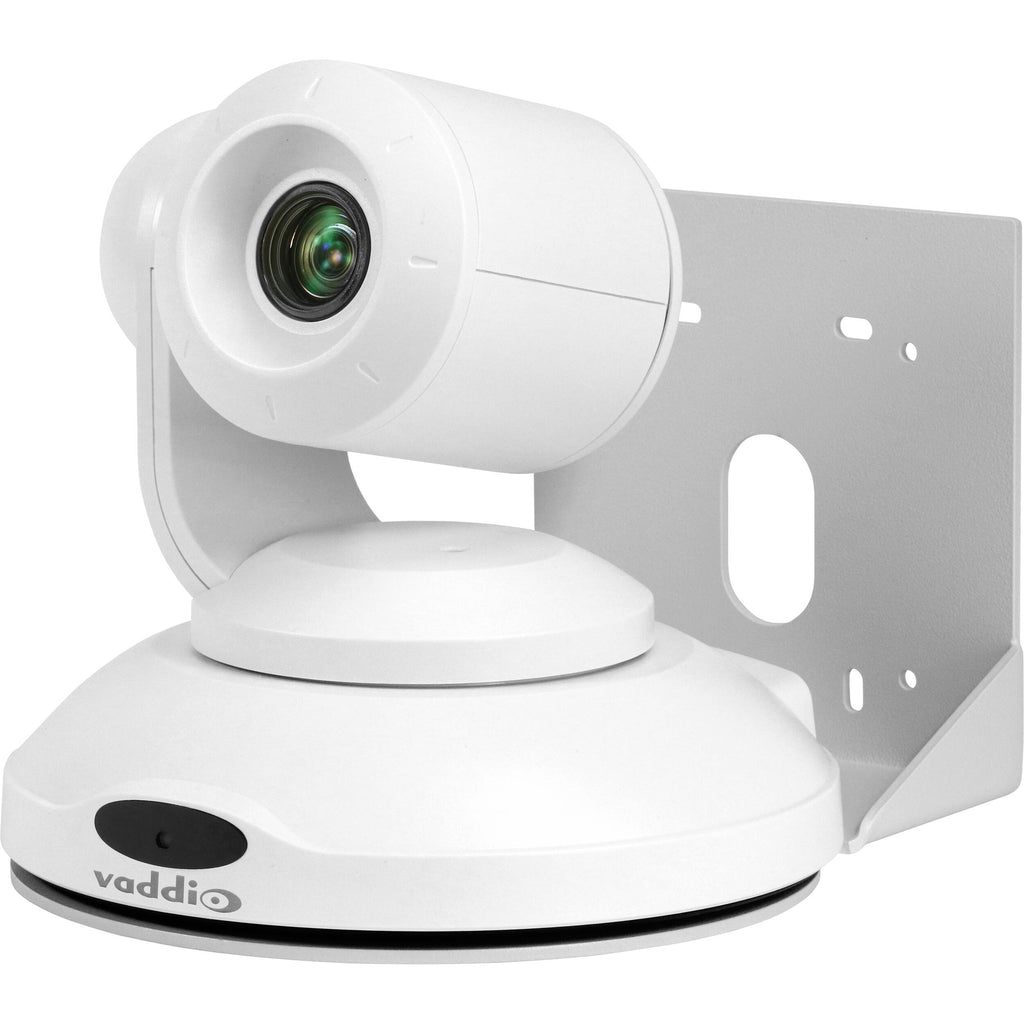

The camera features IP control over the RJ45 LAN port using a web configuration interface. Up to 16 presets can be assigned and managed via the included IR remote controller. Other features include silent motors, noise reduction, wide dynamic range, automatic white balance, and spotlight compensation mode. A wall mount with mounting hardware is included with the camera, and the camera supports image flip, so it can be installed right-side up or upside down.
Key Features
Applications
Vaddio EasyIP Video Mixer
The EasyIP Video Mixer from Vaddio combines Dante audio sources and four VaddioEasyIP cameras to deliver our easiest production switcher todate. The EasyIP Mixer revolutionizes the complex classroom A/Vsystem, replacing expensive HDMI cable runs with categorycables and saving precious time with simple video and audiorouting in an intuitive web-based user interface. Pair the EasyIP Mixer with up to four EasyIP cameras located on the network. The additional HDMI input allows you to connect a PC for simple content sharing on a platform that easily switchesbetween sources and delivers useful picture-in-picture (PIP) layouts. Simultaneous 1080p/60 USB 3.0 and HDMI outputs allow for multipurpose video distribution. Use the EasyIP Mixer to simultaneously record to a local PC and magnify the speakervideo through a room projector. Or use the USB 3.0 interface with popular videoconferencing applications � including UVC control of connected cameras.
The system is based around a PoE+ network switch that provides the power and control capabilities for the EasyIP Cameras as well as the EasyIPCeilingMIC D microphones. Next, pair the EasyIP Mixer to the same network and pair the desired endpoints with the included web-based user interface. No expensive external processors, no costly management software tools � the whole system can beconfigured in minutes.

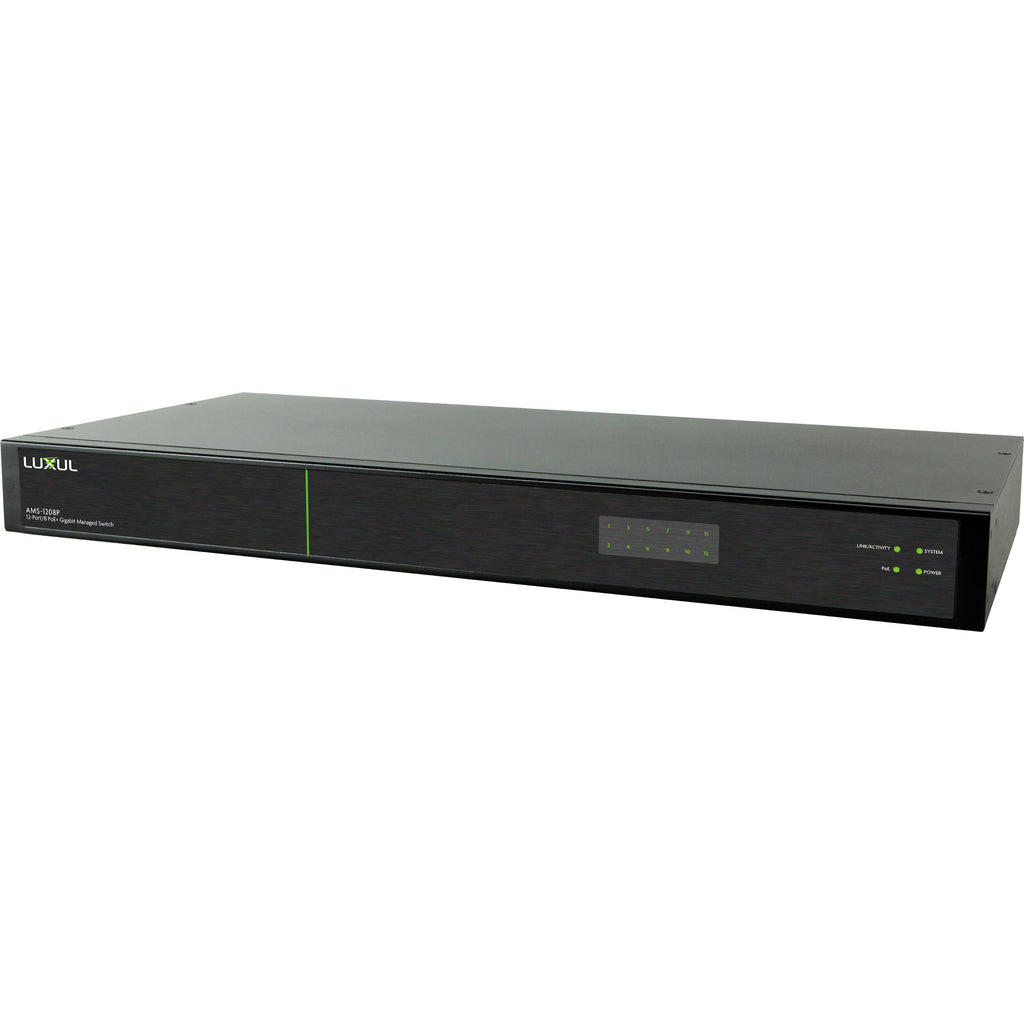

Vaddio EasyIP PoE+ Managed Gigabit Switch
Add a Gigabit switch to your EasyIP environment with this EasyIP PoE+ Managed Gigabit Switch from Vaddio. This plug-and-play LAN switch features 12 Gigabit ports, eight of which support PoE+, so you can power your Vaddio EasyIP PTZ cameras, controllers, and decoders via a single data connection with pre-set firmware. The plug-and-play switch features a 1 RU rackmount design, simple power management, fanless operation, auto-recovery, power scheduling, VLAN, QoS, and Layer 3 static routing. It also provides green and blue front LEDs that are user-managed. A power cable and rackmount kit are included with the switch.
Key Features
In the Box
- Vaddio EasyIP 10 PTZ Camera (White)
- IR Remote Commander
- Wall Mount Kit
- Cat 5e Cable (10')
- Limited 2-Year Warranty
- Vaddio EasyIP Video Mixer
- Vaddio EasyIP PoE+ Managed Gigabit Switch
- Power Cable
- Rackmount Kit
- Limited 3-Year Warranty
- Description
- Vaddio EasyIP 10 PTZ Camera (White)
- Vaddio EasyIP Video Mixer
- Vaddio EasyIP PoE+ Managed Gigabit Switch
Vaddio EasyIP 10 PTZ Camera (White) Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | Effective: 2.14 Megapixel (1920 x 1080) |
| Gain | 0 to 33 dB |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 100 Lux |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 10x |
| Focal Length | 3.8 to 38mm |
| Field of View | Horizontal: 7.6 to 67° |
| Maximum Aperture | f/1.8 to 3.4 |
| Minimum Focus Distance | Wide: 0.4" / 1.0 cm Telephoto: 39.4" / 1.0 m |
| Focus Control | Autofocus Manual Focus |
| Output Formats | HDMI, RJ45: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| Presets | 16 via IP, IR |
| Move Speed | Pan: 165 to 90°/sec Tilt: 120 to 90°/sec |
| Movement Range | Pan: 330° (-165 to 165°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP |
| Video Output Connectors | 1 x RJ45 Female |
| Control Interface | 1 x RJ45 (IP Control) Input |
| PoE Support | PoE+ 802.3at |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Dimensions | 6.4 x 6.1 x 5.7" / 16.3 x 15.5 x 14.5 cm |
| Weight | 3 lb / 1.4 kg |
| Package Weight | 8.145 lb |
| Box Dimensions (LxWxH) | 13.4 x 12.3 x 12.1" |
Vaddio EasyIP Video Mixer Specs
| Package Weight | 4.665 lb |
| Box Dimensions (LxWxH) | 16.1 x 9.6 x 3.4" |
Vaddio EasyIP PoE+ Managed Gigabit Switch Specs
| Ports | 12 x RJ45 Gigabit Ethernet, 8 Support PoE+ 2 x RJ45 Ethernet Uplink 2 x SFP Gigabit Fiber |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 722960.7 |
| 3-5 | ₹ 715583.55 |
| 5-10 | ₹ 700829.25 |
| 10+ | ₹ 686074.95 |
Bulk discount will be automatically applied during checkout based on quantity.
