Description

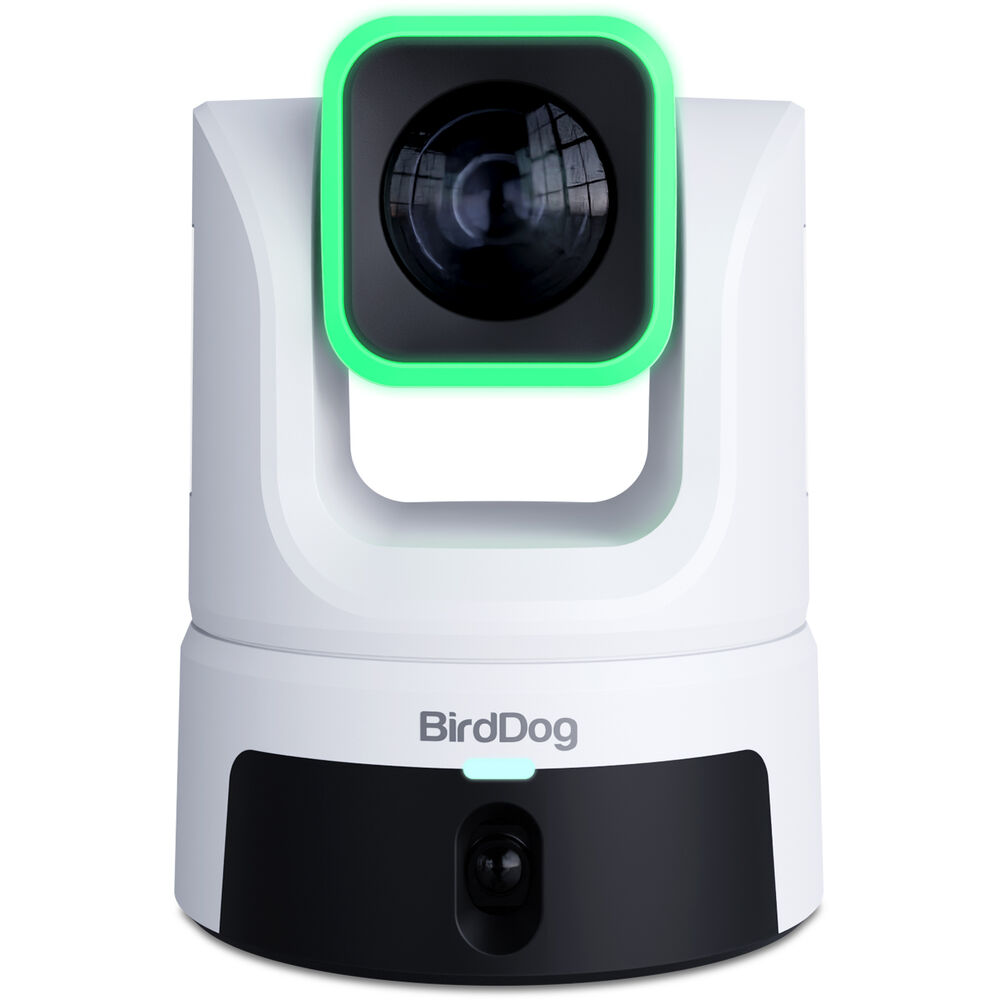

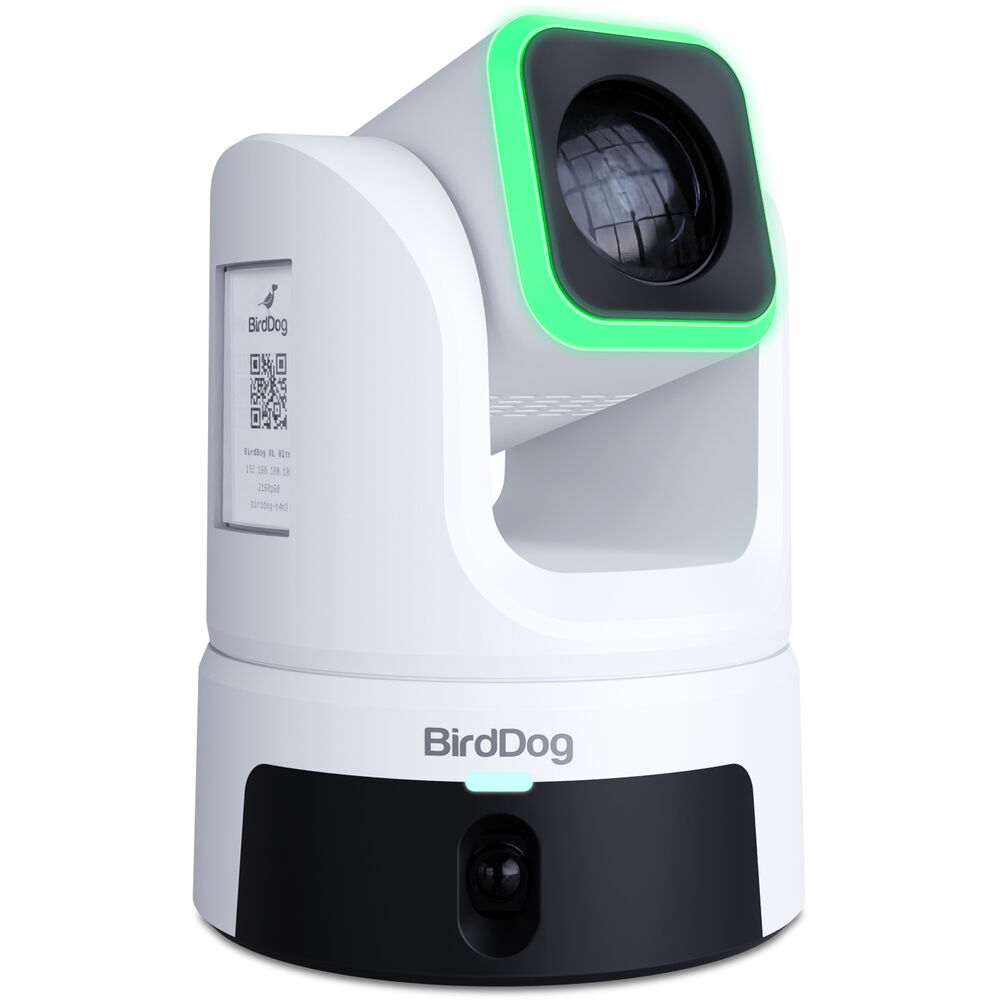

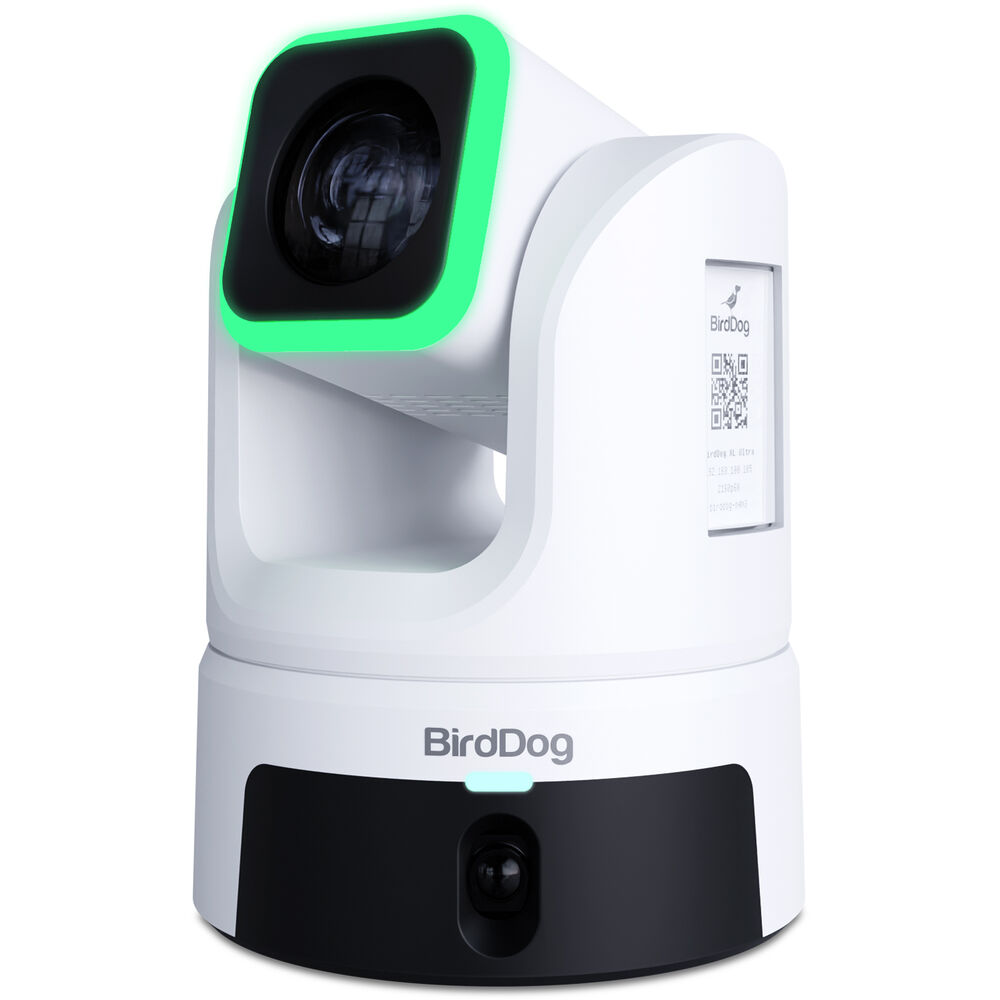

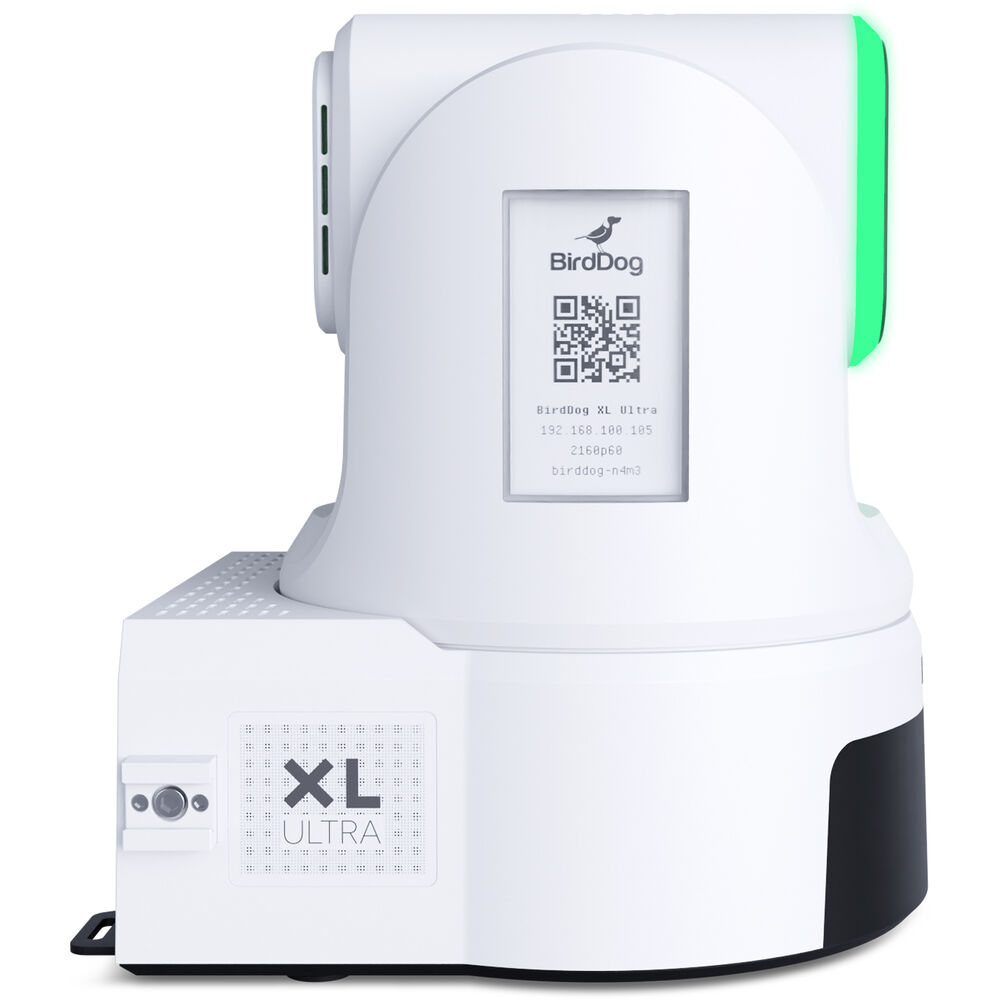

Enhance your broadcast or virtual production gear package with the XL Ultra PTZ Camera with 20x Optical Zoom & Secondary Built-In Panoramic Camera from BirdDog. The versatile, PTZ camera incorporates a primary camera with a large 4/3" 20.89MP image sensor with a secondary 100° panoramic camera boasting a 1/1.8" Sony CMOS sensor. The XL Ultra performs dual 4K60 simultaneous outputs via any two of its many connection ports, which include BNC connectors with 12G- and 3G-SDI support, HDMI, USB-C, high-bandwidth NDI with SpeedHQ, and SFP+ with 12G-SDI and standard SFP. The camera features an AI tracking engine and integrates a 1GbE Adaptive Ethernet Port with PoE++ (Power over Ethernet) support.
| Image Sensor | 4/3"-Type |
| Effective Sensor Resolution | 20.89 Megapixel |
| Shutter Speed | 1/10000 to 1/1 Seconds |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Max Video Output | via HDMI / Optical Fiber / RJ45 / SDI/BNC / USB Up to DCI 4K at 25/29.97/30.00/50/59.94/60.00 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Video Streaming NDI/NDI 6/NDI/HX2/NDI/HX3/RTMP/RTSP Camera Control IP/NDI/Pelco-D/Pelco-P/VISCA |
| IP Streaming | 1280 x 720 to 1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94i, 59.94p, 60i, 60p |
| Wireless | No |
| PoE Support | Yes: PoE++ 802.3bt |
| Image Sensor | 4/3"-Type CMOS |
| Horizontal Resolution (TV Lines) | 2160 TV Lines |
| Sensor Resolution | 20.89 Megapixel |
| IR Cut Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/1 Seconds |
| Precise Scan Rate Control | No |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 300 Lux |
| Flip / Mirror Support | Image Flip |
| Focal Length | 9.8 to 186mm 4.4mm |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | Vertical: 40 to 2° Diagonal: 79 to 4.5° |
| Maximum Aperture | f/2.8 to 4.5 |
| Secondary Image Sensor | 1/1.8"-Type CMOS |
| Secondary Camera's Focal Length | 4.4mm |
| Secondary Camera's Field of View | Horizontal: 85° Vertical: 53° Diagonal: 93° |
| Video Output | via HDMI / Optical Fiber / RJ45 / SDI/BNC / USB 4096 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Embedded Audio | Fiber/HDMI/NDI/SDI/USB |
| Internal Recording | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Video Streaming NDI/NDI 6/NDI/HX2/NDI/HX3/RTMP/RTSP Camera Control IP/NDI/Pelco-D/Pelco-P/VISCA |
| IP Streaming | 1280 x 720 to 1920 x 1080 at 25p, 29.97p, 30p, 50p, 59.94i, 59.94p, 60i, 60p |
| Presets | 256 |
| Pan/Tilt/Roll | Pan: 170° (-30 to 90°) at 0.05 to 120°/s Tilt: 170° (-30 to 90°) at 0.05 to 90°/s |
| Tally Light | Yes |
| Wireless | No |
| Media/Memory Card Slot | Single Slot: microSD (Unspecified Type) |

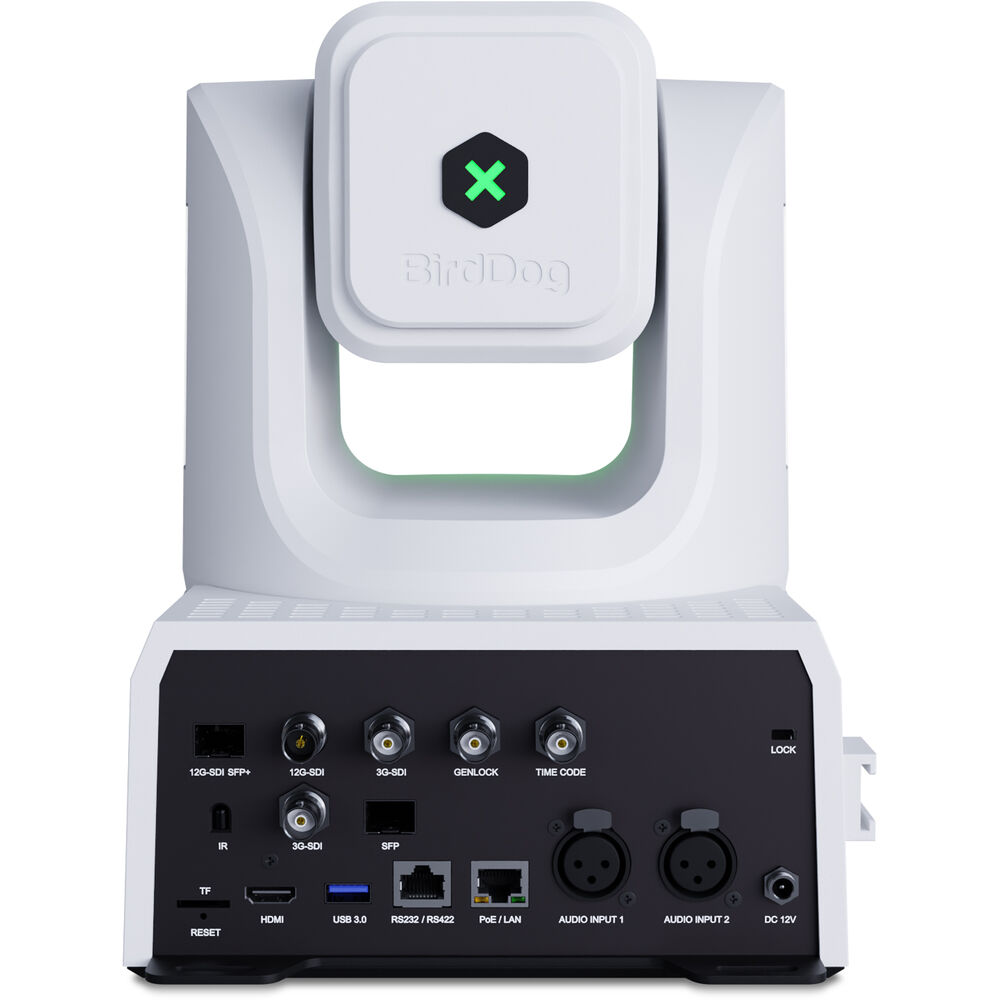

| Video I/O | 1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output 1x LC (12G-SDI) Output 1x HDMI Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O | 2x XLR 3-Pin Mic/Line Input |
| Other I/O | 1x BNC (Genlock) 1x BNC (Timecode) 1x LC Fiber 1x IR (IR) 1x RJ45 (LAN) 1x RJ45 (RS-232, RS-422) |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE++ 802.3bt |
| Power I/O | 1x Barrel (12VDC at 5 A) |
| Power Consumption | 40 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 80% Humidity |
| Impact Resistance | No |
| Environmental Resistance | No |
| Security Lock Support | Kensington Lock Slot |
| Dimensions (W x H x D) | 8.6 x 11.5 x 10.4" / 218.6 x 291.6 x 263.3 mm |
| Weight | 9 lb / 4 kg (Body Only) |
| Package Weight | 17.365 lb |
| Box Dimensions (LxWxH) | 17.4 x 15 x 12.8" |
