Description

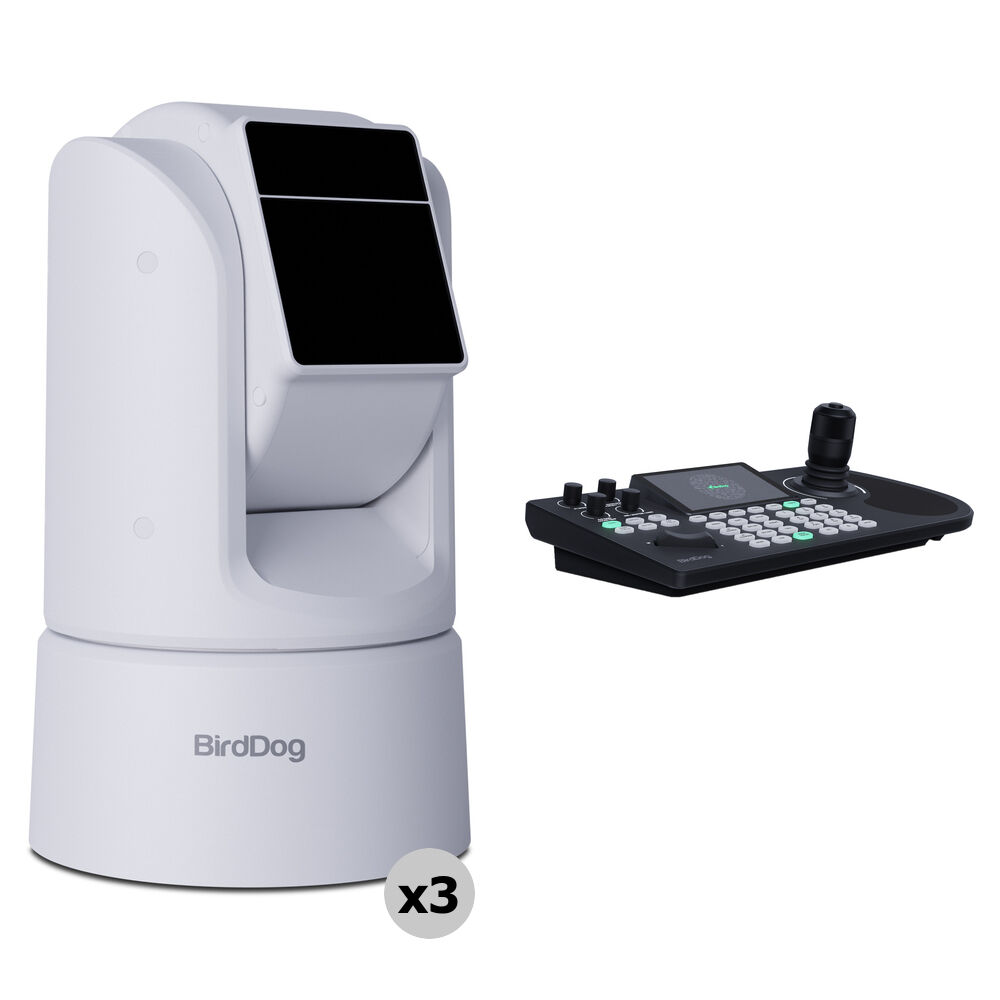

Add an outdoor video surveillance and security package to your location with the BirdDog KBD PTZ Controller Kit with 3 x O4 Outdoor PTZ Cameras put together by B&H. This kit includes three white O4 Outdoor PTZ cameras with 30x optical zoom and a KBD IP PTZ controller to control up to four cameras.

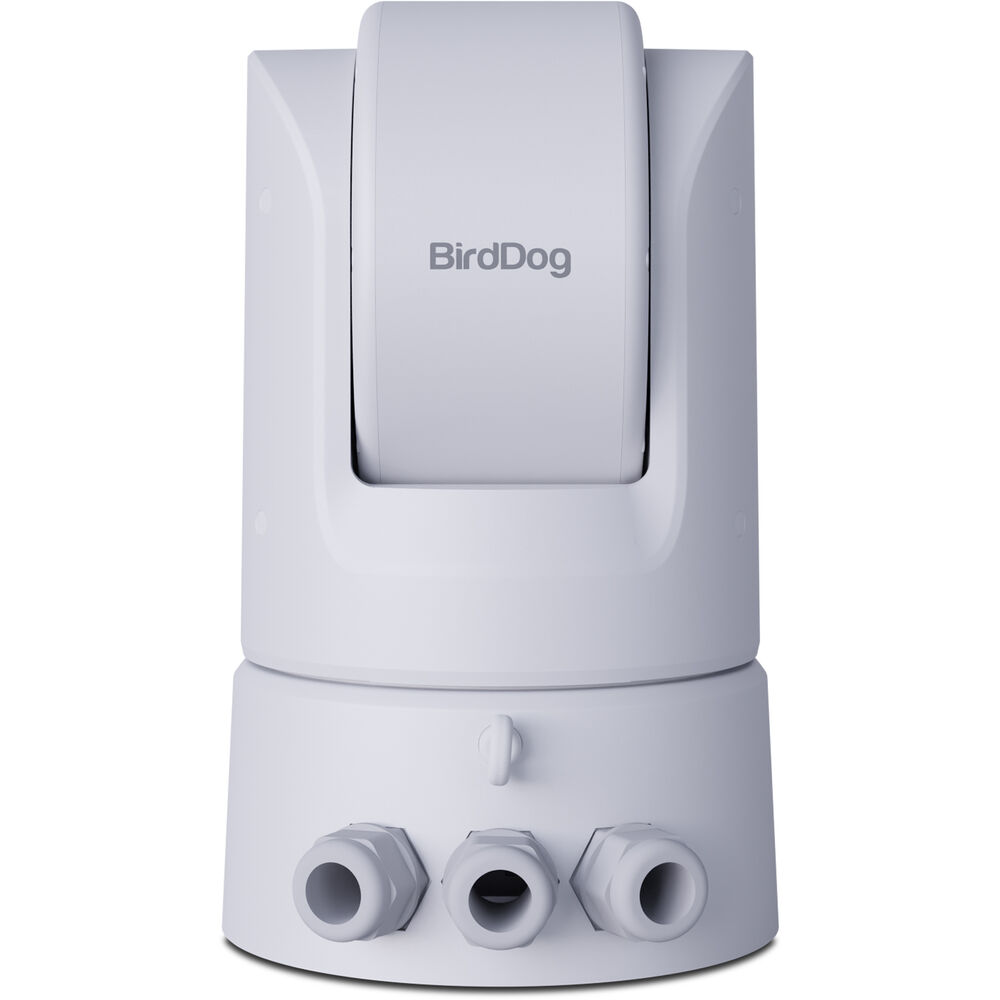

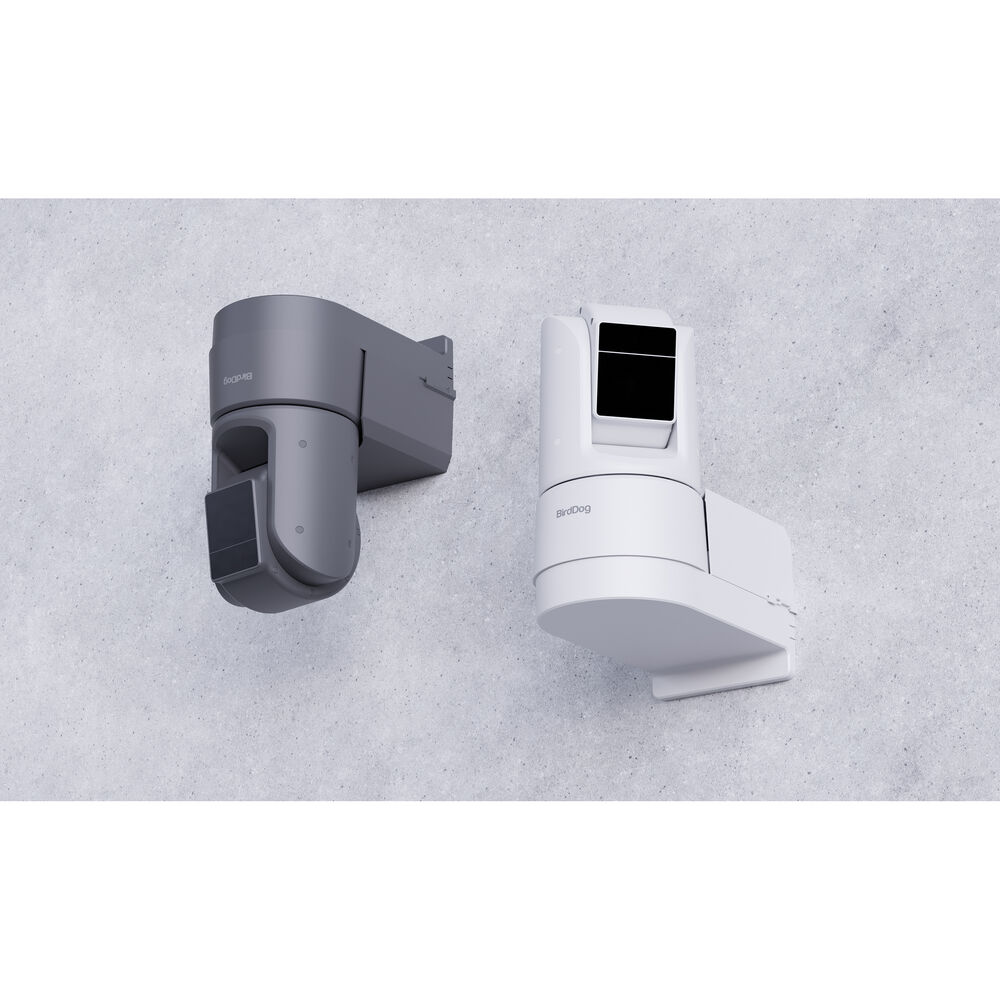

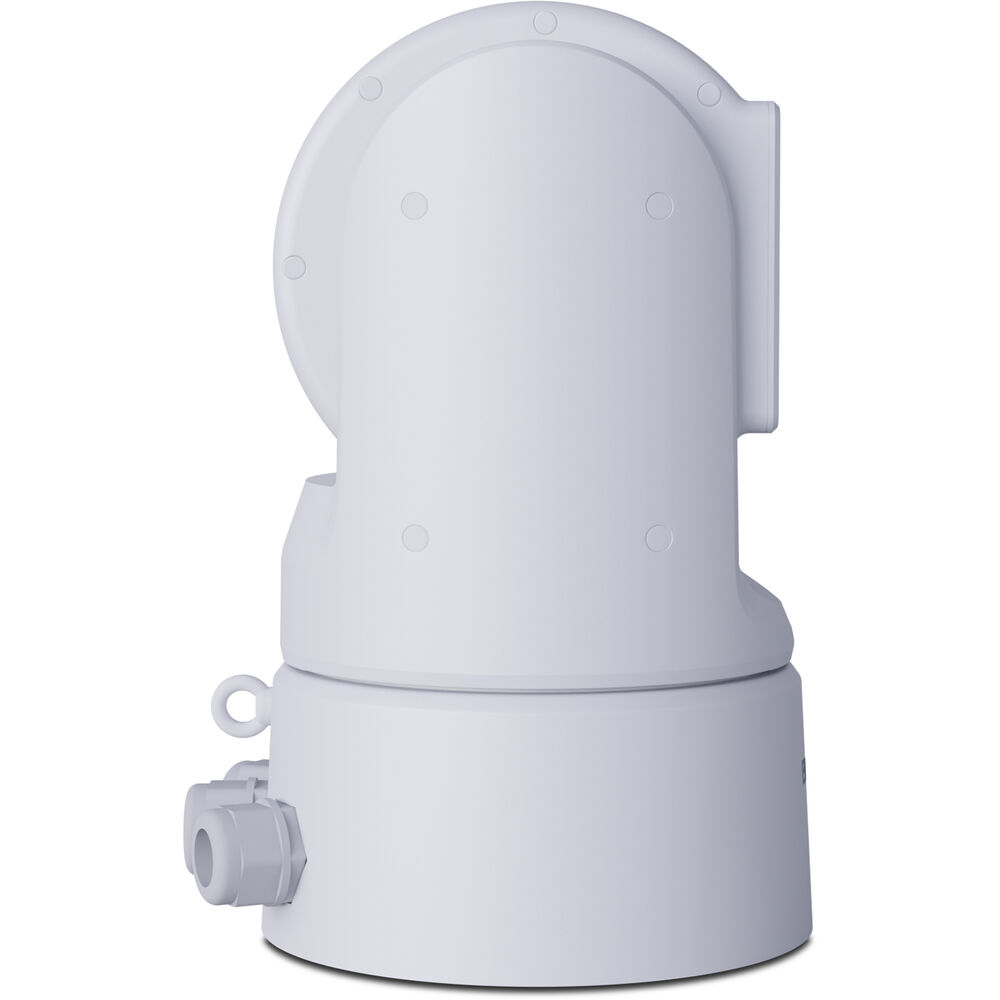

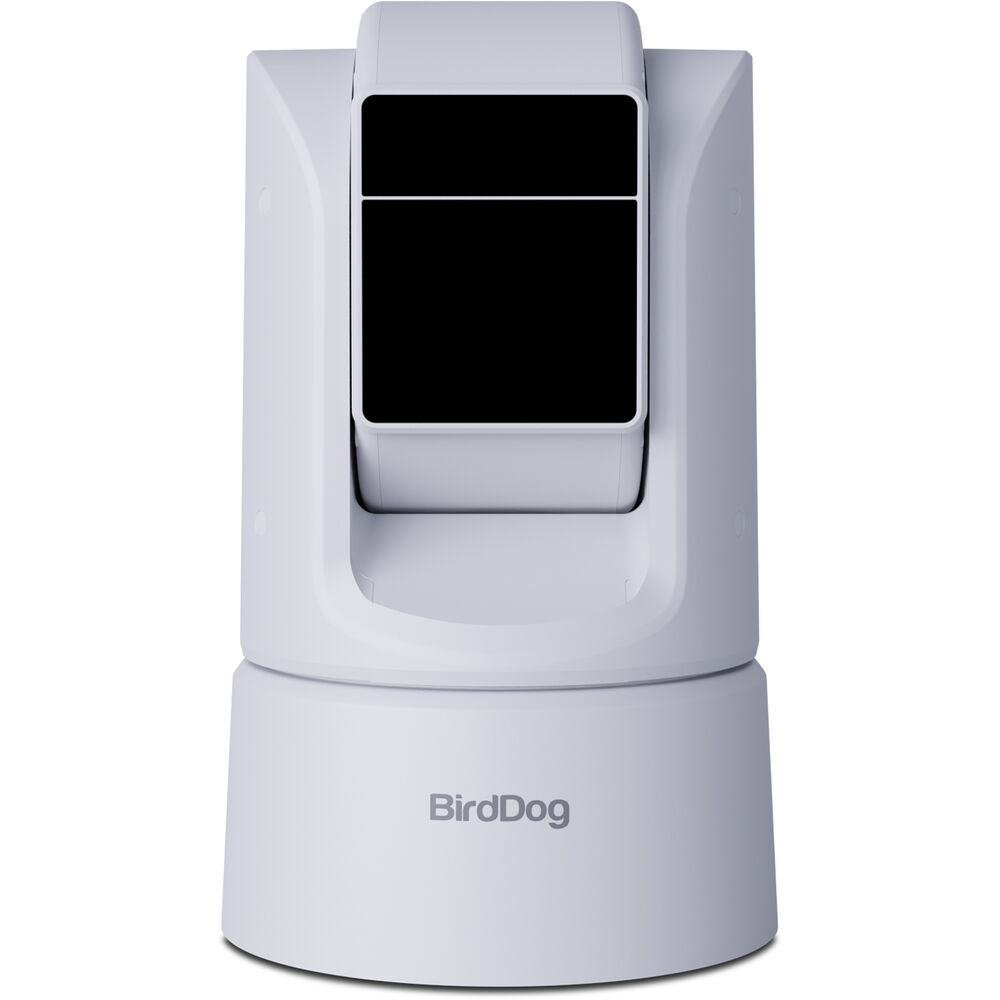

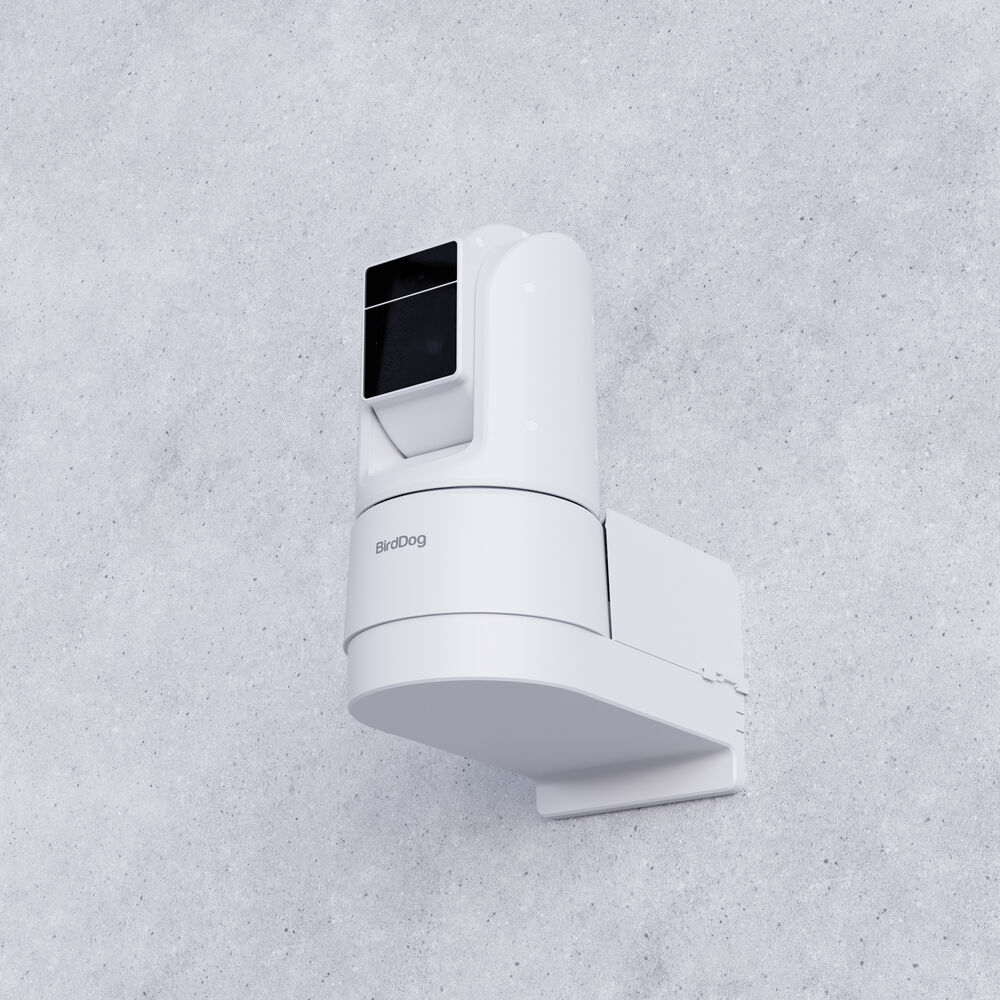

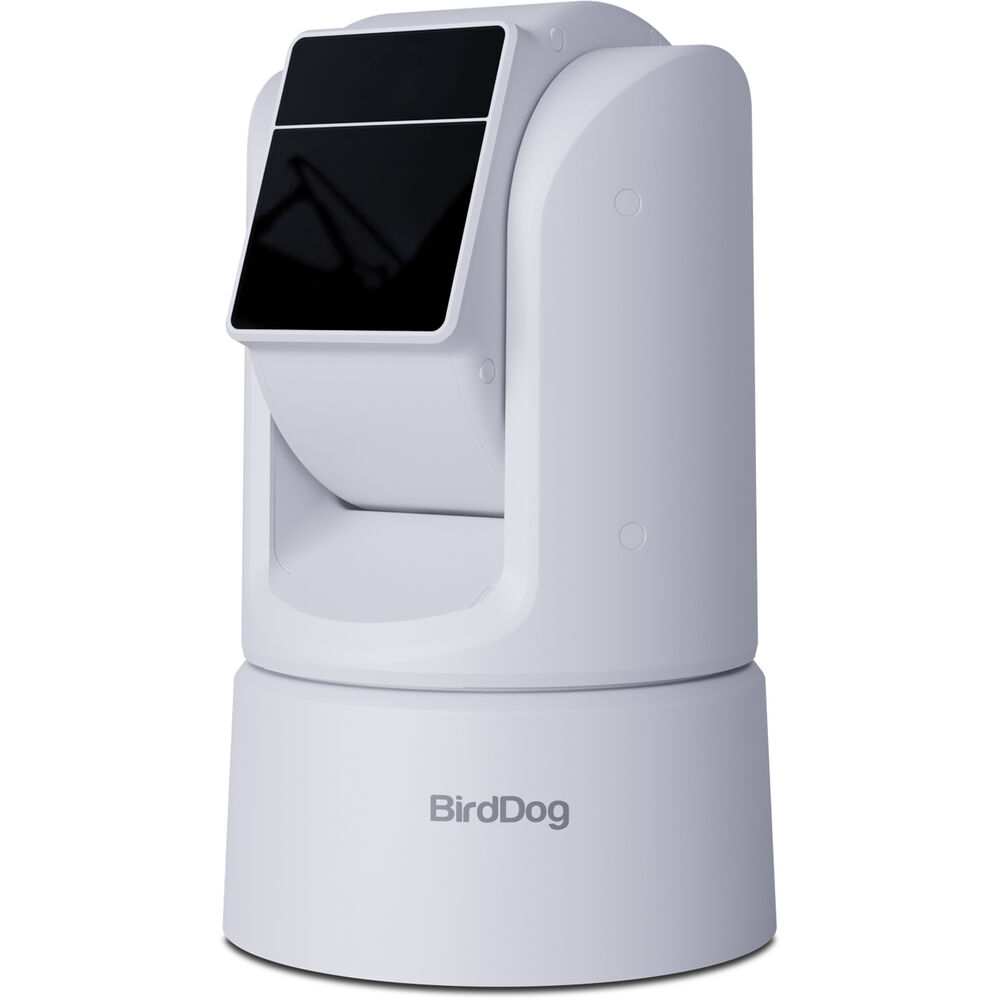

Capture vibrant 4K images outdoors, in any kind of weather, with the O4 Outdoor PTZ Camera from BirdDog. Boasting a diecast, IP66-rated body, the camera works in extreme temperatures, ranging from -40 to 140°F, and features an IR laser for true night vision image capture. Equipped with a 1/1.8" 8.4MP CMOS sensor and a 30x optical zoom lens, the O4 also offers built-in NDI HX3 support, an integrated heater, and 12G-SDI, SFP+ fiber, and HDMI connectivity. It supports PoE++ (Power over Ethernet) for installation simplicity and limited cable clutter.

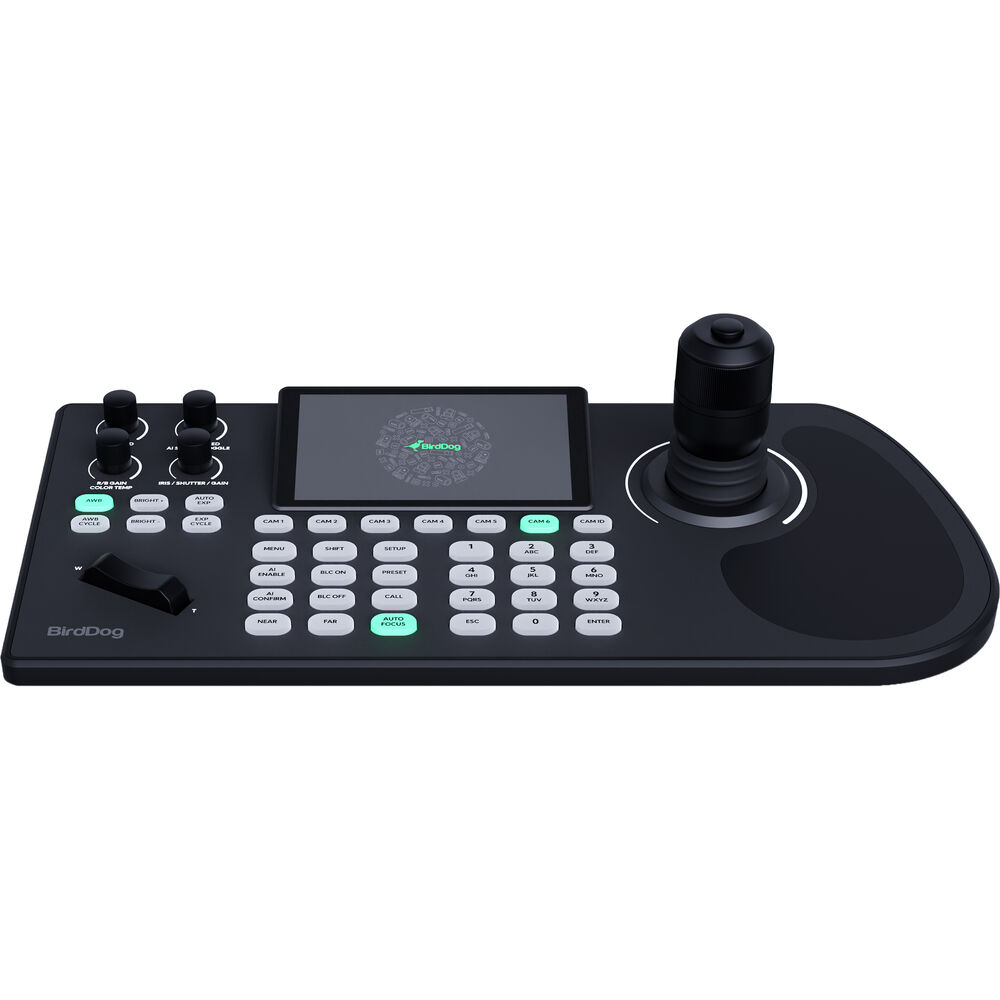

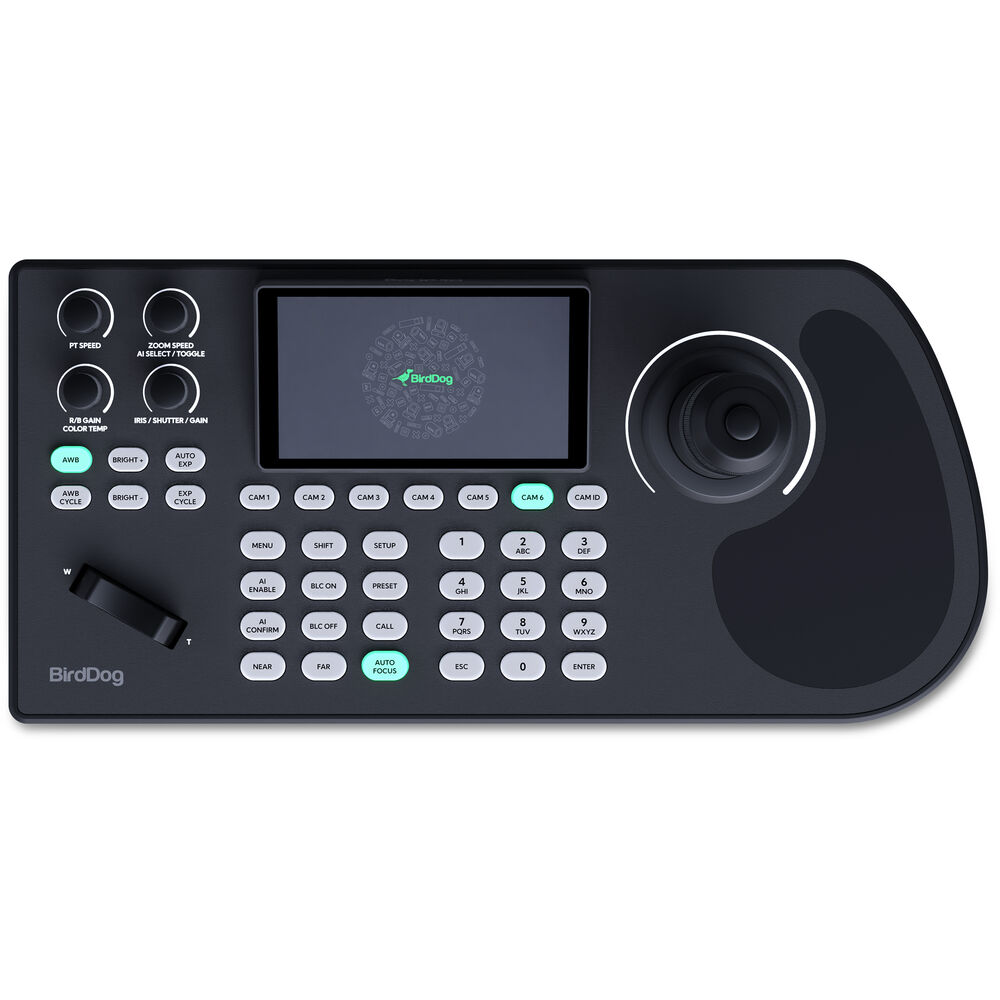

Control your PTZ multicamera setup and monitor up to four cameras simultaneously with the KBD PTZ Controller with Integrated Screen from BirdDog. Built with ocean-bound plastics and recyclable aircraft-grade aluminum, the KDP boasts a rugged, ergonomic design with a large 1280 x 720 display to allow you to quickly pair and switch cameras with a single keystroke.
The new Effortless Camera Settings Sync function enables you to easily copy settings from one X-series device to another, and the integrated tally borders facilitate live switching with optional TriCaster or vMix platforms. The KDP offers NDI|HX2 and NDI|HX3 support as well as VISCA-IP, ONVIF, RS-232, and RS-422 for smooth workflow versatility. Balancing power, operational comfort, and eco-friendly innovation, the KDP is the ideal companion for studio production, live events, and mobile program acquisition applications.
| Image Sensor | 1/1.8"-Type |
| Effective Sensor Resolution | 8.4 Megapixel |
| Max Optical Zoom | 30x |
| Max Digital Zoom | 8x |
| Max Video Output | via HDMI / RJ45 / SDI/BNC Up to UHD 4K at 25/29.97/30.00/50/59.94/60.00 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control IP/NDI/VISCA |
| IP Streaming | Dante AV-H/NDI/NDI HX2/NDI HX3/RTMP/RTSP/SRT 3840 x 2160 |
| Wireless | No |
| PoE Support | Yes: PoE++ 802.3bt |
| Image Sensor | 1/1.8"-Type CMOS |
| Horizontal Resolution (TV Lines) | 2160 TV Lines |
| Sensor Resolution | 8.4 Megapixel |
| IR Cut Filter | No |
| Focus Control | Autofocus Manual Focus |
| Precise Scan Rate Control | No |
| Signal-to-Noise Ratio | 50 dB |
| White Balance | Presets: Auto, Color Temperature, Indoors, Manual, One Push, Outdoors |
| Focal Length | 6.9 to 215mm |
| Max Optical Zoom | 30x |
| Max Digital Zoom | 8x |
| Field of View | Horizontal: 60 to 2° Vertical: 34 to 1.1° Diagonal: 67 to 2.3° |
| Maximum Aperture | f/1.35 to 4.6 |
| Video Output | via HDMI / RJ45 / SDI/BNC 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00 fps |
| Internal Recording | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control IP/NDI/VISCA |
| IP Streaming | Dante AV-H/NDI/NDI HX2/NDI HX3/RTMP/RTSP/SRT 3840 x 2160 |
| Presets | 255 |
| Pan/Tilt/Roll | Pan: 170° (-30 to 90°) at 0.05 to 90°/s Tilt: 170° (-30 to 90°) at 0.05 to 90°/s |
| Wireless | No |

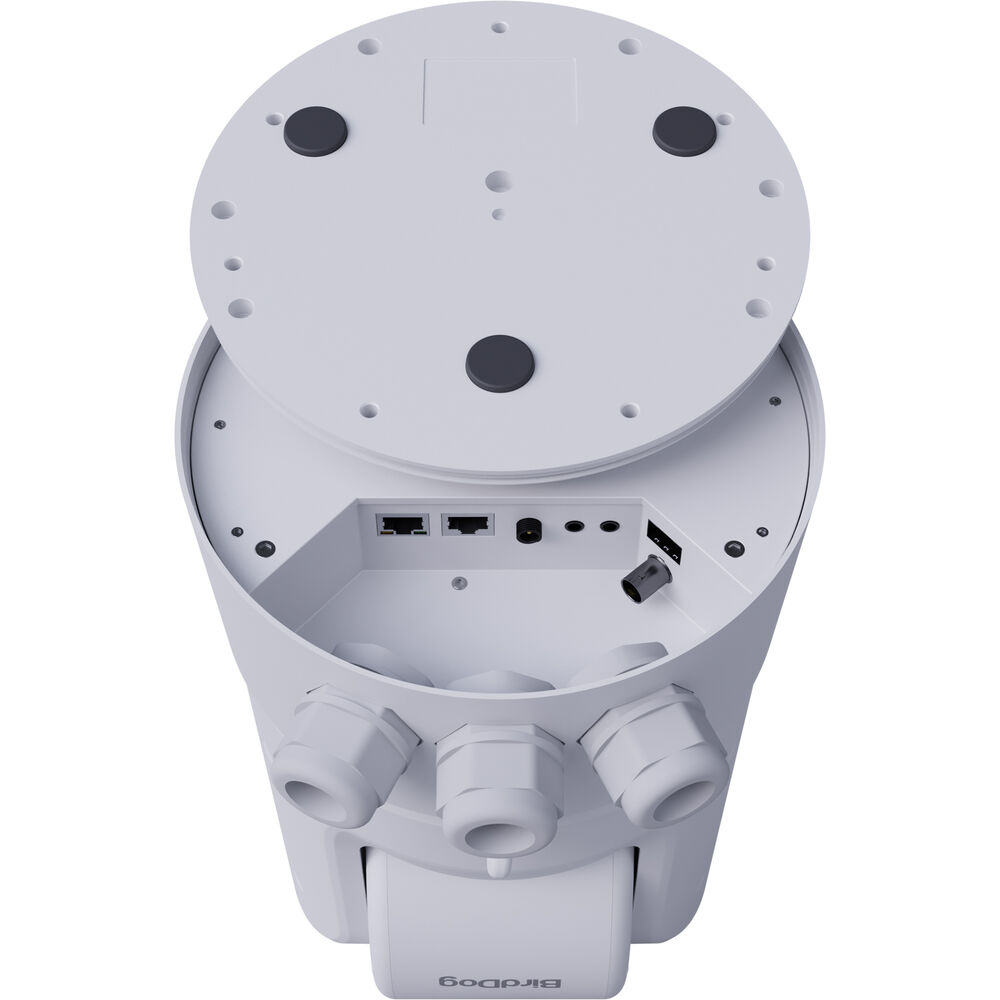

| Video I/O | 1x BNC (12G-SDI) Output 1x RJ45 Output |
| Audio I/O | 1x 1/4" TRS Unbalanced Stereo Input/Output |
| Other I/O | 1x SFP (Gigabit Ethernet) 1x RJ45 (Gigabit Ethernet) (Shared with Power Input) |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE++ 802.3bt |
| Power I/O | 1x DC (24VDC at 2.1 A) |
| Power Consumption | 40 W |
| Operating Conditions | -40 to 140°F / -40 to 60°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Dimensions (W x H x D) | 7.9 x 13 x 8.9" / 200 x 330 x 226 mm |
| Weight | 17 lb / 7.6 kg (Body Only) |
| Package Weight | 20.865 lb |
| Box Dimensions (LxWxH) | 18.4 x 13.5 x 12.1" |
