Description

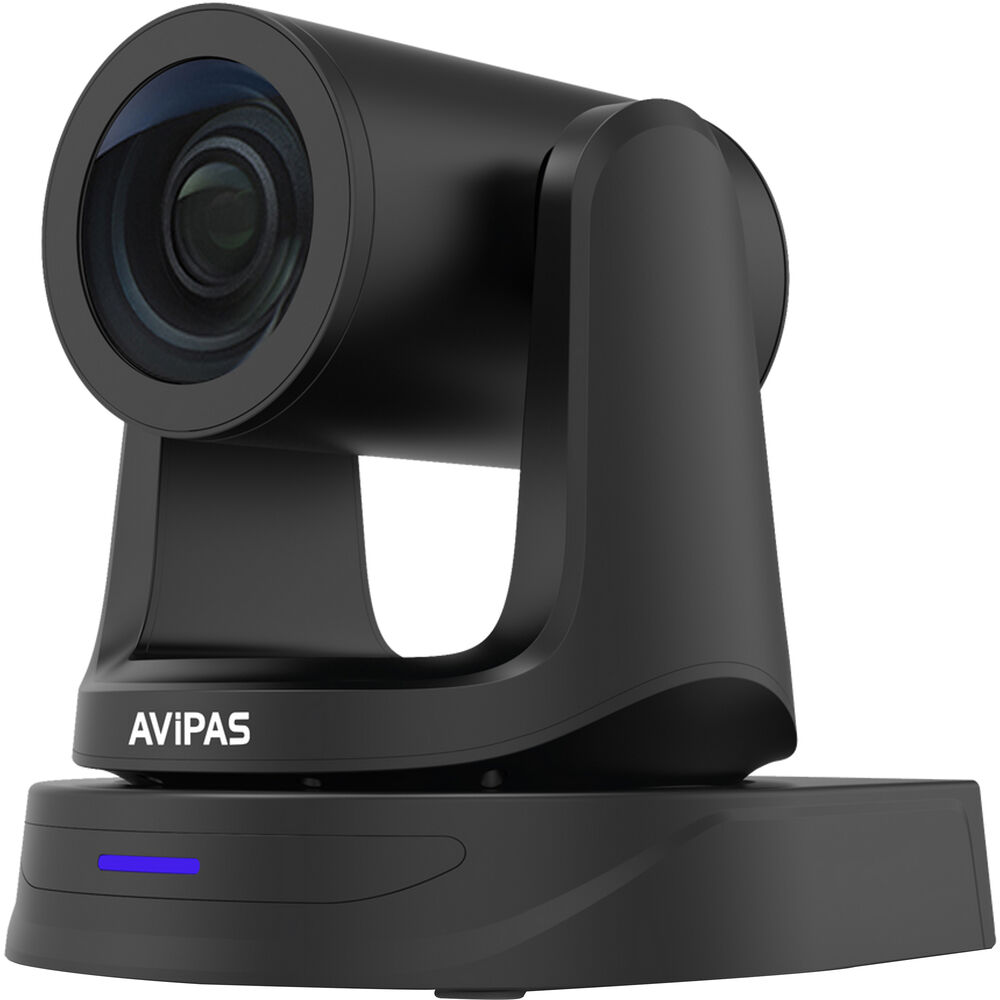

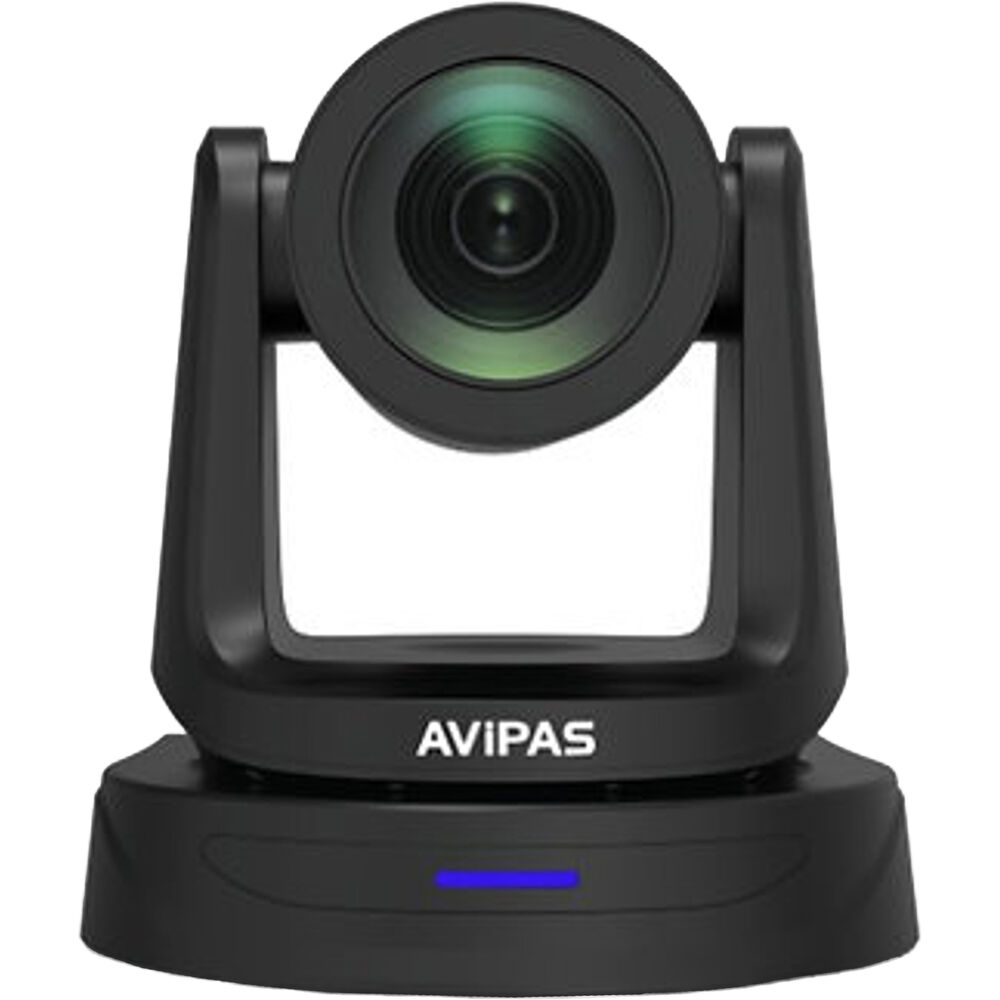

Easily integrate sharp HD video into your video conferencing, educational, house-of-worship, or broadcasting application using the black AV-2025 20x Zoom HDMI/USB PTZ Camera with PoE and 20x Zoom from AViPAS. This remotely controllable PTZ camera supports up to 1080p60 resolution via simultaneous HDMI, USB-C, and IP streaming. It features 20x optical and 2x digital zoom, PoE, a 60 to 3.23° angle of view, ±170° pan, ±90° tilt, auto or manual focus, wide dynamic range, and serial/IP control.
| Image Sensor | 1/2.8"-Type |
| Effective Sensor Resolution | 2.4 Megapixel |
| Shutter Speed | 1/10000 to 1/30 Second |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 2x |
| Max Video Output | via HDMI Up to 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps via USB Up to 1080p at 5/10/15/20/25/30.00 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control VISCA/RS-232/Pelco-D/RS-485/Pelco-P/IP |
| Wireless | No |
| PoE Support | Yes: PoE 802.3af |
| Mounting | 2x 1/4"-20 Female |
| Image Sensor | 1/2.8"-Type CMOS |
| Effective Sensor Resolution | 2.4 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/30 Second |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.1 Lux at f/1.5 Aperture |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors Range: 1800 to 10,000K |
| Focal Length | 4.9 to 98mm |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 2x |
| Field of View | Horizontal: 60 to 3.23° |
| Maximum Aperture | f/1.5 to 3 |
| Video Output | via HDMI 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps via USB 1920 x 1080p at 5/10/15/20/25/30.00 fps 1280 x 720 at 10/15/25/30.00/50/60.00 fps 720 x 576 at 5/10/15/20/25/30.00 fps 640 x 480 at 5/10/15/20/25/30.00 fps 320 x 240 at 5/10/15/20/25/30.00 fps |
| Embedded Audio | IP: 2-Channel |
| Internal Recording | No |
| Audio Recording | AAC Audio LPCM Audio |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control VISCA/RS-232/Pelco-D/RS-485/Pelco-P/IP |
| Presets | 128 via IP, RS-232 10 via IR |
| Tally Light | Yes |
| Wireless | No |

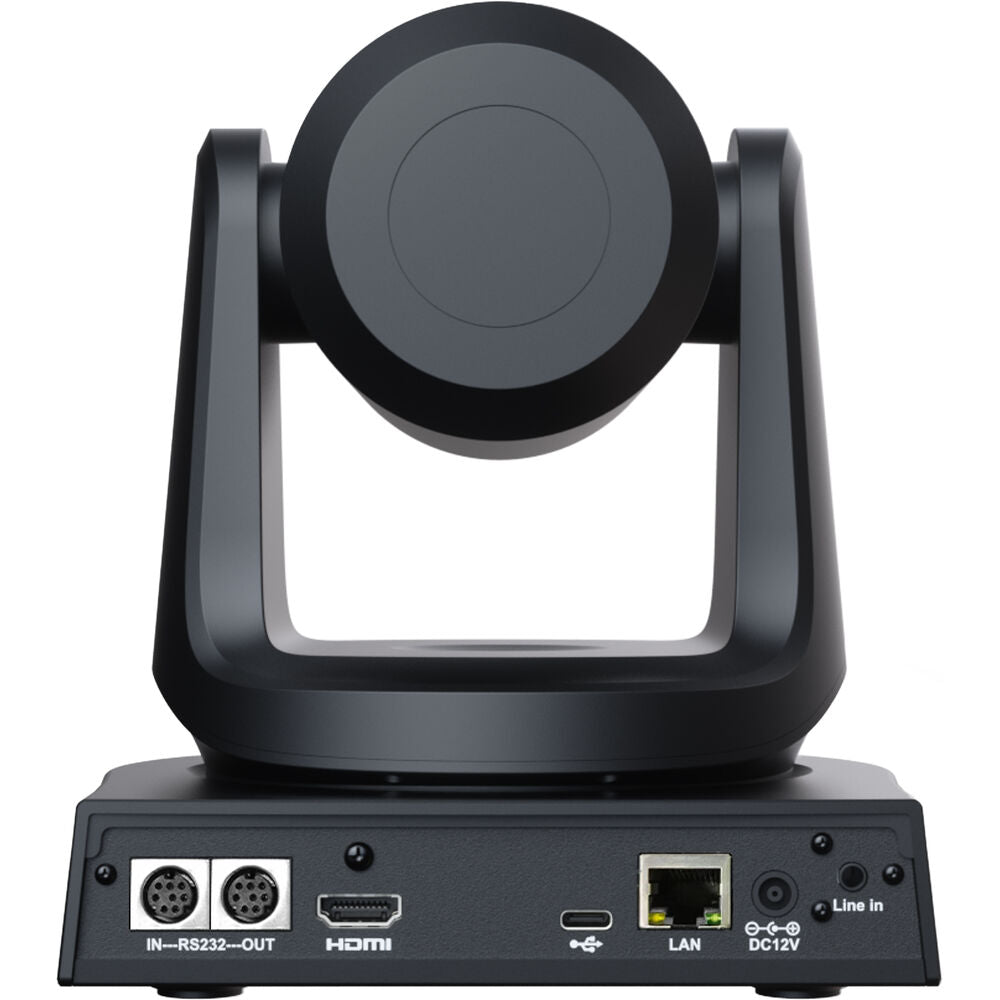

| Video I/O | 1x HDMI 1.4 Output 1x RJ45 LAN Output 1x USB-C 2.0 Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1x Mini-DIN 8-Pin (RS-232, RS-485) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output 1x USB-C Control (Shared with Video Output) |
| Built-In Microphone | No |
| PoE Support | Yes: PoE 802.3af |
| Power I/O | 1x Barrel (12VDC at 1 A) Input |
| Power Consumption | 13 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
| Storage Conditions | 14 to 122°F / -10 to 50°C at 20 to 95% Humidity |
| Mounting | 2x 1/4"-20 Female |
| Dimensions (W x H x D) | 7.1 x 6.6 x 6.6" / 180 x 168 x 167.5 mm |
| Weight | 3.1 lb / 1.4 kg (Body Only) |
| Package Weight | 6.42 lb |
| Box Dimensions (LxWxH) | 11.8 x 11.1 x 10.8" |
